F.17Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY

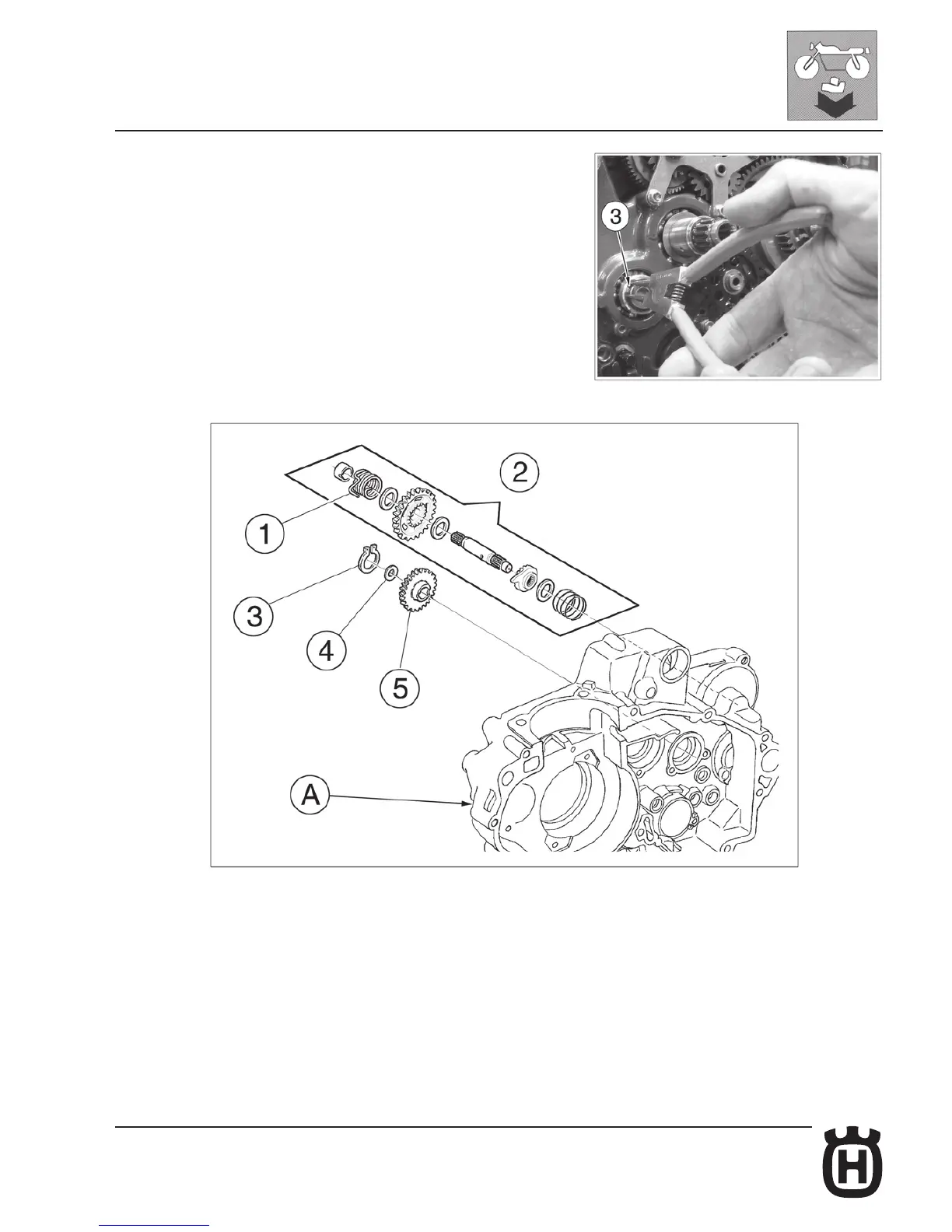

Kick start components disassembly (TC-TE-TXC)
Release spring (1) from seat on crankcase (A) and remove kick starter shaft
assy (2). Remove circlip (3), washer (4) and starting idle gear (5).
