D.34 Part. N. 8000 B0148 (02-2008)
SETTINGS AND ADJUSTMENTS

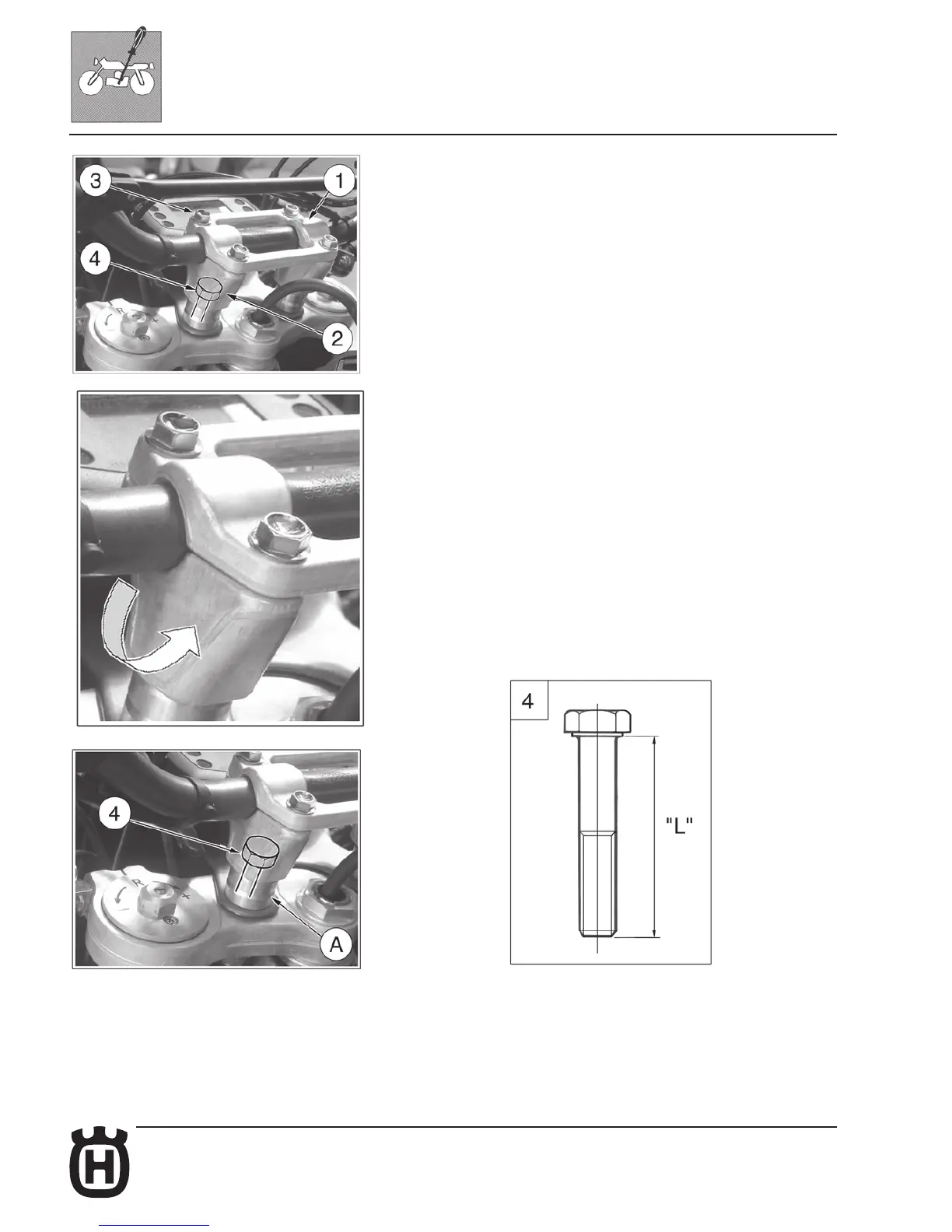

Handlebar position and height change (TE-TC-TXC-SMR)
The handlebar position (a) and height (b) can be changed for better suiting Your
driving requirements. To effect these operations, remove the upper screw (3),
upper clamp (1), lower screw (4) then lower clamp (2).
a) Handlebar position change
Turn the lower clamp (2) 180° to move forward or backward (10 mm- 0.04in.) the
handlebar position with respect to the original setup.
b) Handlebar height change
Remove the lower spacer (A) then replace the screw (4) with a new one of L=65
mm (2.56 in.) height.
Once these operations are completed, tighten the screws (3) to 2,75-3,05 kgm
(27-30 Nm; 19.9-22 Lb/fts) and the screws (4) to 2,0-2,2 kgm (19,6-21,6 Nm; 14.5-
15.9 Lb/fts).
