Husqvarna TE 250 Workshop Manual

G.3Part. N. 8000 B0148 (02-2008)
ENGINE OVERHAULING
INTAKE
EXHAUST
ø 250 450-510
30,10÷30,15 mm 36,60÷36,65 mm
B
1,185÷1,187 in. 1,441÷1,443 in.
27 mm 33 mm
C
1,063 in. 1,299 in.
24,60÷24,65 mm 30,60÷30,65 mm
B
0,968÷0,970 in. 1,205÷1,207 in.
21,5 mm 27,5 mm
C
0,846 in. 1,083 in.

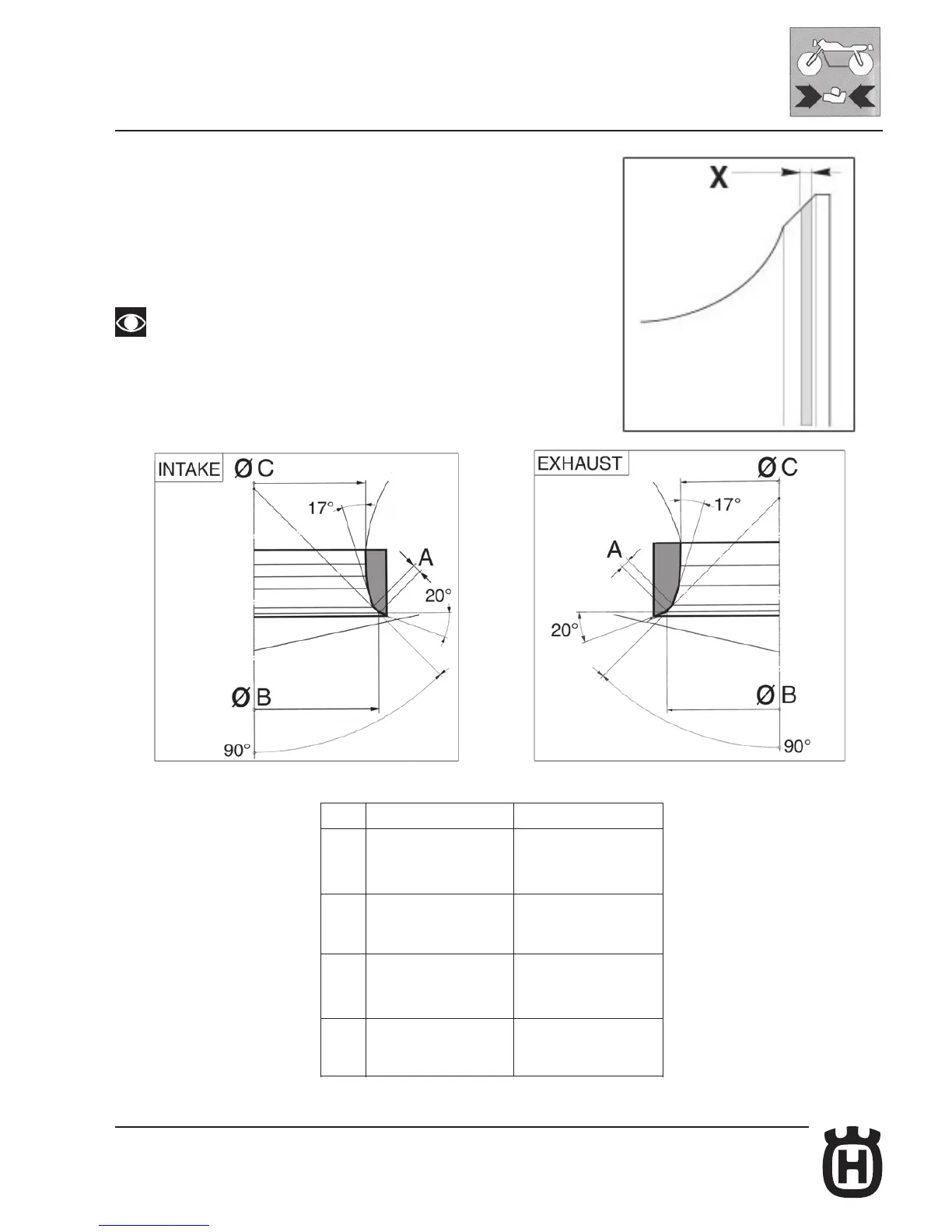

Recutting the valve seats
Clean carbon and deposits from the valves. Apply some “Prussian blue” to the
valve face and lap it against the seat with a suitable lapping tool. Remove the
valve and measure the width “X” of the contact surface. If the width exceeds
0.06 in. the seat should be recut.
Standard width of the contact surface is:
A = 0.0354÷0.0433 in. for the INTAKE
A = 0,0354÷0,0394 in. for the EXHAUST.
The valve can not be ground. If the valve is damaged replace the
valve.
