Husqvarna TE 250 Workshop Manual

E.23Part. N. 8000 B0148 (02-2008)
GENERAL OPERATIONS

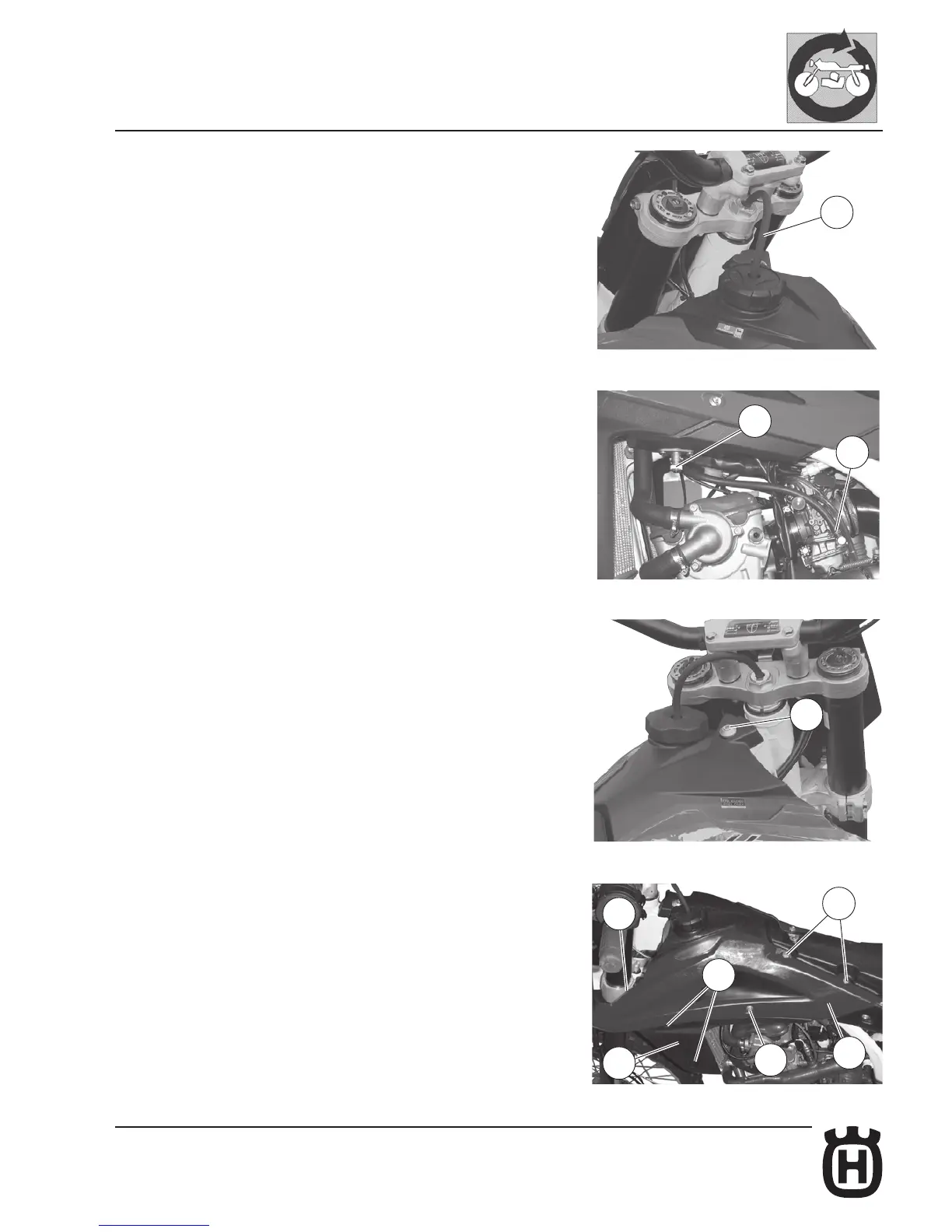

Removal of fuel tank, conveyors and spoiler
Remove the saddle as described on page E.15.
TC-TXC-SMR 450 R
Remove the vent pipe (1) from the steering pin. Turn the ring nut of the fuel tap
(2) anticlockwise to stop fuel flowing and loosen the clamp (3) on the carburettor
fuel pipe; remove this pipe from the carburettor and pour the remaining fuel into
a container.
Loosen the fastening screws (6) of the fuel tank. Remove the screws (4) holding
conveyors to the tank; remove the conveyors (7), the screws (5) holding spoilers
(8) to radiators. Remove the spoilers and extract the tank.
2
3
1
6
4
7
4
4
5
8
