Husqvarna TE 250 Workshop Manual

M.10 Part. N. 8000 B0148 (02-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

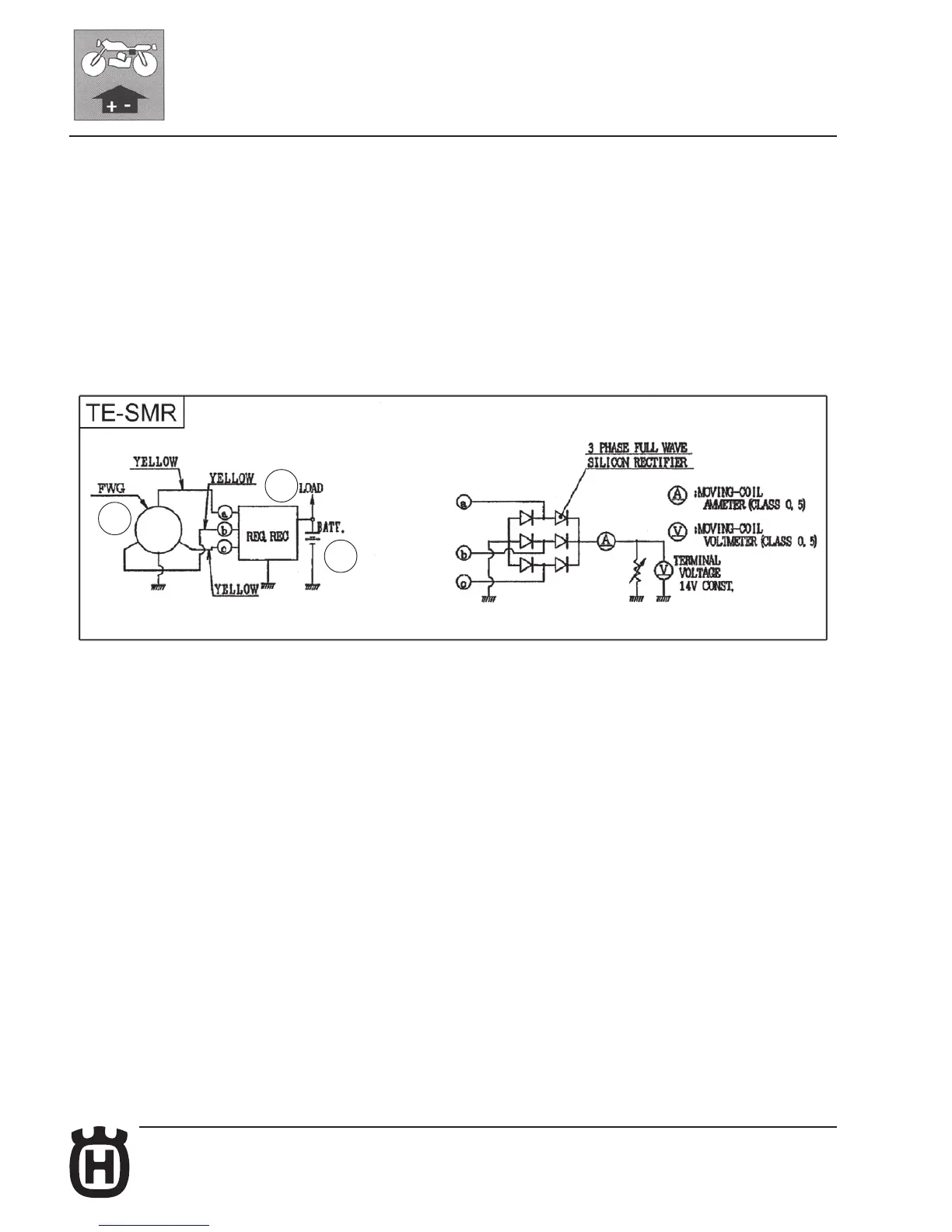

CHARGING SYSTEM WIRING DIAGRAM
CHARGING SYSTEM (TE-SMR)
The charging system consists of:
- Alternator (2);
- Voltage regulator-rectifier (3);
- Battery (5).
The AC current produced by the alternator is converted by the
regulator-rectifier into DC current.
The regulator-rectifier prevents overcharging of the battery and
changes the AC current to the DC current.
All these components maintain a constant voltage and prevent the
battery from overcharging.
CHARGING SYSTEM (TC-TXC-SMR 450-R)
The charging system consists of:
- Alternator (2);
- Voltage regulator-rectifier (3);
- Condenser (4) (TC-TXC);
- Battery (5).
The AC current produced by the alternator is converted by the
regulator-rectifier into DC current.
The regulator-rectifier prevents overcharging of the battery and
changes the AC current to the DC current.
All these components maintain a constant voltage and prevent the
battery from overcharging.
3
5
2

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
