Husqvarna TE 250 Workshop Manual

D.8 Part. N. 8000 B0148 (02-2008)
SETTINGS AND ADJUSTMENTS
SMR 450-R
7

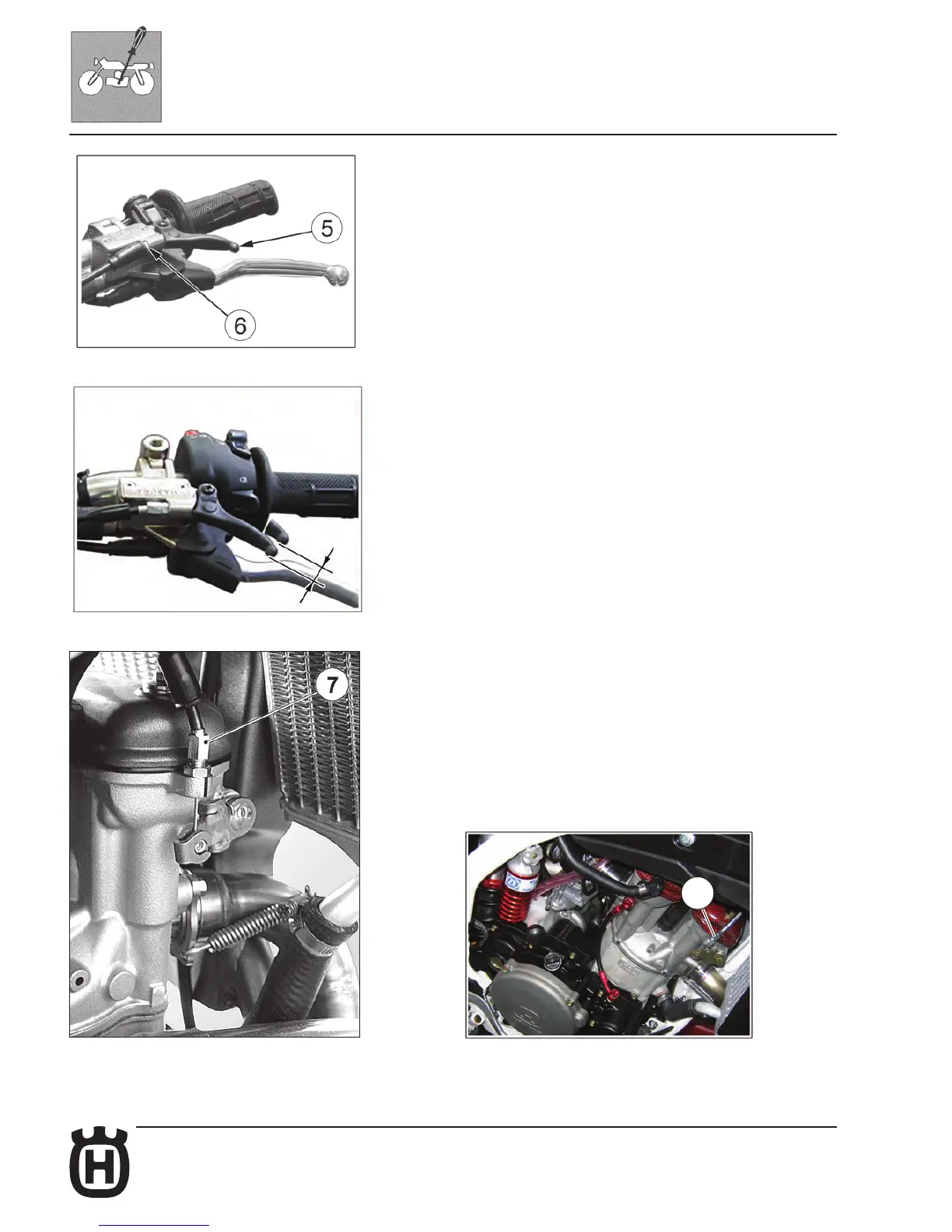

Adjustment of starter decompression device
In order to adjust the lever decompressor free play (approximately 3 mm - 0.12
in.): should the clearance be incorrect, unblock the counter ring-nut and turn the
adjusting screw (by unscrewing it, the clearance is reduced, while by screwing
screw it is increased); the lever holder (5) is provided with the adjuster (6); the
adjustment can be also effected with the tightener (7) on the R.H. side of the
engine (use this tightener if it is not possible to obtain the correct free play with
the adjuster on the handlebar).

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
