ENGINE DISASSEMBLY

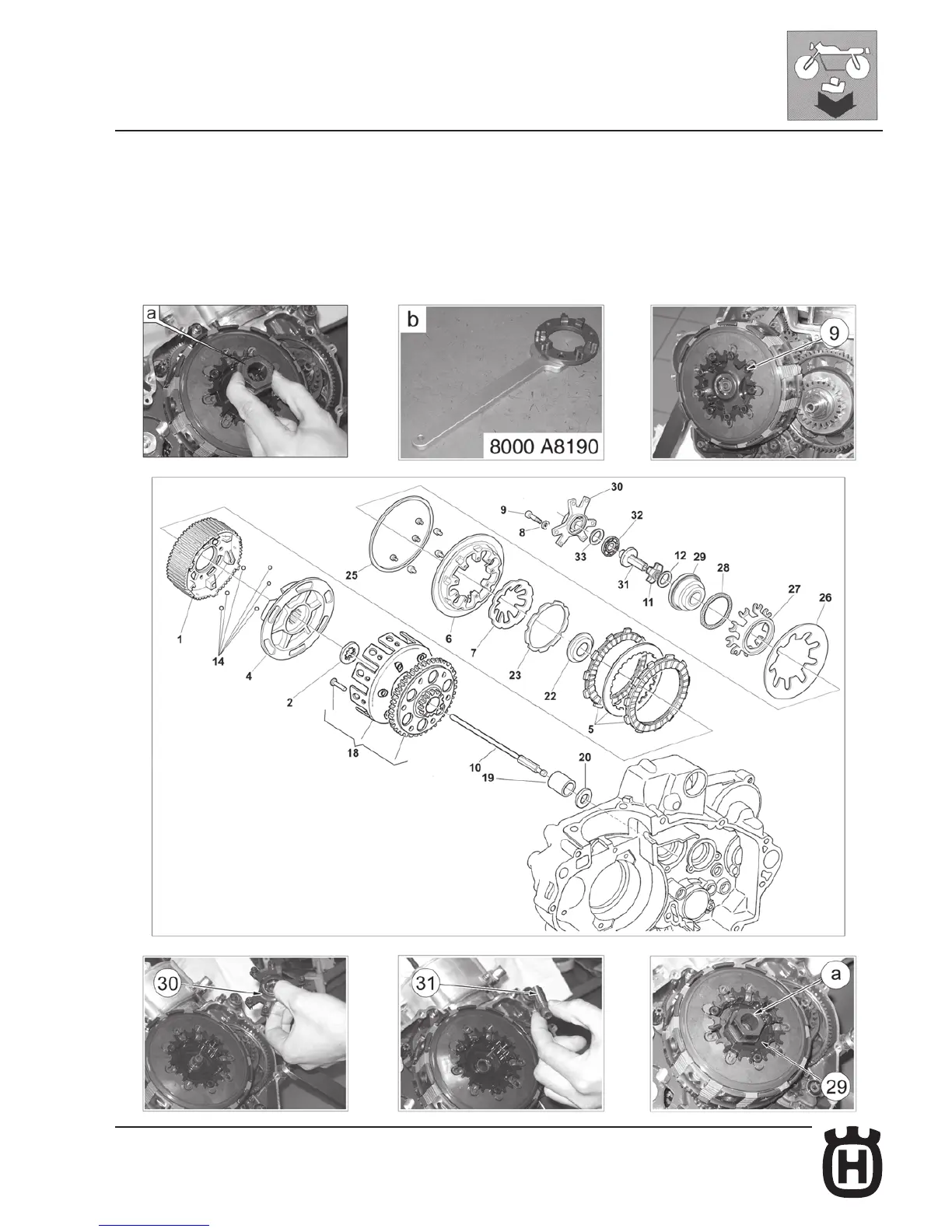

Clutch disassembly (SMR 450-R)
Use a 4 mm hex wrench to loosen the six screws 9) and their notched washers (8) and remove the support (30) along with the washer
(33) and the thrust bearing (32) Remove the clutch control pin (31), the nut (11) and the washer (12). Insert the tool provided (a) in the
seat on the hub (29). Use a 27 mm wrench (c) and the tool (b) no. 8000 A8190 to remove the hub (29). Remove the thrust bearing (28),
the spring retainer plate (27) and the spring (26).
Remove the pressure plate (6) along with the shim (25), the clutch spring (7), the toothed washer (23) and the drum stop hub (22). Use
an M6x15mm screw (A) to fix the clutch drum (1) on the hub (4) in order to prevent balls (14) from escaping and extract the disc assembly
(5) and the complete clutch drum (B). Extract the clutch control rod (10). Remove the toothed washer (2), the clutch housing (18), the
bushing (19) and the shim (20).
