ELECTRIC SYSTEM, DIGITAL INSTRUMENT
1
2

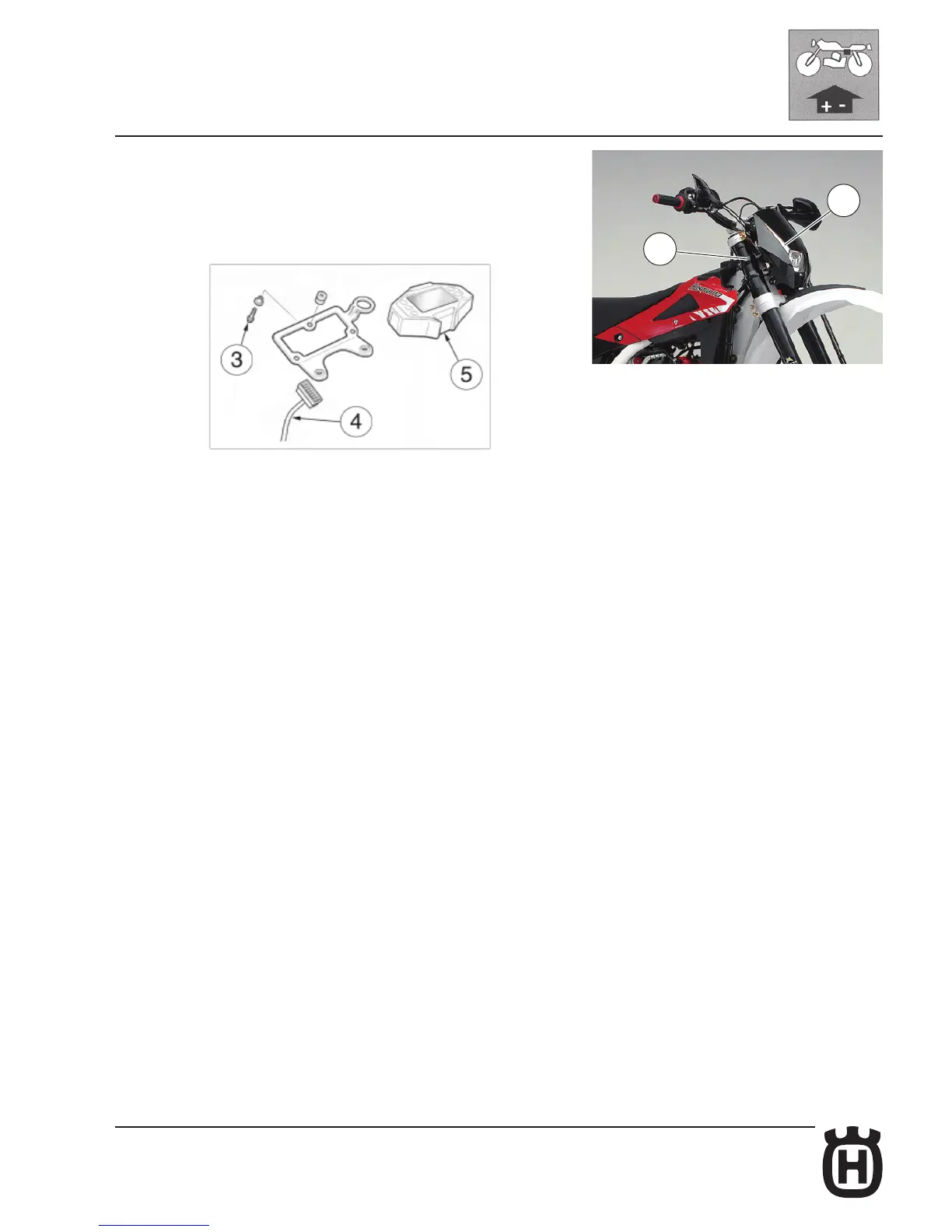

Instrument replacement (TE-SMR)
Remove the four elastic (1) and remove the headlamp holder (2);
Remove the three fastening screws (3), deconnect the connector (4) and remove
the instrument (5).
Reassemble the instrument in the reverse order that was shown for disassembling.
LOCATING OPERATING TROUBLES
CHARGING SYSTEM
Fast battery discharging:
1) current leakage (see page M.12);
2) incorrect voltage (see page M.12);
3) generator: no continuity (see page M.12);
4) incorrect generator no-load voltage performances (see page M.14);
5) faulty voltage regulator (see page M.15)
Battery overloading:
1) faulty voltage regulator (see page M.15);
2) faulty battery (see page M.12).
STARTER SYSTEM
Starting motor don't start:
1) faulty electric start remote control switch (see page M.18);
2) loosened starting motor cable;
3) faulty starting motor (see page M.17);
4) discharged battery (see page M.29).
ELECTRONIC IGNITION SYSTEM
Weak Ignition spark or no ignition spark:
1) incorrect main wiring harness connections;
2) faulty spark plug or incorrect spark plug heat range or incorrect spark plug gap (see page M. 26);
3) faulty ignition coil (see page M.22);
4) faulty spark plug cap (see page M.22).
