SETTINGS AND ADJUSTMENTS
Part. N. 8000 B0148 (02-2008) D.29

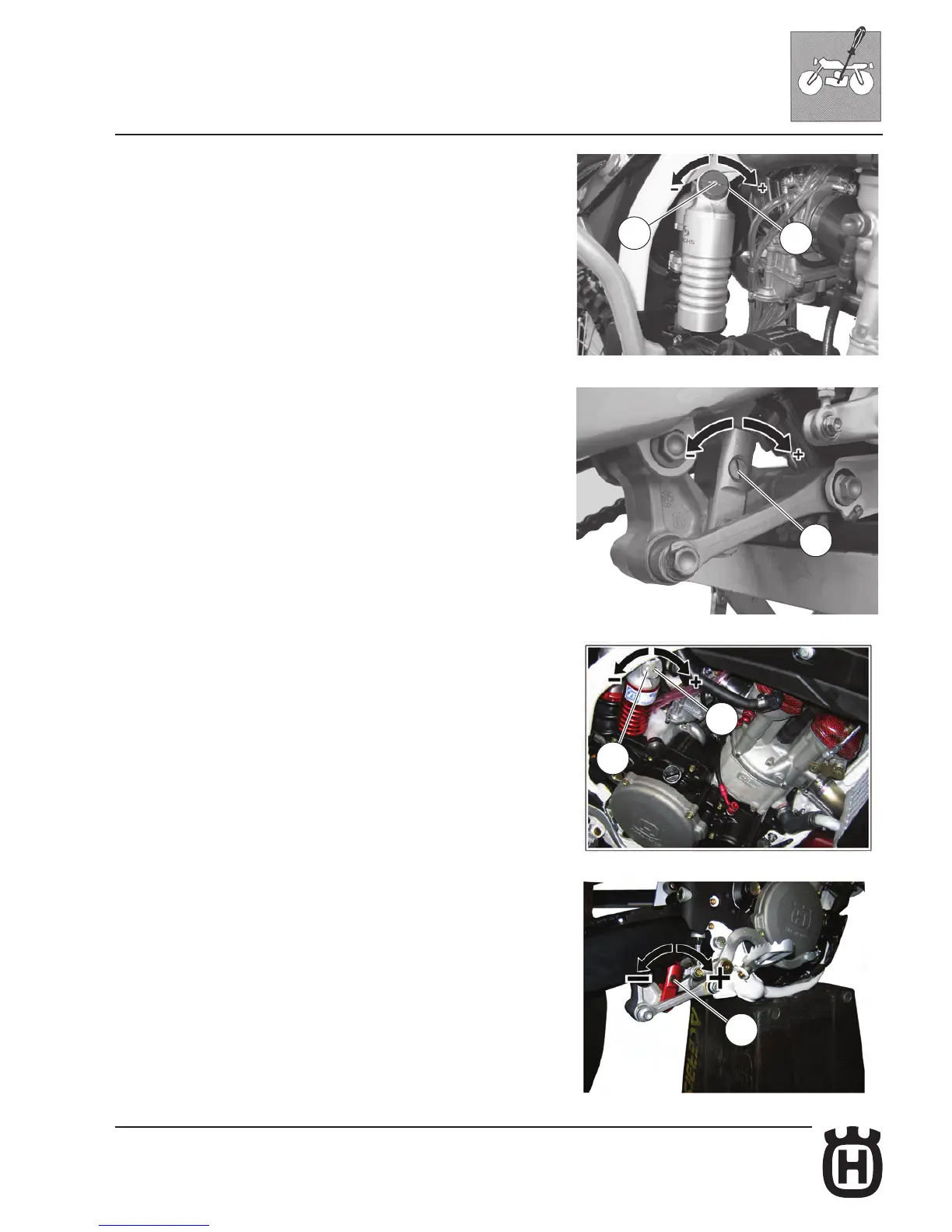

Shock absorber hydraulic brake adjustment
Adjustment of the compression stroke is independent from the rebound stroke.
A) COMPRESSION - Standard calibration:
1) Low damping speed:
-15 clicks (± 2 clicks)
(adjuster 1)
2) High damping speed:
-15 clicks (± 2 clicks)
(adjuster 3)
To reset the standard calibration, turn upper adjusters (1) and (3) clockwise
until reaching fully closed position. Return then back for the mentioned clicks.
In order to obtain a smooth braking action, turn the adjusters anticlockwise.
Reverse the operation in order to obtain a harder braking action.
B) EXTENSION - Standard calibration:
-18 clicks (± 2 clicks)
To reset the standard calibration, turn lower adjuster (2) clockwise until reach-
ing fully closed position. Return then back for the mentioned clicks. In order to
obtain a smooth braking action, turn the adjuster anticlockwise. Reverse the
operation in order to obtain a harder braking action.
2
TC-TE-TXC-SMR
TC-TE-TXC-SMR
SMR 450-R
SMR 450-R
1
3
1
3
2
