H.43Part. N. 8000 B0148 (02-2008)

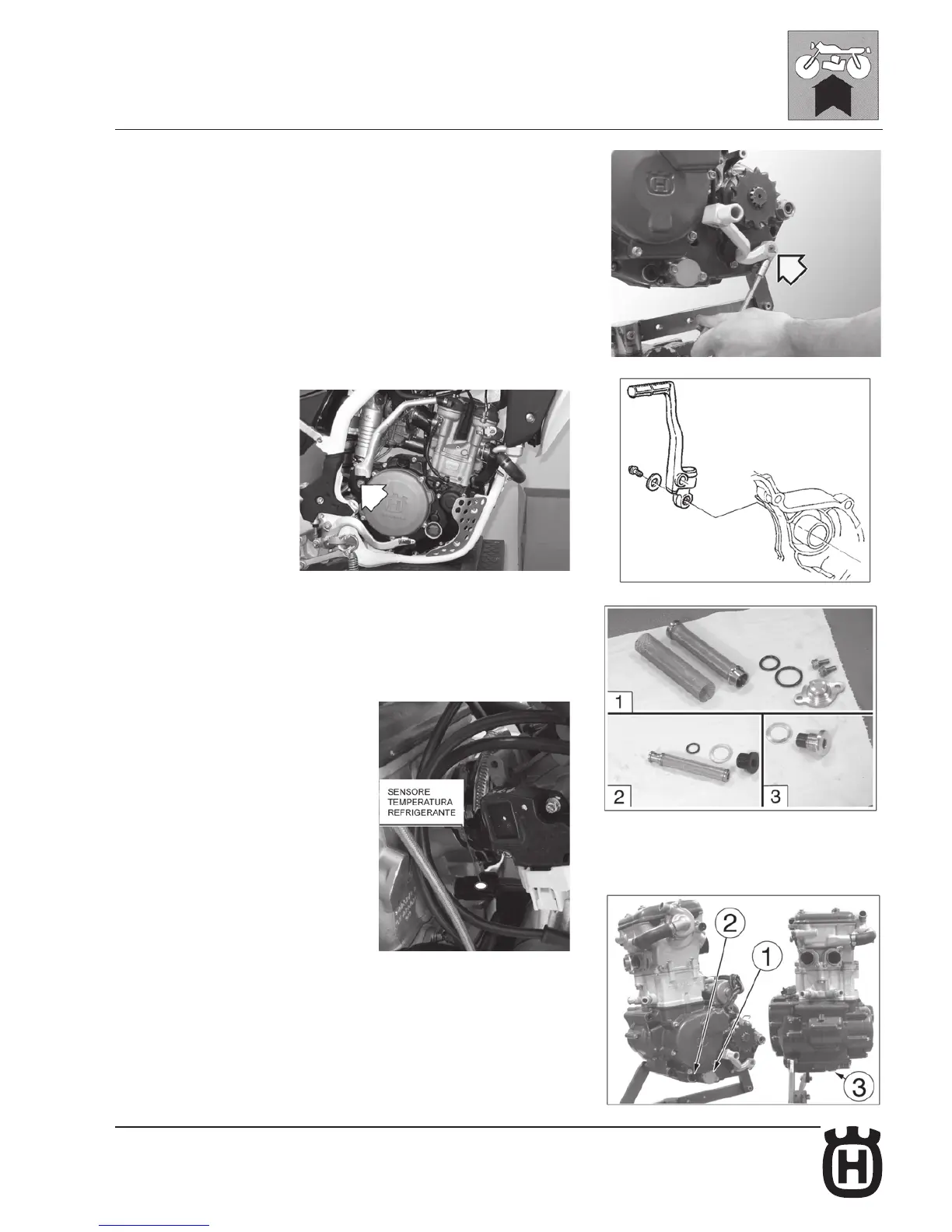

ENGINE REASSEMBLY
Reassembly of gearshift pedal and the kick start pedal
Mount the gearshift pedal (tighten fastening screw to 8 Nm-0,8 Kgm- 5.8 ft/lb).
Check that the control pedal is not damaged. Reassemble kick start pedal (TE-TC-
TXC) (8 Nm-0,8 Kgm-5.8 ft/lb); verify that the start pedal does not touch the
crankcase cover.
Reassembly of the engine oil filters and drain plug
Reassemble, on engine L.H. side, filter (1) (6 Nm-0,6 Kgm-4.3 ft/lb+LOCTITE
243) e (2) (25 Nm-2,55 Kgm-18.4 ft/lb) ed inferiormente il tappo (3) scarico olio
(25 Nm-2,55 Kgm-18.4 ft/lb).
TE-SMR: reassemble the coolant fluid temperature sensor with its O-ring on the
cylinder head.
NOTE
If the throttle body is disassembled, adjusting the T.P.S. again (see page S.6).
