HEADLAMP, TAIL-LAMP (TE-SMR)

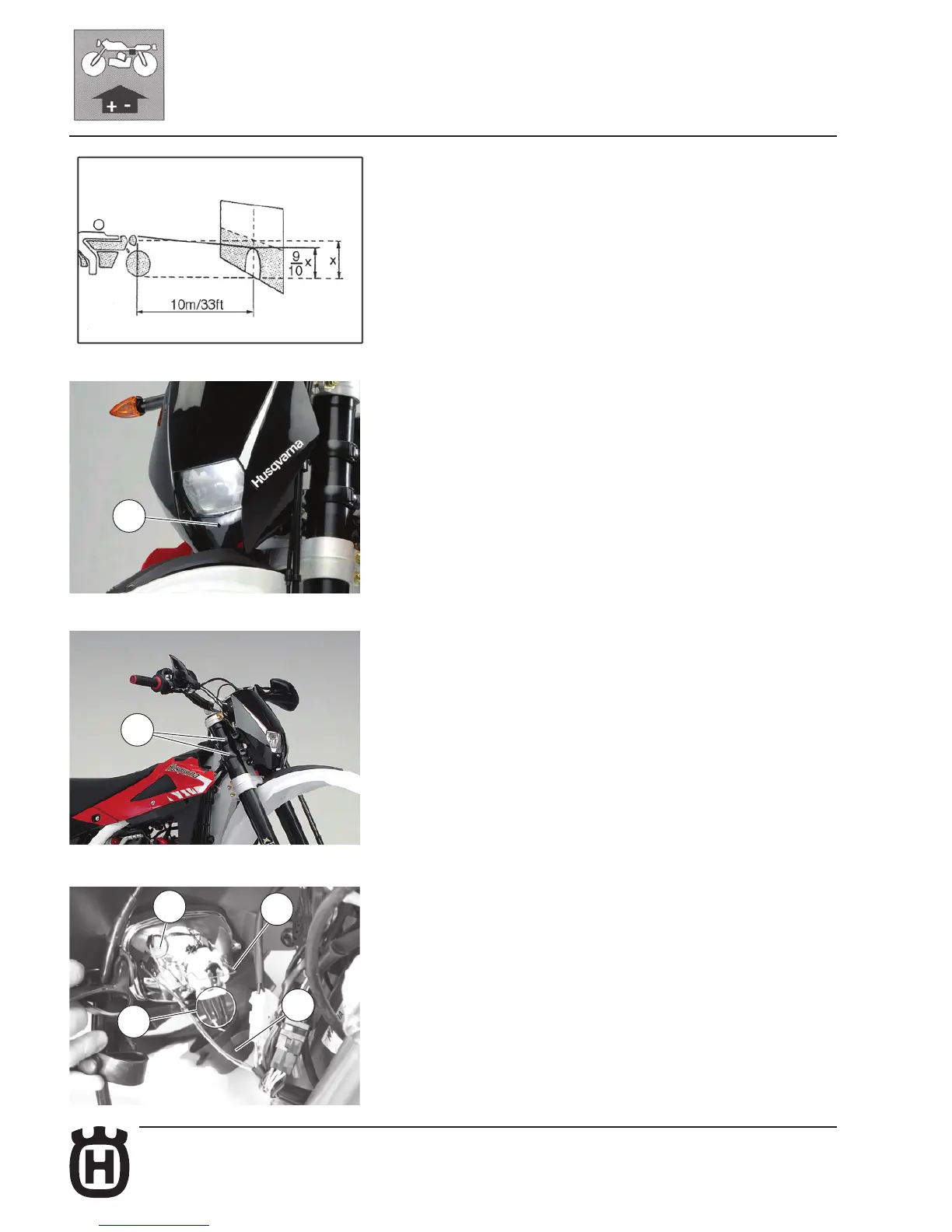

Headlamp adjustment
The front headlamp is fitted a dipping bulb for main and dipped beams and a pilot/
side lamp bulb.
Particular care should be taken to adjust the headlamp beam; adjust as follows:
- position the motorcycle at 33 ft from a flat wall;
- check that the bike is on a level surface and that the headlamp axis is at right
angles to the wall;
- the bike should be in a vertical position;
- measure the distance from the ground to the centre of the headlamp lens and
then mark a cross at the same height on the wall;
- switch on to dipped beam; the upper limit of the beam should be at a height which
is so greater than 9/10 of the height from the ground of the centre of the headlamp.
Adjust the headlamp aiming by turning screw (A) to lower or lift the high beam.
Headlamp bulbs replacement
To gain access to the healamp bulbs, proceed as follows:
- remove the two fastening elastics (1) and the headlamp holder;
- remove the two filaments bulb (12V-35/35W) connector (2) and the boot (3);
- release the bulb holding spring (4) then the bulb itself.
To replace the parking light bulb (5) (12V-3W) extract it from the inside cover. After
replacement, reverse operations for reassembly.
