R.9Part. N. 8000 B0148 (02-2008)
SMR 450-R

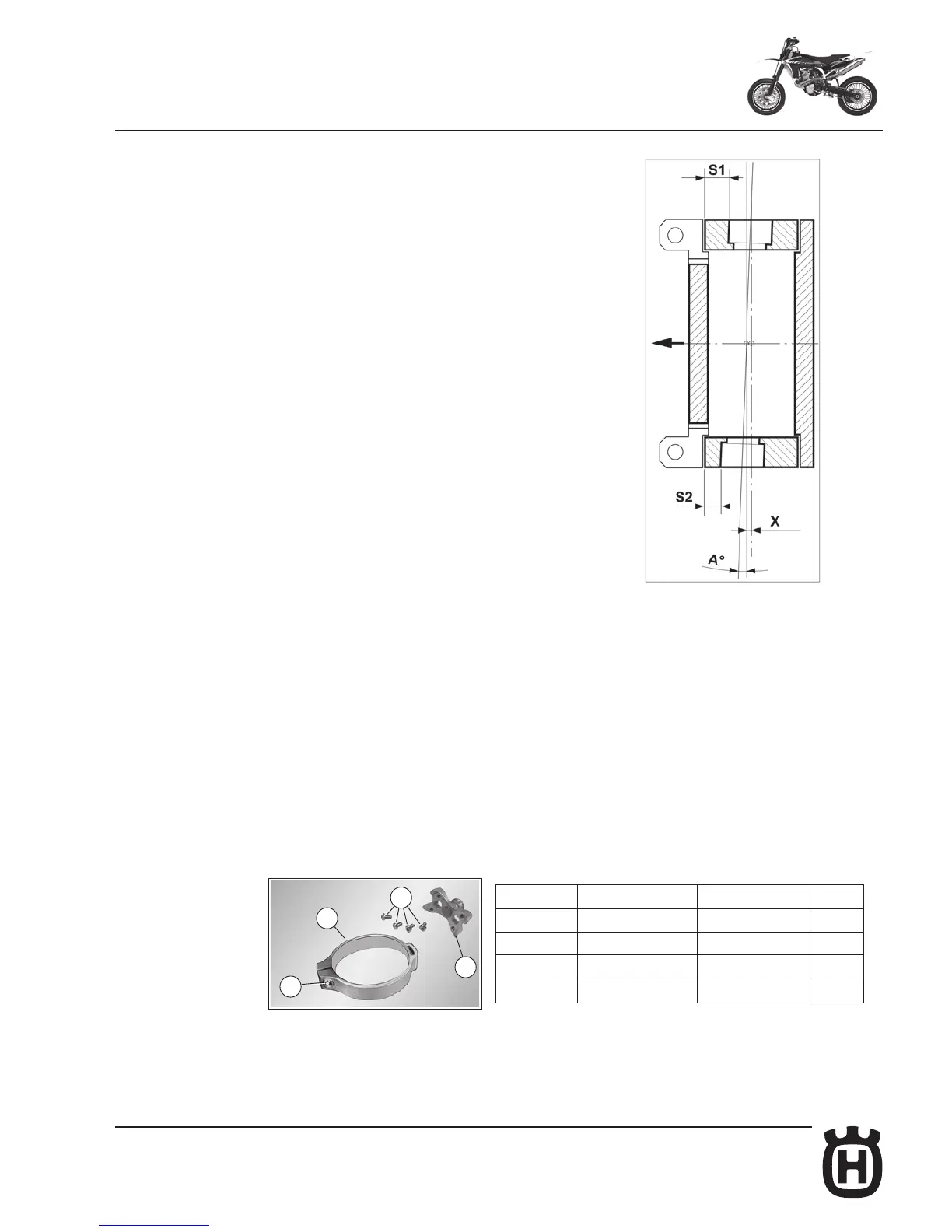

The kit si consists of:
STARTING HOOK KIT
B
C
A
D
Part No. Description Code Q.ty
A Ring (8000A6135) 1
B Hook (8000B1529) 1
C Screw (80B047053) 4
D Screw (60N407330) 1
Reassemble the steering base complete with washer and lower bearing, the
upper bearing, the dust cover (11 page 1-2) and the ring nut (10 page 1-2)
tightening it to the prescribed torque. Reassemble the group “b: steering head-
handlebar-controls” and the steering pin ring nut (9 page 1-2). Reassemble the
fork legs restoring measure “B” ( page 1-2) previously noted then the steering
base fastening screws tightening them slightly. Reassemble the front wheel and
the brake caliper operating in the reverse order as was shown for dismantling
then tighten the steering pin ring nut (9 page 1-2) to the prescribed torque: now
check and eventually adjust the steering bearings play using the ring nut (9).
Check measure “B” again and, if it is correct, reassemble the steering head
fastening screws (4 page 1-2) tightening them to the prescribed torque unitedly
with the steering base fastening screws. Tighten the two bushes fastening screws
(1). Reassemble the number holder and the brake hose brackets (5 and 6 page
1-2) on the number holder and on the L.H. fork leg slider guard. Pump the front
brake control lever until the pads are against the brake disc.
