Husqvarna TE 250 Workshop Manual

H.42 Part. N. 8000 B0148 (02-2008)

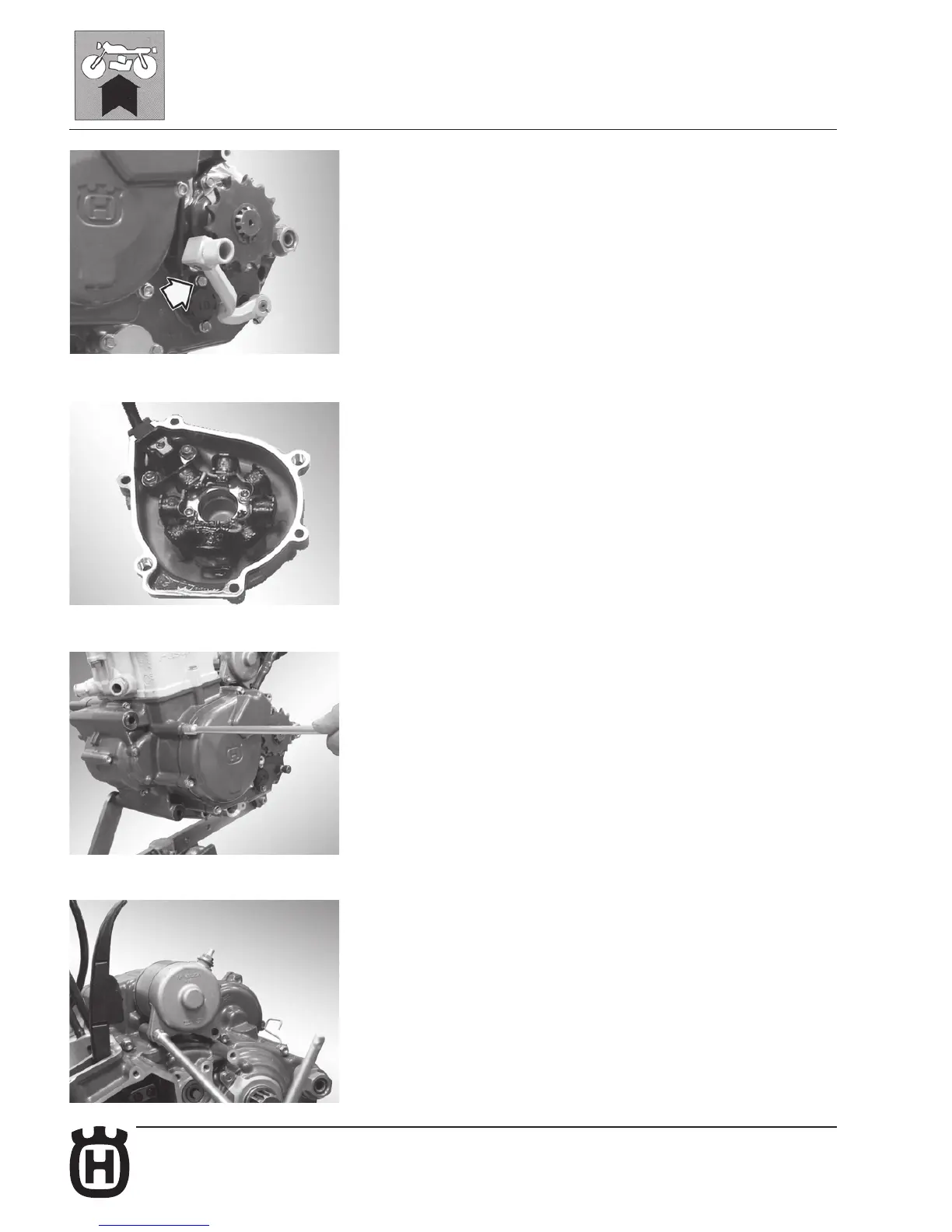

ENGINE REASSEMBLY
Fit a new O-ring and remount the neutral indicator locking the two fastening screws
(6 Nm-0,6 Kgm-4.3 ft/lb+LOCTITE 243).
Reassembly of flywheel cover
Mount the stator plate so its mark and stator cover mark are aligned and tighten the
two stator fastening screws (8 Nm-0,8 Kgm- 5.8 ft/lb+LOCTITE 272). Fit the fly
wheel grommet on the crankcase. Tighten the two pick-up fastening screws (6 Nm-
0,6 Kgm- 4.3 ft/lb+LOCTITE 272). Mount the flywheel cover and tightenthe six
screws to 8 Nm-0,8 Kgm- 5.8 ft/lb.
Mount the electric starting motor (8 Nm-0,8 Kgm- 5.8 ft/lb).

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
