Husqvarna TE 250 Workshop Manual

G.18 Part. N. 8000 B0148 (02-2008)
ENGINE OVERHAULING
0,30÷0,50 mm 0,6 mm
(0.012÷0.020 in.) (0.024 in.)
STANDARD WEAR LIMIT
Clutch unit

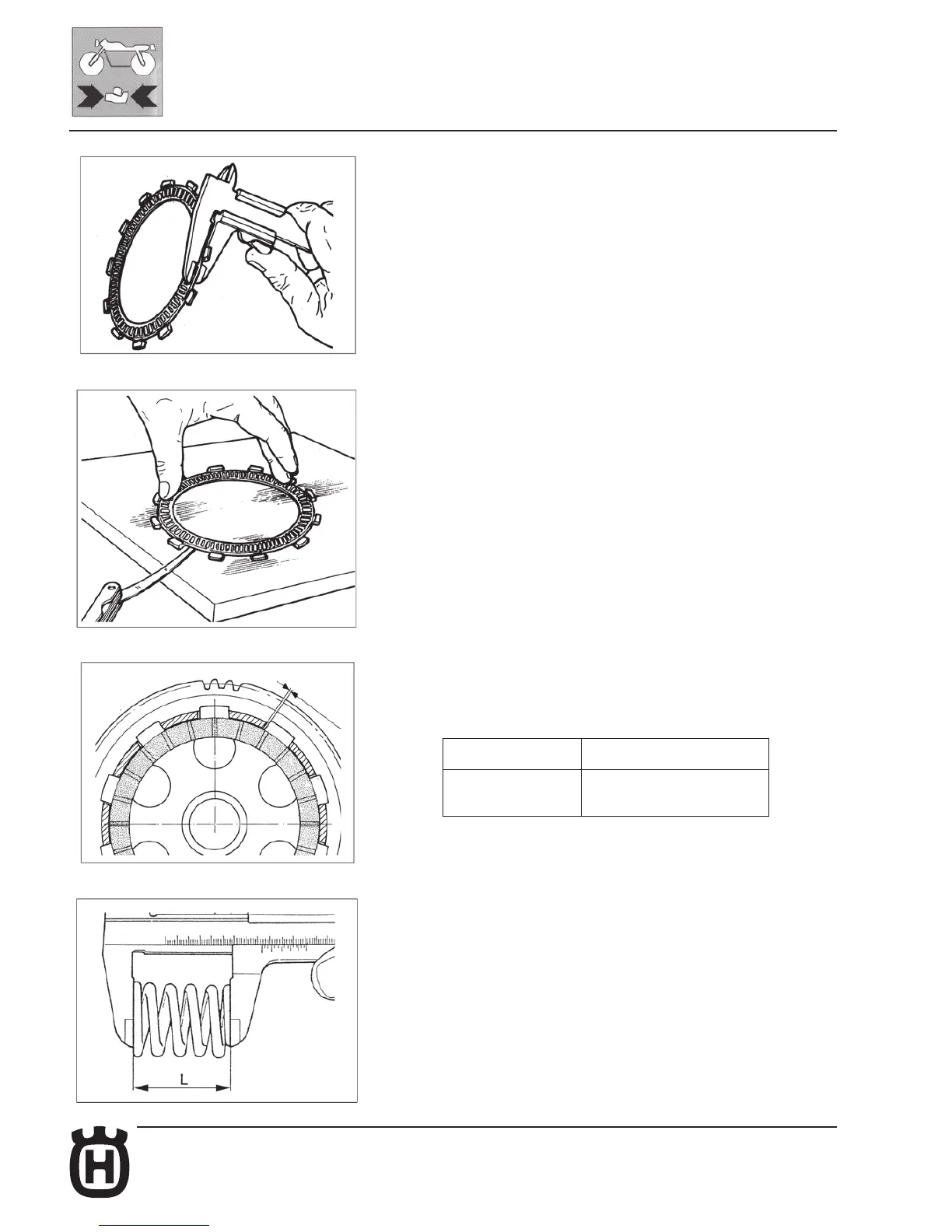

Check that all clutch unit components are in good condition. The clutch discs
should not be burnt or scored. Check the thickness of the clutch lining discs.
Thickness of new plate: 0.118 in. Wear limit: 0.114 in.
Check the distortion of each plate (both lined and unlined) by resting on a flat
surface; use a feeler gauge.
Wear limit: 0,2 mm (0.00078 in.).
Clutch housing-friction disc clearance
Clutch spring (excluded SMR 450-R)
Check the free lenght “L” of each spring with a gauge.
New spring: L= 1.61 in. Wear limit: 1.53 in.
Replace any spring which does not meet with this specification.

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
