Husqvarna TE 250 Workshop Manual

H.17Part. N. 8000 B0148 (02-2008)

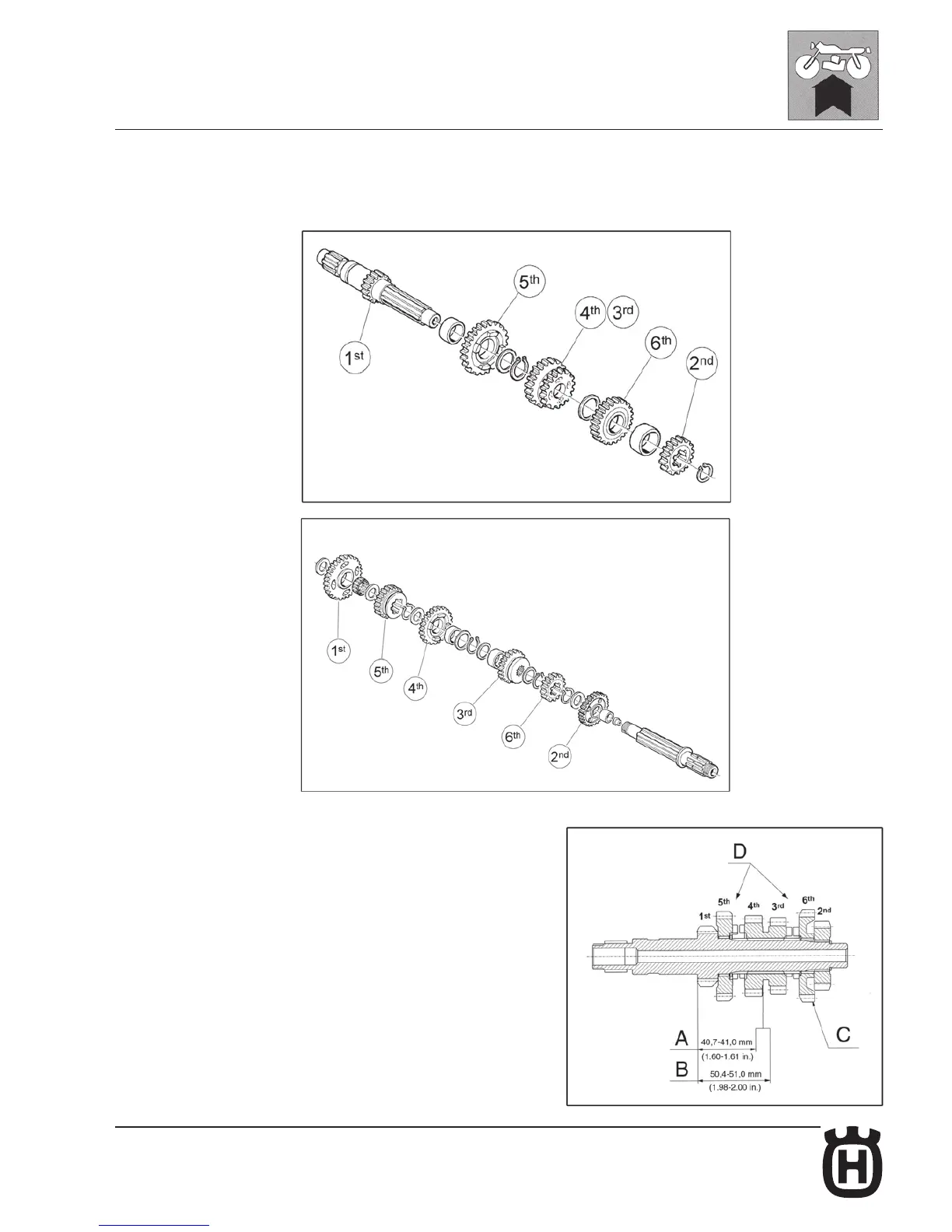

ENGINE REASSEMBLY
Main shaft
Auxiliary shaft
Reassembly of transmission
If the gear shafts have been disassembled, the following paragraphs show the reassembly sequence.
6 Speed transmission (TE, TXC, SMR)
A: 5th gear engaged
B: 6th gear engaged
C: 6th gear aligned with shaft broaching
D: lubricate at the assembly with MOLYKOTE G-n plus
Main shaft
Mount the bushing, the 5th gear on the bushing and after that the washer
and the circlip. The washer should be between the gear and the circlip.
Mount the 3rd-4th gear and after that, the washer. Mount 6th gear and the
steel spacer. Mount 2nd gear and the circlip.
Main shaft complete
