F.20 Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY
Gear control pedal and gear shifter disassembly

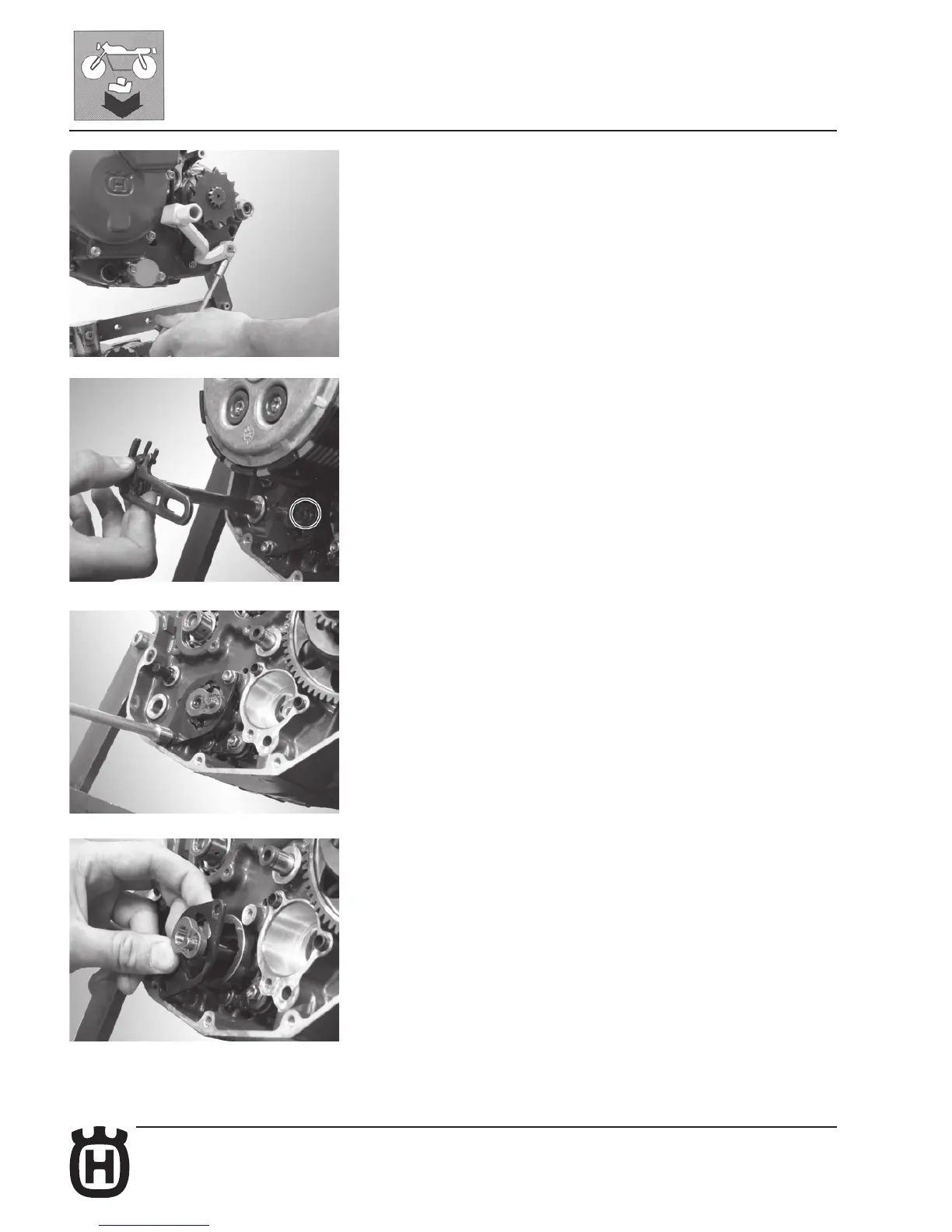

Make a mark on the shaft showing the position of the gear control pedal to make
the reassembly easier. Remove the fastening screw (8 mm wrench) and the gear
control pedal from the gear shifter shaft. Extract, from the R.H.S., the gear shifter
shaft and the bushing from the ratchet wheel.
Remove the two fastening screws, the gear shifter retaining plate and the ratchet
wheel.
