Husqvarna TE 250 Workshop Manual

M.25Part. N. 8000 B0148 (02-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

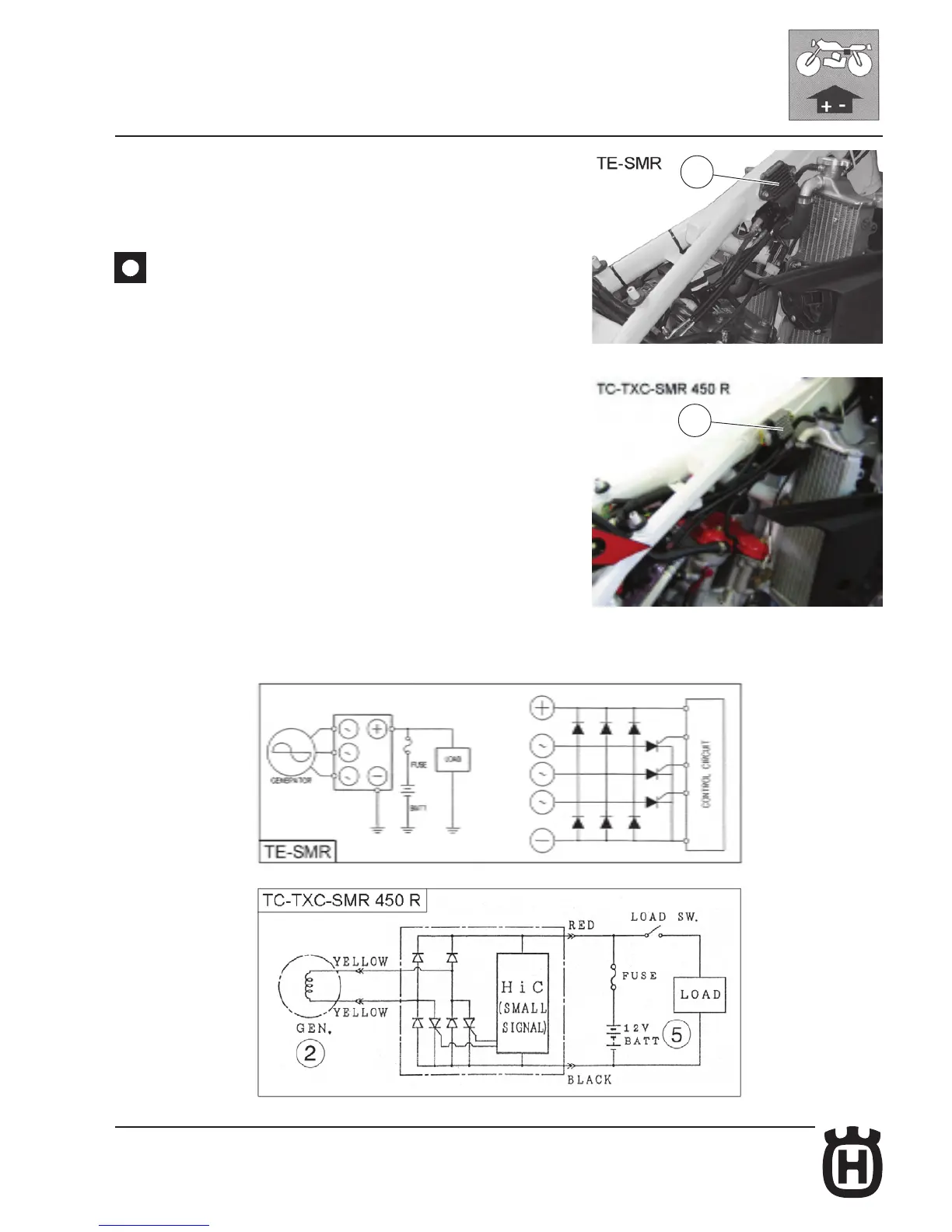

VOLTAGE REGULATOR-RECTIFIER WIRING DIAGRAM
1
1
Voltage regulator (TE-SMR)
The voltage regulator (1) contains the diodes to rectify the current produced by
the generator.
It contains also an electronic device operating in relation to the battery tension:
if battery has a “low” charge, recharge current will be high; on the contary if battery
will be charged the current will be lower.
: Do not disconnect the battery cables when engine is on, since the
regulator should be irreparably damaged.
