F.24 Part. N. 8000 B0148 (02-2008)
ENGINE DISASSEMBLY
Gearbox disassembly

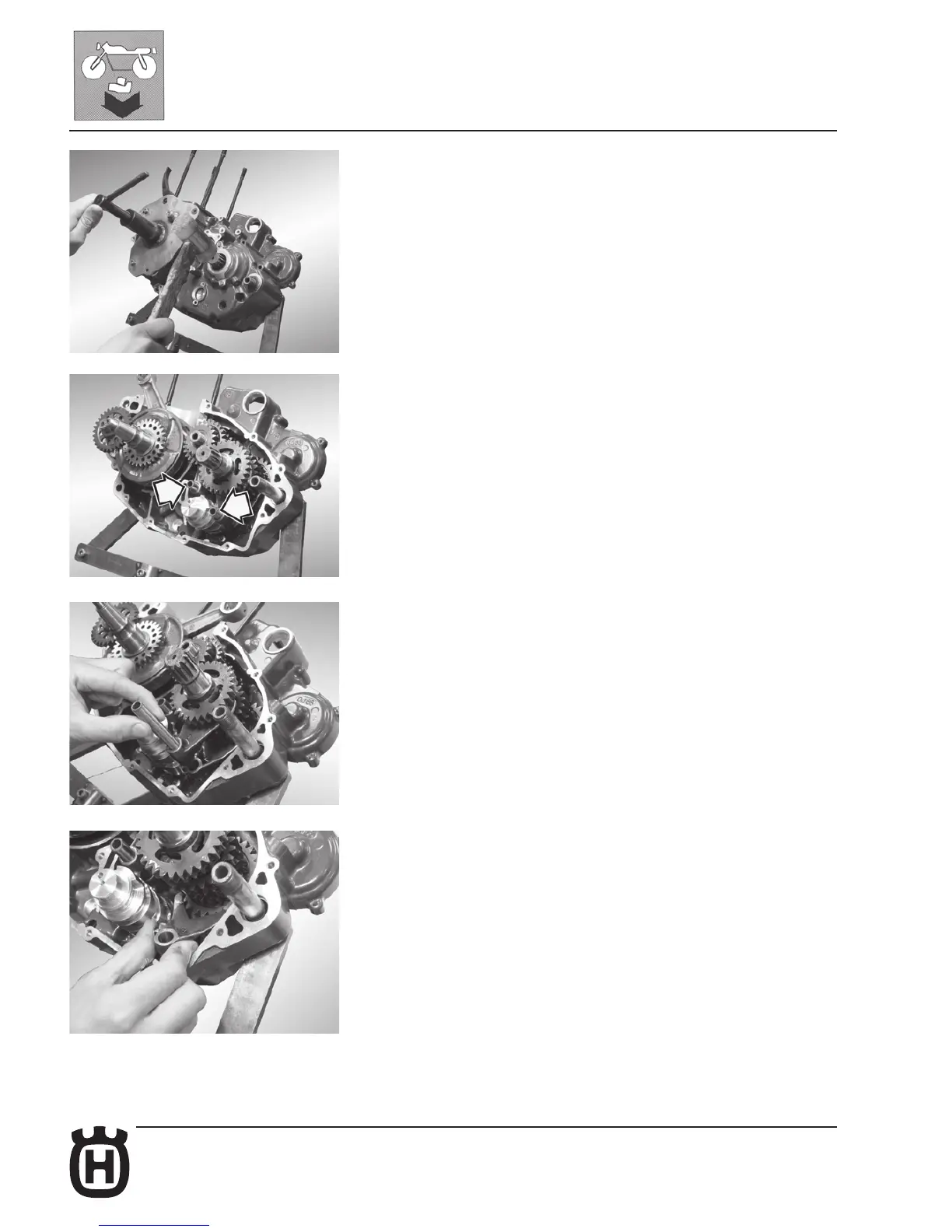

Remove the fork pins, the forks and the selector drum so they do not interfere with
each other: the following pictures show the correct disassembling sequence.
(Secondary shaft fork pin).
(Secondary shaft forks).
Fix the crankcase puller (code no. 1517 94702) in the holes of the flywheel cover
and pull off the L.H. crankcase side.
During this operation, lightly strike the secondary shaft at intervals using a rubber
hammer to avoid the crankcase from getting stuck.
