SETTINGS AND ADJUSTMENTS
Part. N. 8000 B0148 (02-2008) D.33

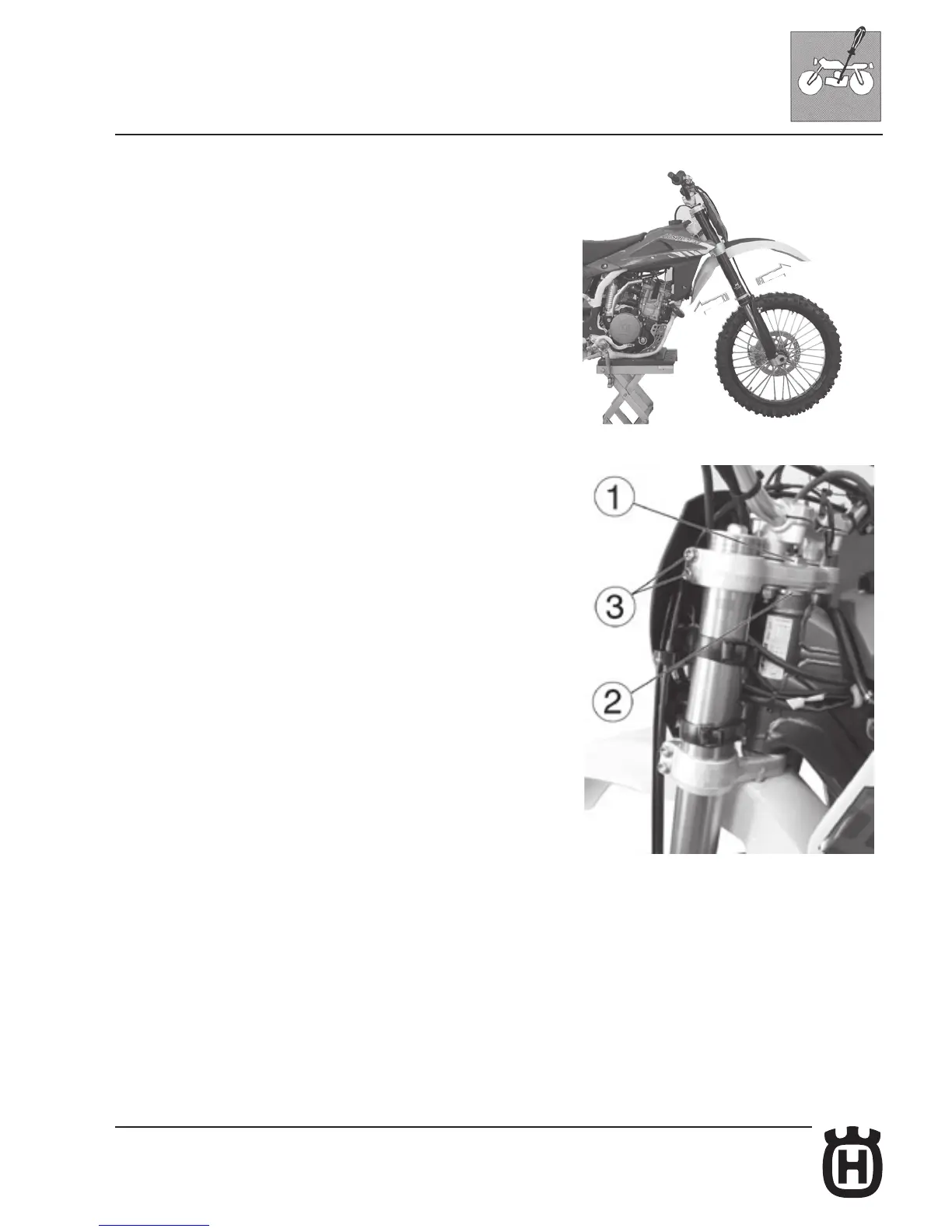

Steering bearings play adjustment
To ensure maximum safety, the steering should always be adjusted so that the
handlebars rotate freely without play. To check steering adjustment, place kick
stand or other support under the engine so that the front wheel is raised from
ground. Place slight pressure on the tips of the handlebars to rotate steering;
the handlebars should also rotate without effort. Stand in front of the motorcycle
and grasp the lower end of the fork rods sliders moving them in the perpendicu-
lar direction to their axis.
If play is noticed, proceed with adjustment as follows:
- loosen steering sleeve nut (1);
- loosen four screws that fix steering head to fork rods (3);
- turn the steering ring nut (2) clockwise of the steering sleeve using a proper
tool, to adjust play properly;
- tighten steering sleeve nut (1) to a torque setting of 57,9÷65,1 Lb/ft; (78,4÷88,3
Nm)
- tighten four screws on the steering head (3) to a torque of 22,5÷26,5 Nm
(16.6÷19.5 Lb/ft).
