H.46 Part. N. 8000 B0148 (02-2008)
ENGINE REASSEMBLY

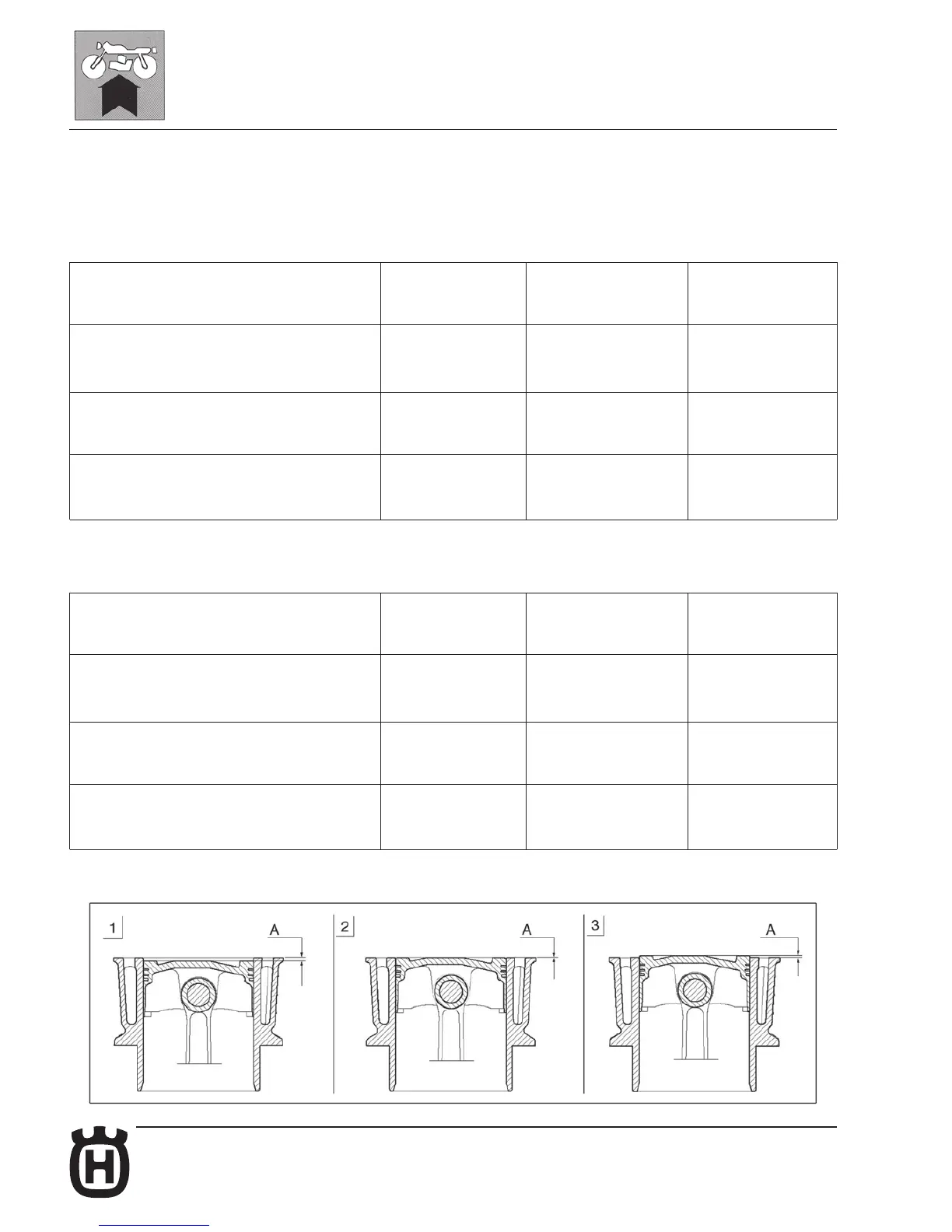

CYLINDER HEAD GASKET SELECTION CHART
Position the piston to T.D.C. at the end of the compression stroke, measure the distance "A" between piston crown and cylinder head
face then choose the gasket as shown in the table below.
250
CONDITION (see picture) “A” gasket thickness gasket code
1) (piston lower than cylinder head face) -0.1 ± 0.05 mm 0.7 mm 8A00 A5462
2) (piston aligned with cylinder head face) 0 ± 0.05 mm 0.8 mm 8000 A5462 (STD)
3) (piston projecting from cylinder head face) 0.1 ± 0.05 mm 0.9 mm 8B00 A5462
450-510
CONDITION (see picture) “A” gasket thickness gasket code
1) (piston lower than cylinder head face) -0.6 ± 0.05 mm 1.0 mm 8E00 A4195
1) (piston lower than cylinder head face) -0.5 ± 0.05 mm 1.1 mm 8B00 A4195 (STD)
1) (piston lower than cylinder head face) -0.4 ± 0.05 mm 1.2 mm 8H00 A4195
