Husqvarna TE 250 Workshop Manual

I.48
Part. N. 8000 B0148 (02-2008)
FRONT SUSPENSION

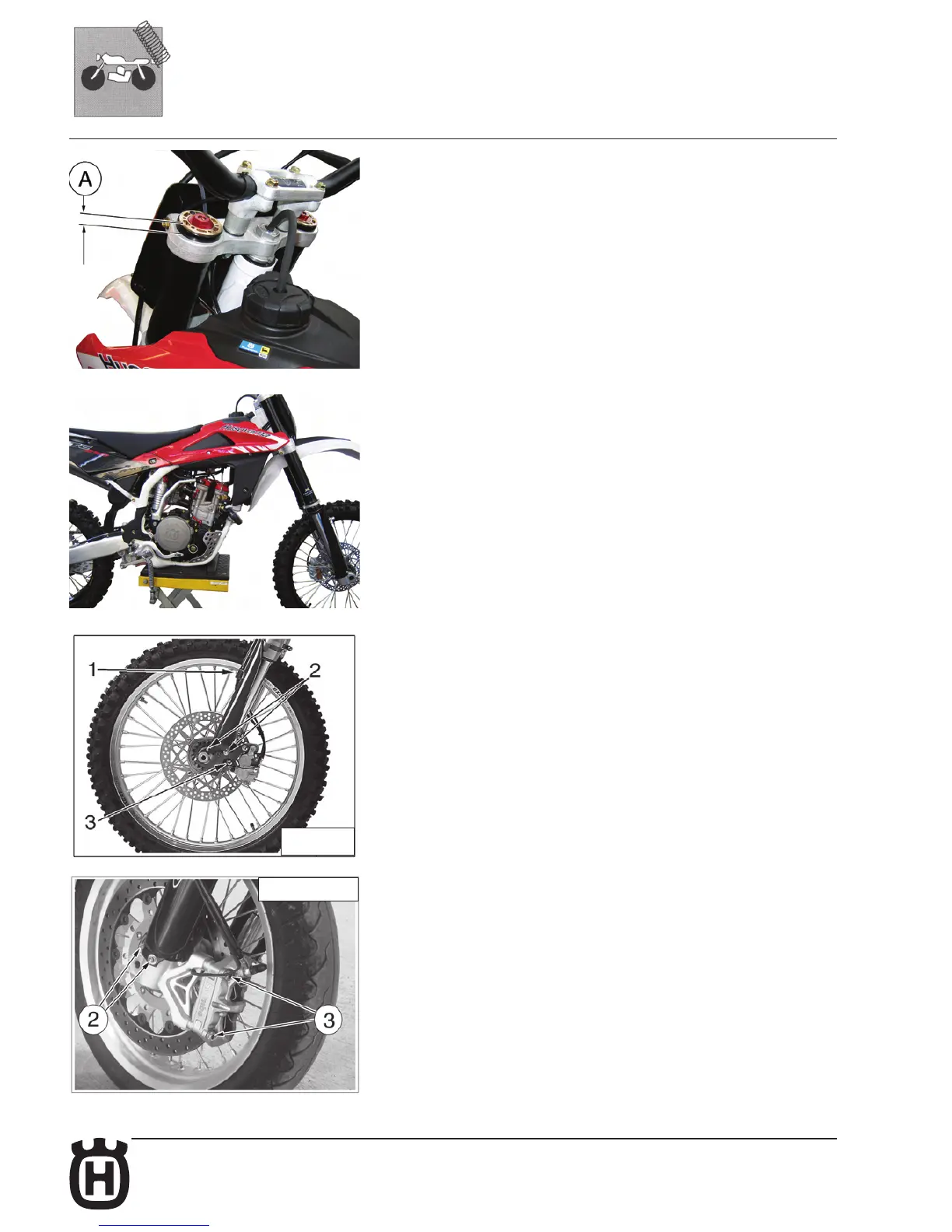

Removing the front fork
Take note of measure “A” which must be restored when reassembling. Set a support
under the engine to lift the front wheel from the ground, working as follows:
-remove,on the L.H. side, the screws (1) , the brake hose and the instrument cable
clamp (TE-SMR) on the fork tube guard;
- remove the six screws (2) and the fork tube guards;
- remove the brake caliper from the L.H. fork tube by unscrewing the two fastening
screws (3);
- remove the front wheel following the instructions on page Y.6;
- unloose the screws (4) fastening each fork slider to the steering head and steering
base;
TC-TCX
SMR 450-R

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
