Husqvarna TE 250 Workshop Manual

M.8 Part. N. 8000 B0148 (02-2008)
ELECTRIC SYSTEM, DIGITAL INSTRUMENT

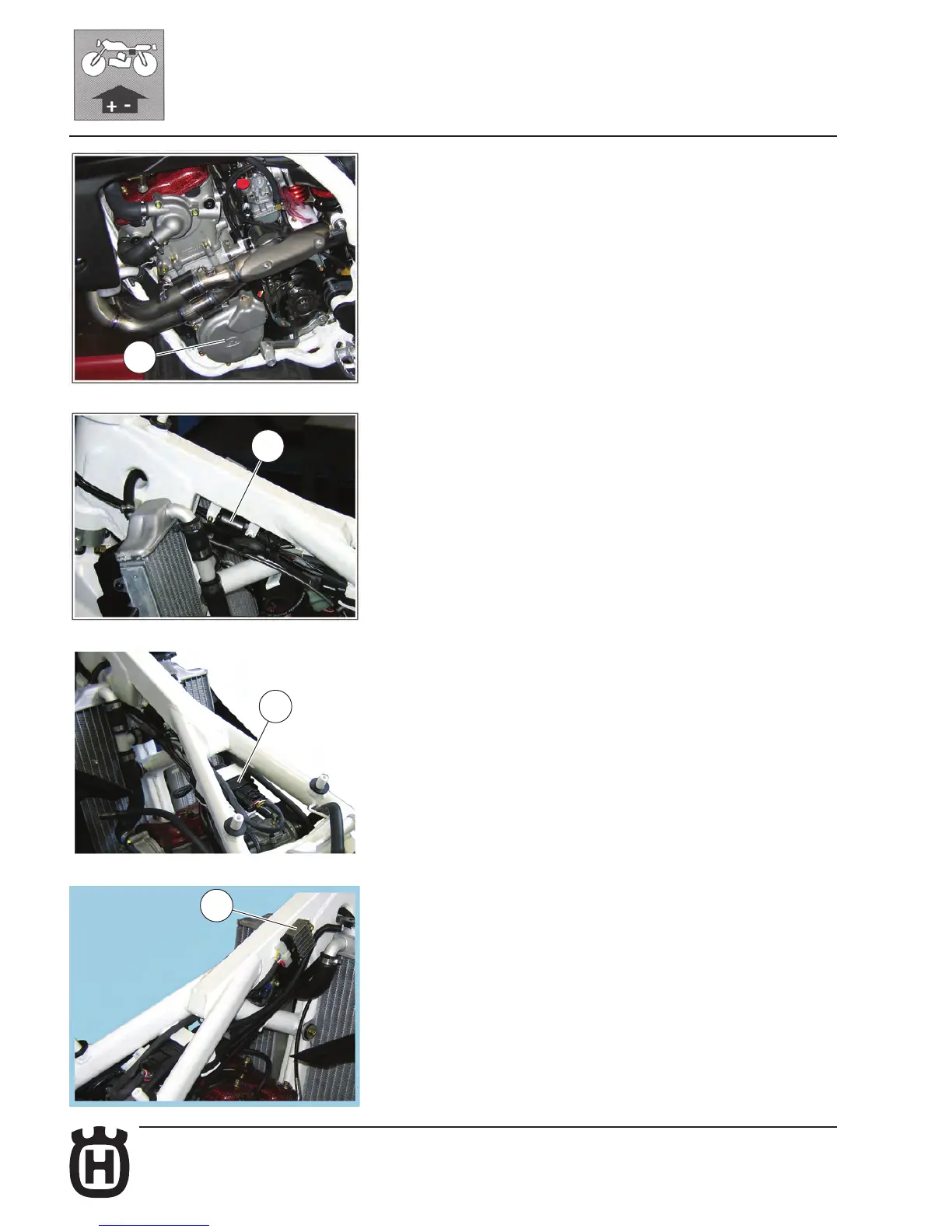

ELECTRICAL COMPONENTS LOCATION (TC-TXC-SMR 450-R)
The ignition system includes the following elements:
- Generator (1) on the inner side of L.H. crankcase cover;
- Electronic coil (2) and condenser (11; TC-TXC) under the fuel tank;
- Electronic power unit C.D.I. (3) under the fuel tank;
- Voltage regulator (4) under the fuel tank;
- Spark plug (5) on the R.H. side of cylinder head;
- Starting motor 12V-450W (6) behind the cylinder (TE-TXCSMR);
- Electric start remote control switch (7) on the left side of the rear frame;
- Potentiometer (10) on the carburettor.
L’impianto elettrico è composto dai seguenti elementi:
- Battery 12V-6Ah (7) under the saddle;
- Two fuses (9) 20A, on the electric starter contactor (7; TXC-SMR 450-R).
1
2
3
4

Husqvarna TE 250 Specifications

General

Displacement	249 cc
Transmission	6-speed
Cooling System	Liquid
Starter	Electric
Front Suspension	WP XPLOR 48
Front Brake	Disc brake
Rear Brake	Disc brake
Bore x Stroke	66.4 mm x 72 mm
Engine Type	2-Stroke
