Lifting the SRX3600 Services Gateway Chassis into the Rack
Lifting the chassis and mounting it in a rack requires two people. The empty chassis weighs approximately
43.6 lb (19.8 kg).
1. Ensure the rack is in its permanent location and is secured to the building.
2. Position the chassis in front of the rack or cabinet. Use a pallet jack if one is available.
3. With one person on each side, lift the chassis into position in the rack:
•
For two-post rack mounting, align the bottom hole in each mounting bracket with a hole in each rack
rail.
•
For four-post rack or cabinet mounting, position the services gateway so that the bottom rear edge
of the chassis rests on the support shelf you installed earlier, as described in “Installing the Mounting
Hardware for the SRX3600 Services Gateway” on page 109.
WARNING: Do not attempt to lift the chassis by the handles on the power supplies
or on the common form-factor modules (CFMs). The handles can break off and cause
the chassis to fall and inflict injury.

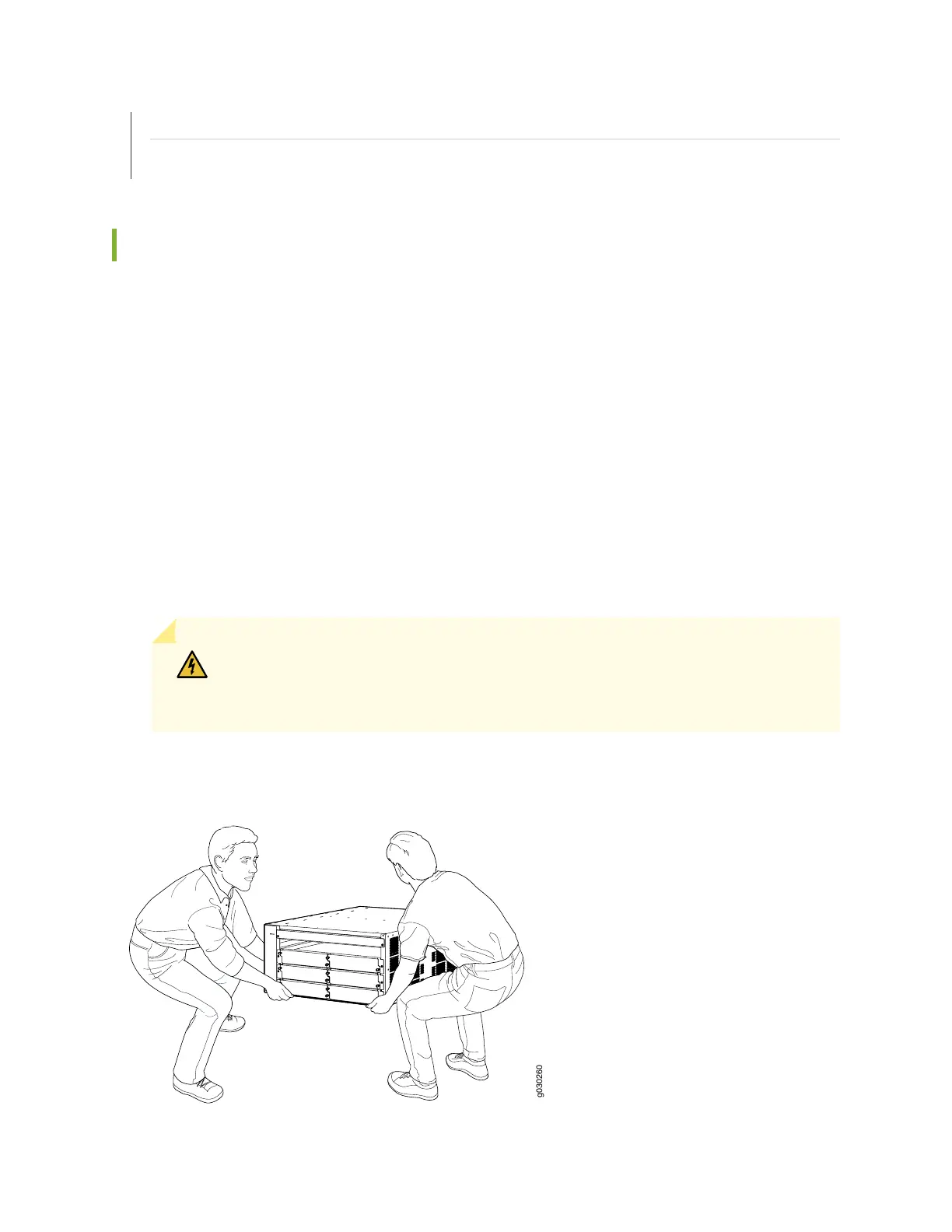

Figure 48: Lifting the Chassis into the Rack
