SRX3600 Services Gateway Routing Engine
The Routing Engine is a PowerPC platform that runs the Junos operating system (Junos OS). Software
processes that run on the Routing Engine maintain the routing tables, manage the routing protocols used
on the services gateway, control the services gateway interfaces, control some chassis components, and
provide the interface for system management and user access to the services gateway.
Two USB ports on the Routing Engine accept USB memory cards that allow you to load Junos OS and
perform file transfers.
The Routing Engine also provides the following integrated services:
•
Central Packet Forwarding Engine Processing (CPP)—This service manages all CFM cards.
•
System Control—This service handles Routing Engine arbitration and switching between multiple control
planes and acts as the host for the Switch Fabric Board (SFB) and midplane components.
The services gateway must have one Routing Engine installed in slot RE0. A Gigabit Ethernet port on the
front panel of the Switch Fabric Board (SFB) is connected directly to the processors on the REs for
management purposes. The SFB port labeled RE ETHERNET 0 connects to the Routing Engine in slot RE0.
NOTE: Unless you have installed an SRX Clustering Module (SCM) in slot RE1, the empty RE1 slot
should have a blank panel installed to shield it and to allow cooling air to circulate properly through
the services gateway.

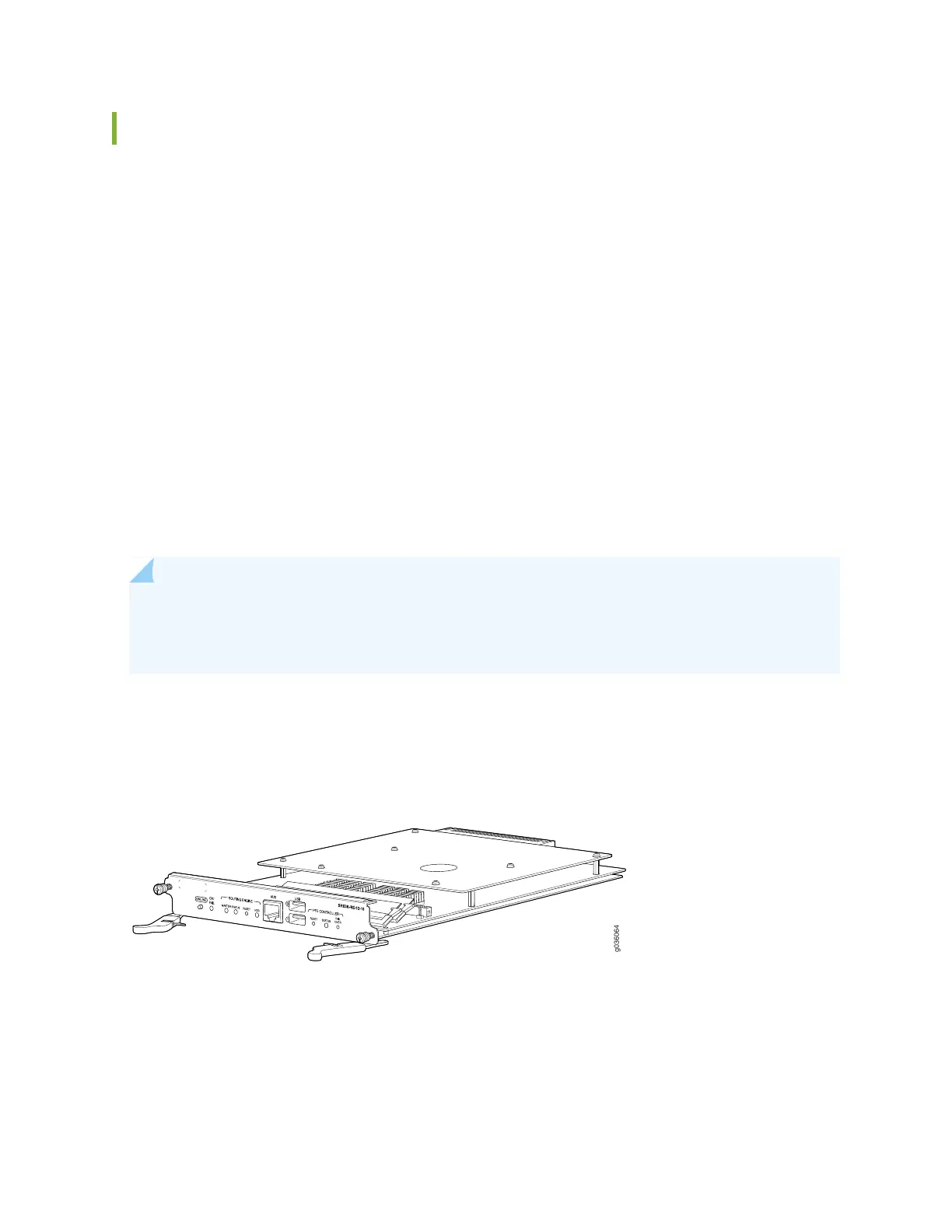

Figure 7: Routing Engine
For detailed information about the Routing Engines supported by the services gateway, see the SRX1400,
SRX3400, and SRX3600 Services Gateway Module Guide at www.juniper.net/documentation/.
