Replacing a Routing Engine on the SRX3600 Services Gateway
The Routing Engine is located in the rear slot labeled RE0 on the services gateway. Before you replace the
Routing Engine, you must power off the services gateway.
To replace the Routing Engine:
1. Place an electrostatic bag or antistatic mat on a flat, stable surface.
2. Attach an ESD grounding strap to your bare wrist and connect the strap to one of the ESD points on
the chassis. For more information about ESD, see Preventing Electrostatic Discharge Damage to the
SRX3600 Services Gateway.
3. If you have not already done so, power off the services gateway by pressing the Power button on the
front panel of the SFB for three to five seconds.
The PWR LED blinks to show you that the services gateway is shutting down. Wait for the services
gateway to shut down before you proceed to the next step.
4. Disconnect any cables connected to the AUX or USB ports.
5. Loosen the captive screws at each end of the Routing Engine faceplate.
6. Pull open the ejector handles to unseat the Routing Engine.
7. Grasp the Routing Engine by the ejector handles and slide it halfway out of the chassis.

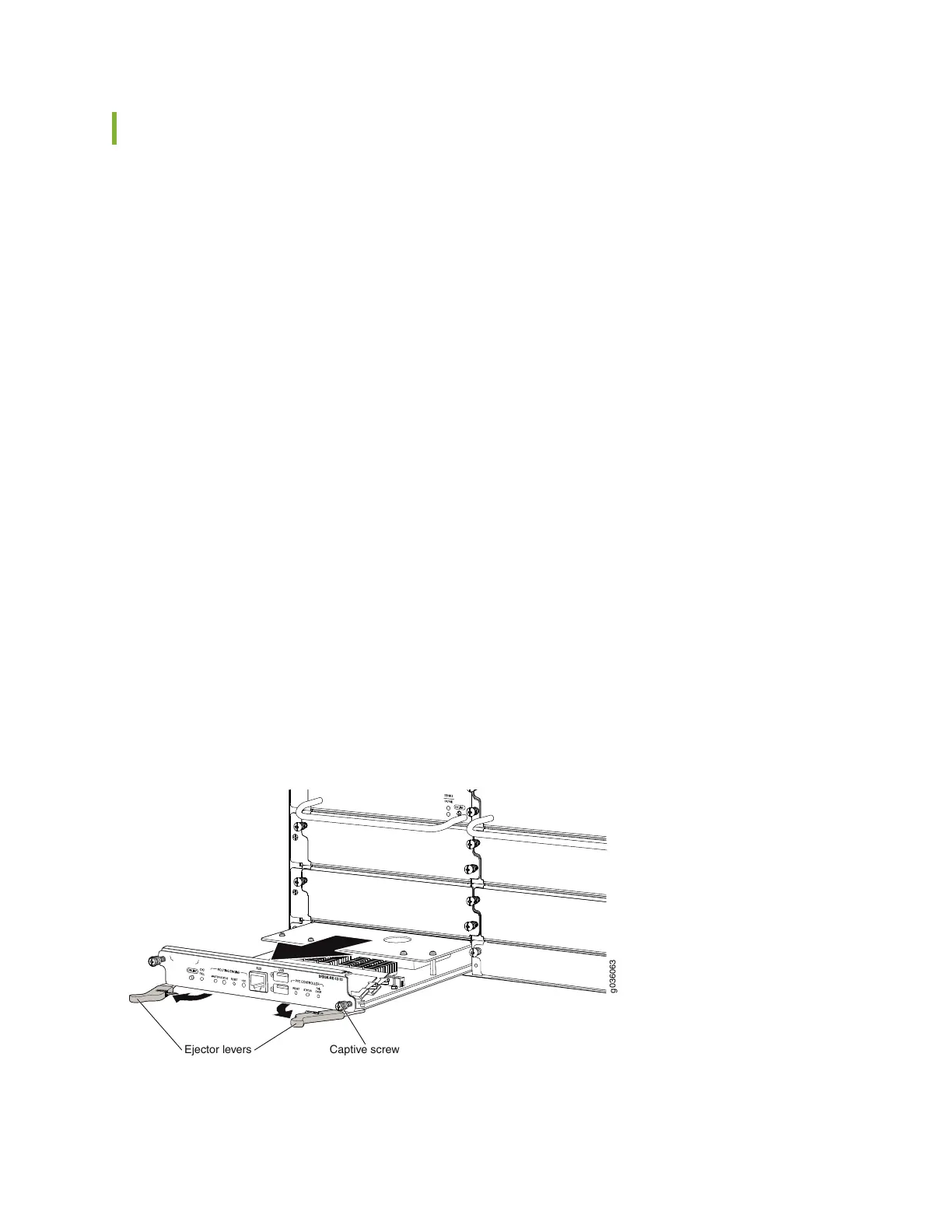

Figure 65: Removing a Routing Engine
g036063
Captive screwEjector levers
8. Place one hand underneath the Routing Engine to support it and slide it completely out of the chassis.
