Juniper SRX3600 Hardware Guide

I/O Card SRX3K-16GE-SFP
The SRX3K-16GE-SFP IOC (Figure 20 on page 38) adds 16 ports for Gigabit Ethernet traffic from either
copper or fiber interface media. It is inserted horizontally into the midplane of the services gateway to
communicate with the SFB and to receive power. To use fiber interface media, install small form-factor
pluggable (SFP) transceivers on the desired ports. LEDs on the faceplate of the IOC indicate port status
and connectivity. Ports are numbered from top to bottom and left to right, 0-15.

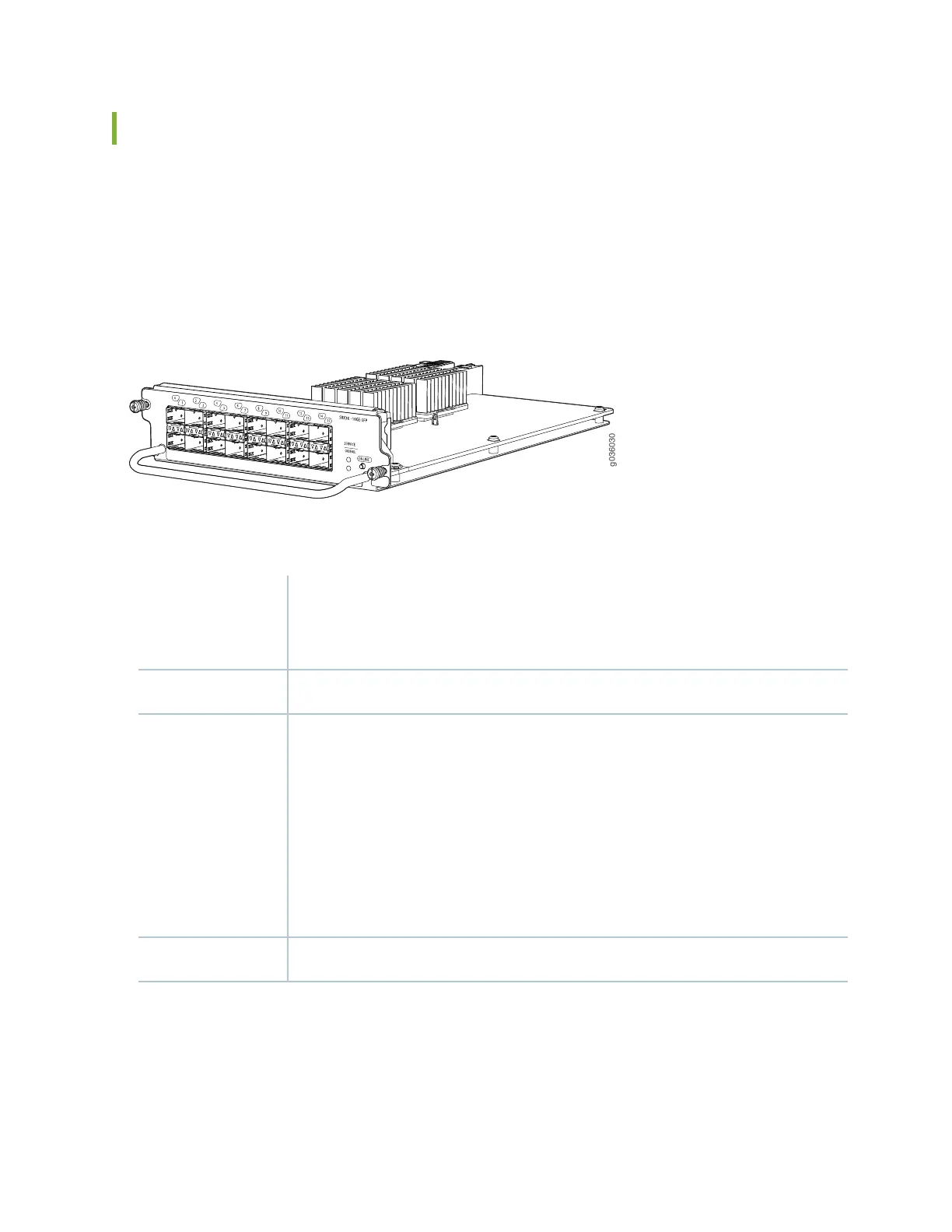

Figure 20: 16-Port SFP Gigabit Ethernet IOC
g036030
For detailed information about supported transceivers, see the SRX Series Services Gateway Transceiver
Guide at www.juniper.net/documentation/.
•
16-port Ethernet SFP IOC for SRX3400, SRX3600, and SRX1400
•
Power requirement: 52 W maximum
•
Weight: 2.4 lb (1.1 kg)
Description
•
Junos OS Release 9.3 and laterSoftware release
Sixteen SFP sockets for Ethernet transceivers
Supported SFP transceivers:
1000BASE-LH (model numbers SRX-SFP-1GE-LH, SRX-SFP-1GE-LH-ET)
1000BASE-LX (model numbers SRX-SFP-1GE-LX, SRX-SFP-1GE-LX-ET)
1000BASE-SX (model numbers SRX-SFP-1GE-SX, SRX-SFP-1GE-SX-ET)
1000BASE-T (model numbers SRX-SFP-1GE-T, SRX-SFP-1GE-T-ET)
Cables and
connectors
ONLINE Button–The ONLINE button on the IOC front panel does not perform any function.Controls
