Field Service Ver. 2.0 Jun. 2010 11. SERVICE MODE
89
1
bizhub 164ADJUSTMENT / SETTING
11.3.14 LEADING EDGE
A. Use
•To adjust the erase width on the leading edge of the image by varying the laser emission
timing.
•Used when the PH unit has been replaced.
B. Procedure

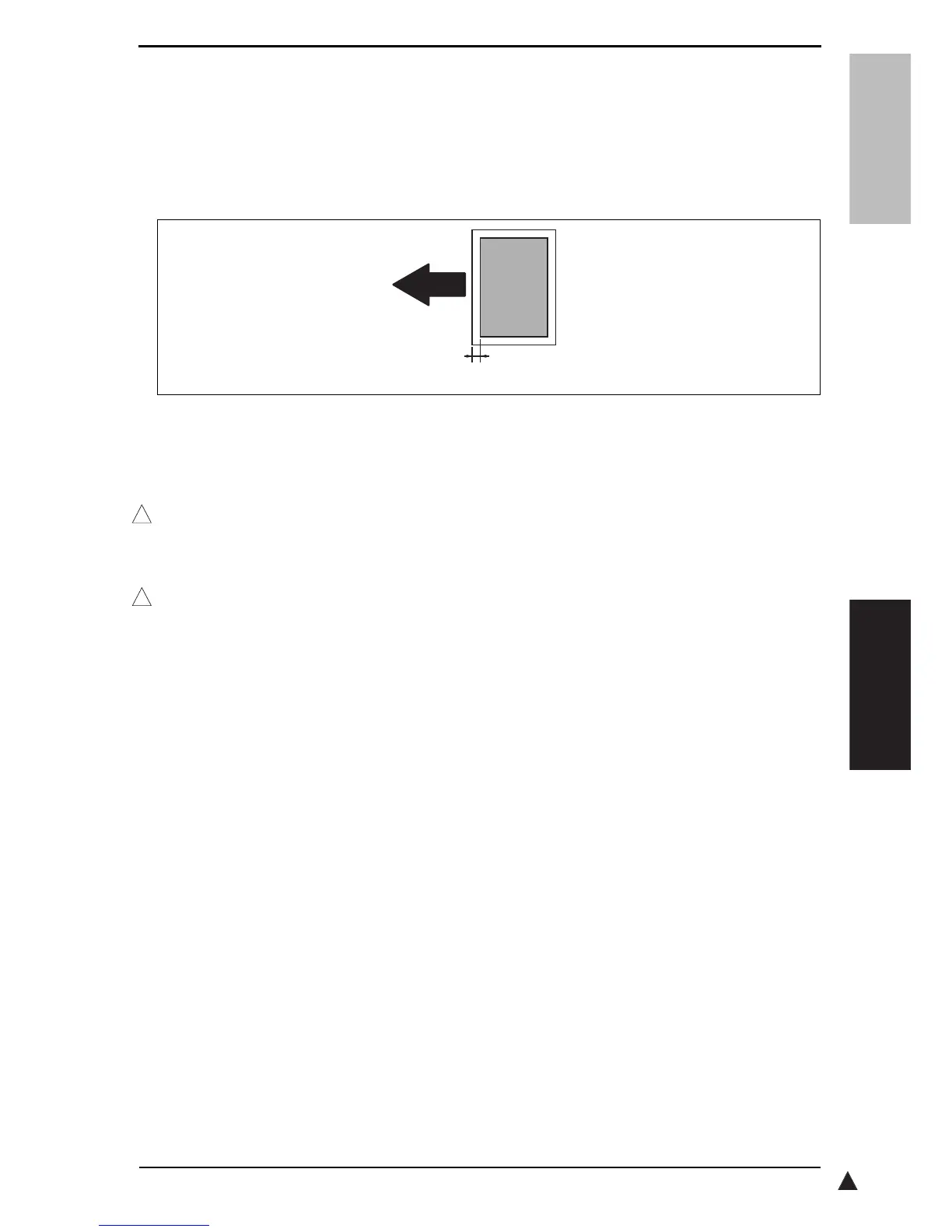

•Set the erase width on the leading edge of the paper (width A).
•The default setting is 4 mm.
0 mm/1 mm/2 mm/3 mm/“4 mm”/5 mm
1. Call SERVICE’S CHOICE of SERVICE MODE to the screen.
2. Select [LEADING EDGE] and press the Menu/Select key.
3. Using [ ▲ / ▼ ] key, select the desired setting value.
To m ake th e e ra se w id th sm all e r, de cre as e th e s e tt ing va l u e.
To m ake th e e ra se w id th gr ea ter, i n cre as e t he se tti ng val u e.
4. Press the Menu/Select key to validate the setting value selected in step 3.
A0XXF3C501DA
A
1
1
