Konica Minolta BIZHUB 164 Service Manual

1
5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
48
bizhub 164
MAINTENANCE

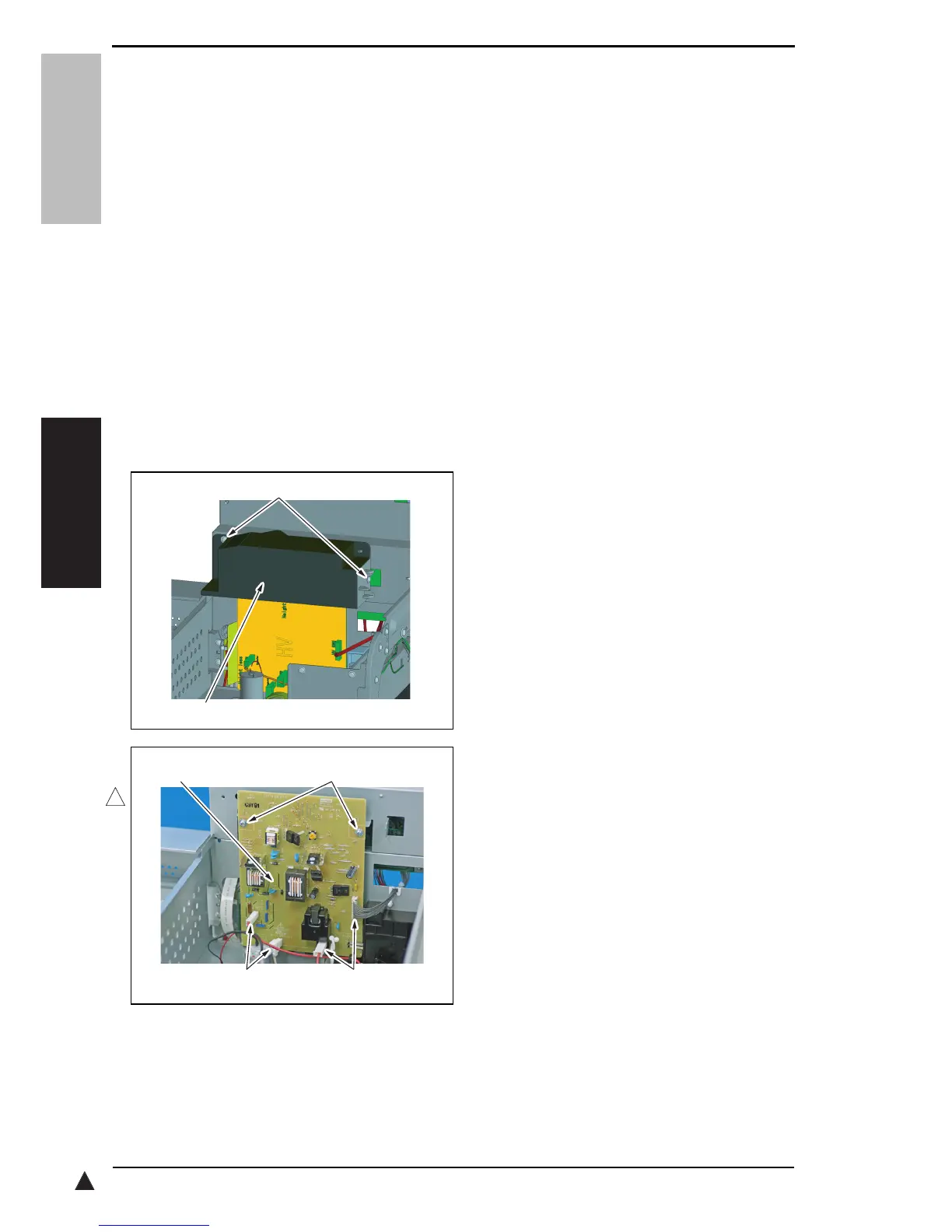

5.4.19 High voltage unit (HV1)
1. Remove the toner bottle.
See P.19
2. Remove the imaging unit.
See P.41
3. Remove the front cover.
See P.33
4. Remove the paper exit tray (left) and paper exit tray (right).
See P.36
5. Remove the rear right cover/1.
See P.34
6. Remove the rear right cover/2.
See P.34
7. Remove the rear cover.
See P.34
8. Remove the fusing unit.
See P.30
9. Remove the scanner unit.
See P.46
10. Remove two screws [1], and remove
the paper exit inside cover [2].
11. Disconnect four connectors [1].
12. Remove two screws [2], and remove
the high voltage unit [3].
13. To r e i n s tal l, r eve rs e t h e or de r of r e m ova l.
A0XXF2E525DA
[2]
[1]
A0XXF2E038DA
[1][1]
[2][3]
1

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
