Konica Minolta BIZHUB 164 Service Manual

5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
40
bizhub 164
MAINTENANCE
5.4.12 Multi bypass tray
1. Remove the rear right cover/1.
See P.34

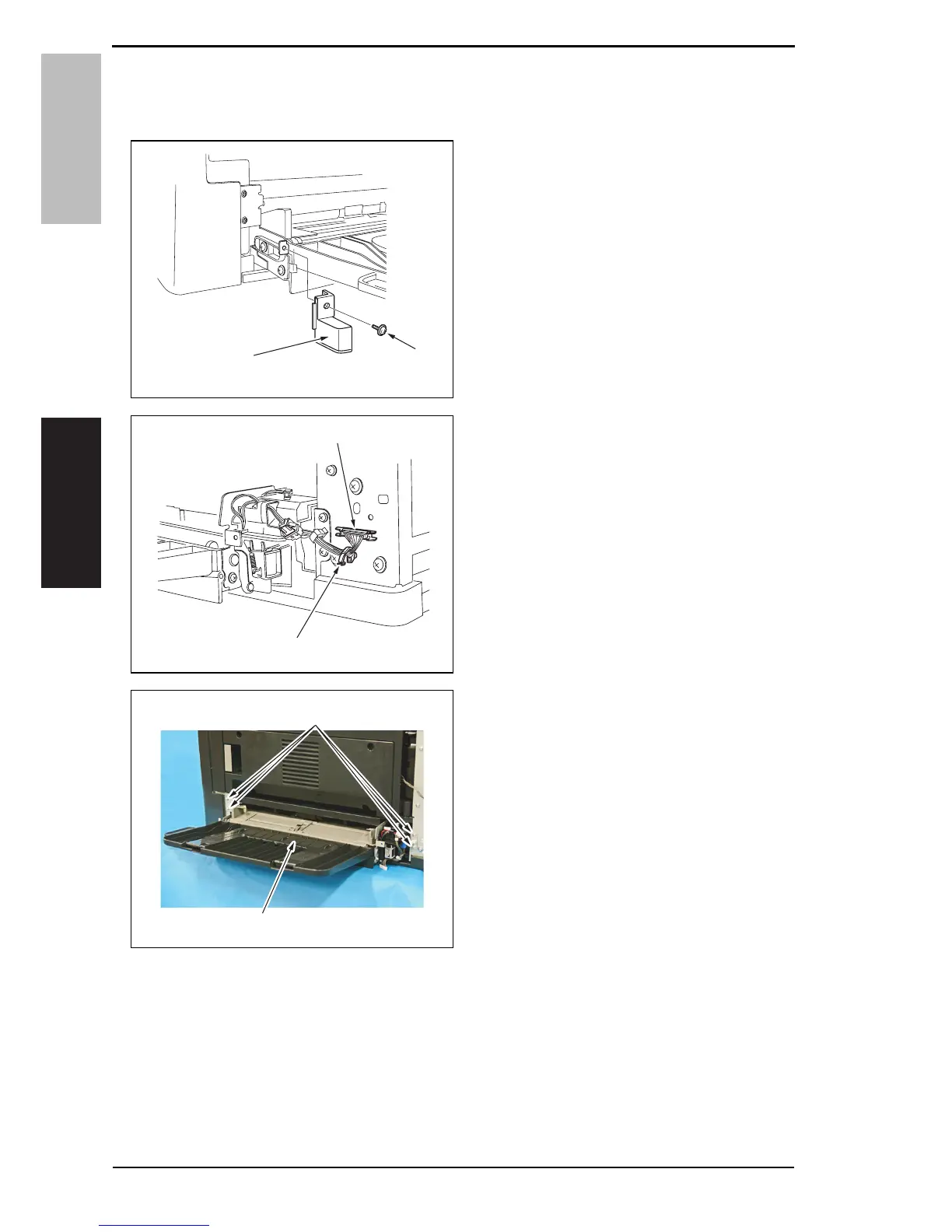

2. Remove the screw [1], and remove
the cover [2].
3. Remove the harness from the wire
saddle [1].
4. Disconnect the connector [2].
5. Remove four screws [1], and remove
the multi bypass tray [2].
6. To re in s t a l l, reve rs e th e o r de r of re mova l.
A0XXF2E510DA
[1]
[2]
A0XXF2E511DA
[1]
[2]
A0XXF2E027DA
[1]
[2]
