Konica Minolta BIZHUB 164 Service Manual

16. IMAGE QUALITY PROBLEM Field Service Ver. 2.0 Jun. 2010
148
bizhub 164
TROUBLESHOOTING

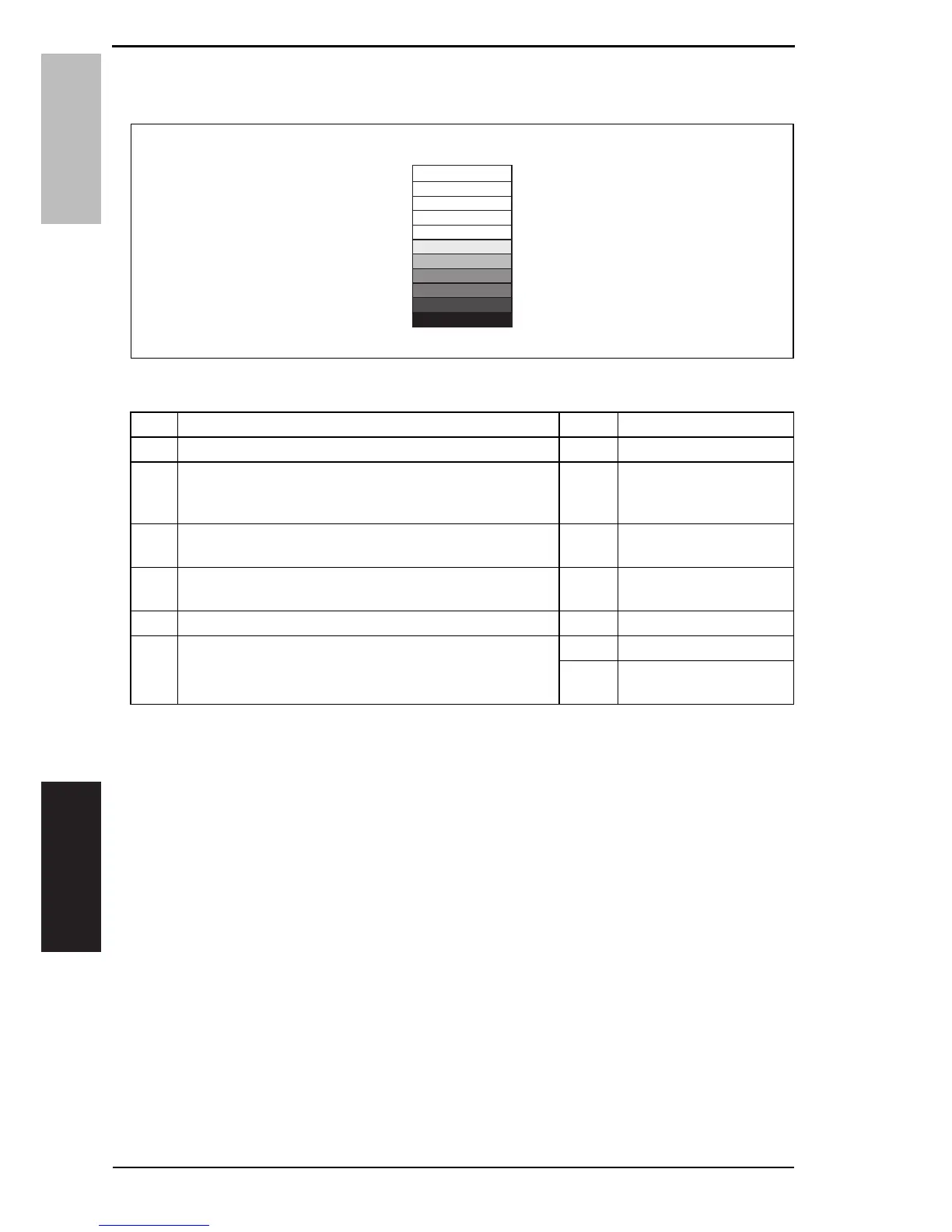

16.2.9 Scanner section: Gradation reproduction failure
A. Typical faulty images
B. Troubleshooting procedure
A09AF3C530DA
Step Check Result Action
1Original glass is dirty, scratchy, worn, or damaged. YES • Clean or change.
2 Shading sheet reading portion (the portion on the back-
side of the original glass to which original width scale is
affixed) is dirty.
YES • Clean.
3Exposure lamp is abnormally lit (flickers or abnormally
dark) when the power switch is turned ON.
NO • Go to step 5.
4CIS module components (glass, lamp, sensor) are dirty,
scratchy, worn, or damaged.
YES • Clean or change.
5CIS module (CIS) connector is loose. YES • Reconnect.
6Printer control board (PRCB) connector P102 is loose. YES•Reconnect.
NO • Change PRCB.
•Change CIS.
