Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 4. PERIODICAL MAINTENANCE PROCEDURE
17
bizhub 164MAINTENANCE
4.1.5 Application of toner
NOTE
•Perform these steps when the drum and/or cleaning blade have been replaced.

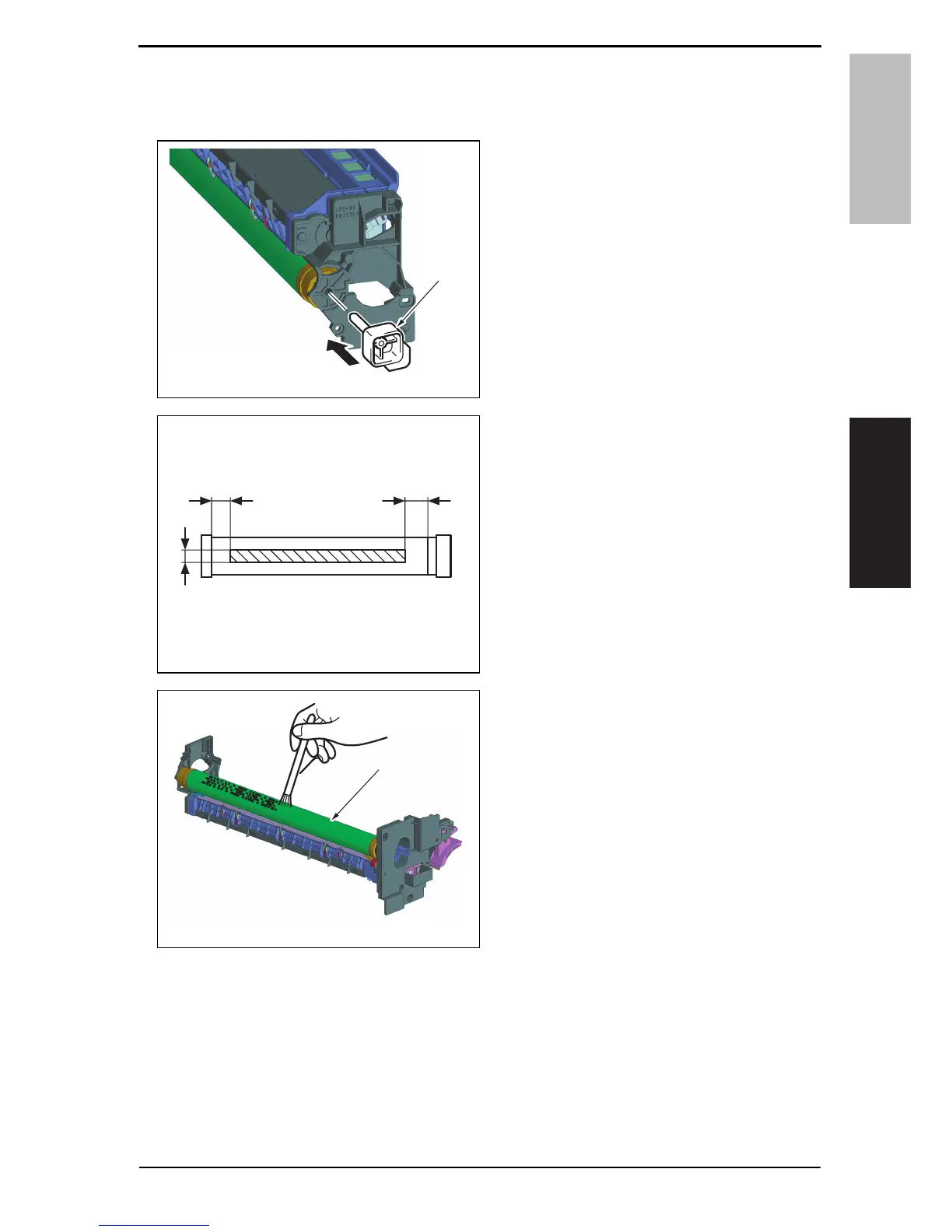

1. With the imaging unit divided into the
drum assy and developing assy,
install the drum positioning jig [1] in
the rear of the drum assy.
<<Area to which toner is to be applied>>
2. Using a brush, apply a light coat of
toner to the surface of the drum [1].
A0XXF2E529DA
[1]
A09AF2C505DA
20 to 25 mm10 to 15 mm
20 to 30 mm
Drum
A0XXF2E530DA
[1]
