Konica Minolta BIZHUB 164 Service Manual

1
4. PERIODICAL MAINTENANCE PROCEDURE Field Service Ver. 2.0 Jun. 2010
16
bizhub 164
MAINTENANCE

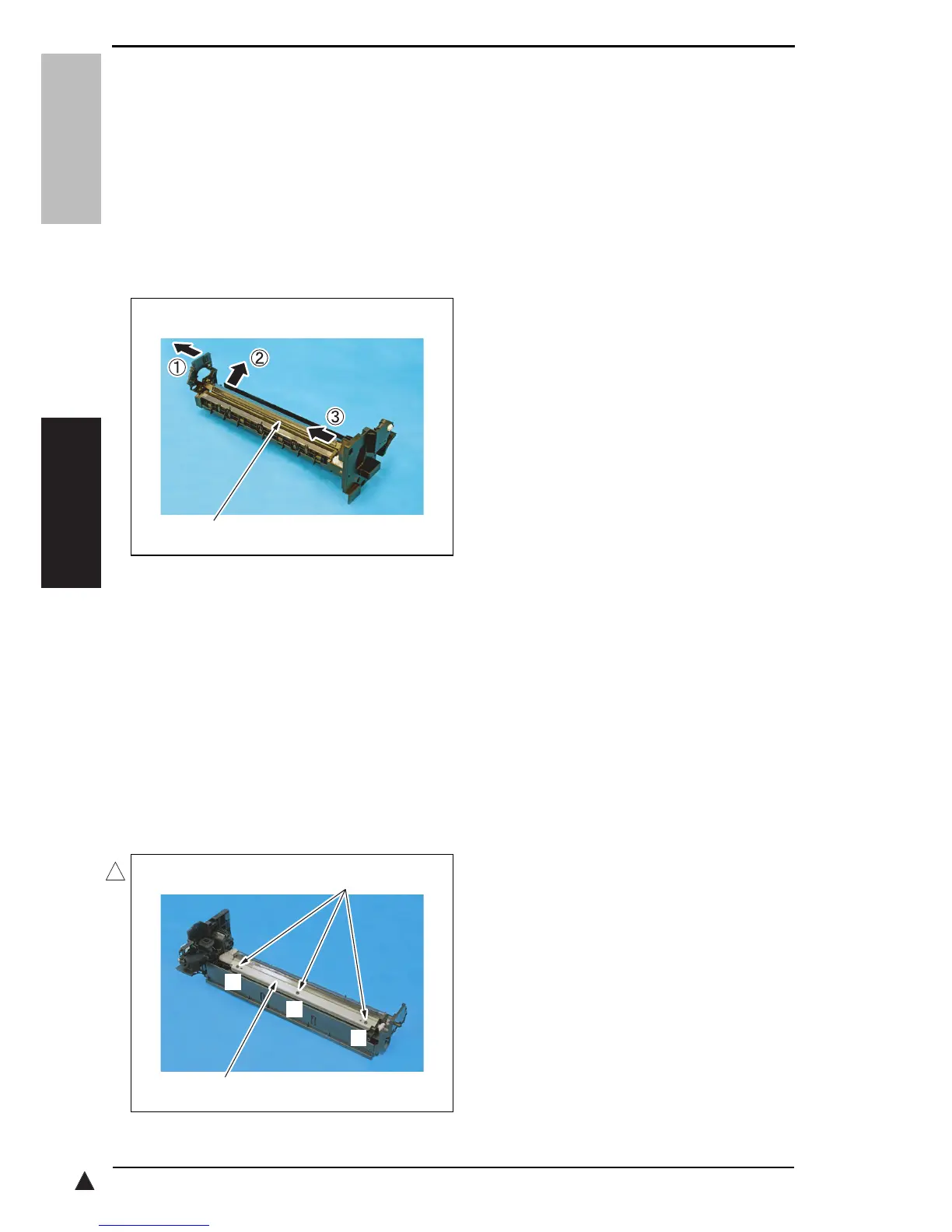

4.1.3 Replacing the drum charge corona assy
A. Periodically replacing parts/cycle
•Drum charge corona assy: Every 55,000 counts
B. Procedure
1. Remove the toner bottle.
See P.19
2. Remove the imaging unit.
See P.41
3. Remove the drum.
See P.14
4. Remove the drum charge corona [1]
as shown in the illustration.
4.1.4 Replacing the cleaning blade
A. Periodically replacing parts/cycle
•Cleaning blade: Every 55,000 counts
B. Procedure
1. Remove the toner bottle.
See P.19
2. Remove the imaging unit.
See P.41
3. Remove the drum.
See P.14
4. Remove the drum charge corona assy.
See P.16
5. Remove three screws [1], and
remove the cleaning blade [2].
NOTE
•When securing the cleaning blade,
tighten screws in the order of one
on one edge (a), one at the center
(b), and one on the other edge (c).
•When the cleaning blade has been
replaced, apply a coat of toner to
the surface of the drum.
See P.17
A0XXF2E007DA
[1]
A0XXF2E008DB
[1]
[2]
(a)
(b)
(c)
1

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
