Konica Minolta BIZHUB 164 Service Manual

5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
54
bizhub 164
MAINTENANCE

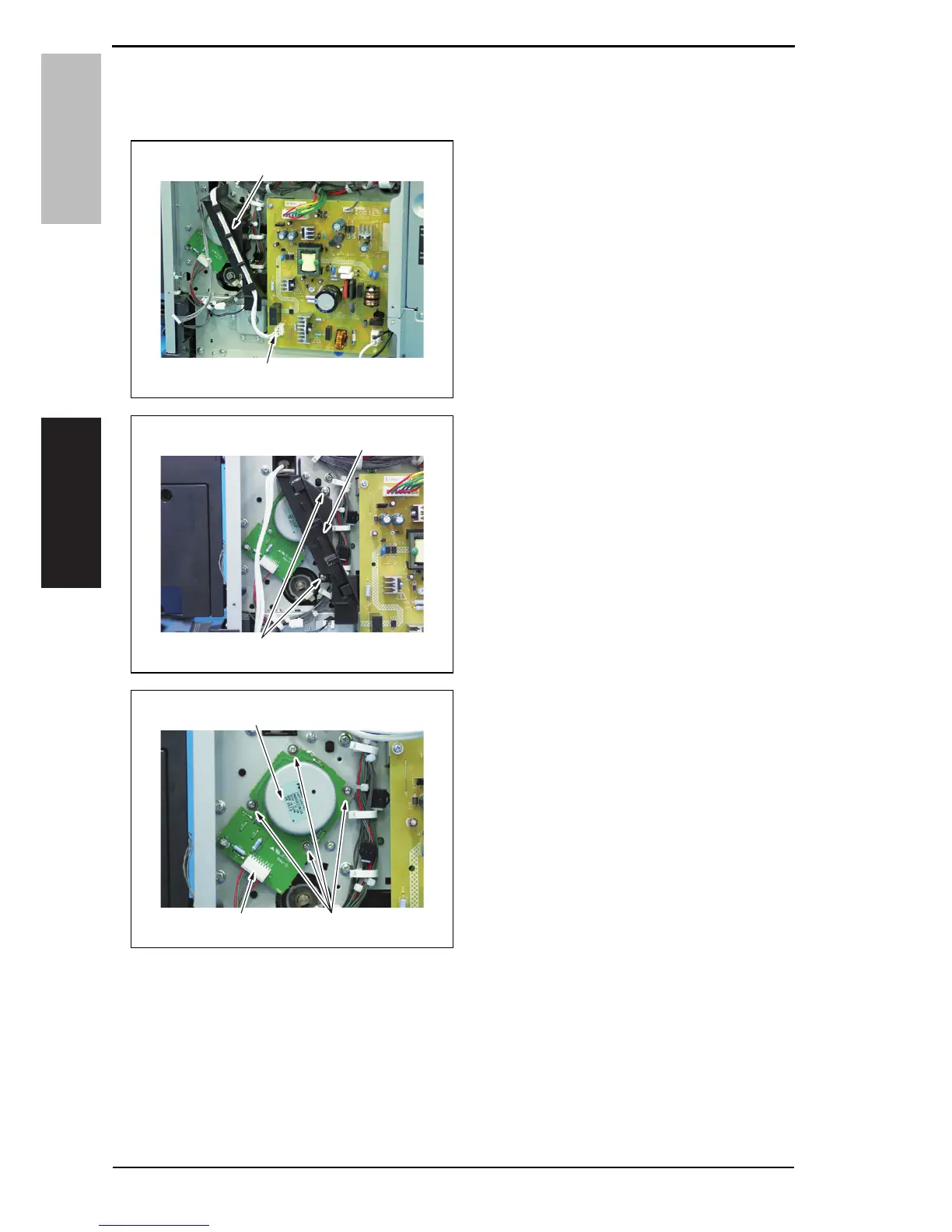

5.4.26 Main motor (M1)
1. Remove the rear cover.
See P.34
2. Disconnect the connector (CN2) [1]
on the DC power supply.
3. Remove the harness from the har-
ness guide [2].
4. Remove two screws [1], and remove
the harness guide [2].
5. Disconnect the connector [1].
6. Remove four screws (M3x 6) [2], and
remove the main motor [3].
NOTE
•When reinstalling the main motor,
be sure to use the removed screws
[2]. If you use a longer screw, it may
interfere with the gear.
7. To re in s t a l l, reve rs e th e o r de r of re mova l.
A0XXF2E015DA
[1]
[2]
A0XXF2E050DA
[2]
[1]
A0XXF2E051DA
[3]
[2][1]
