5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
34
bizhub 164
MAINTENANCE
5.4.4 Rear right cover/1, Rear right cover/2

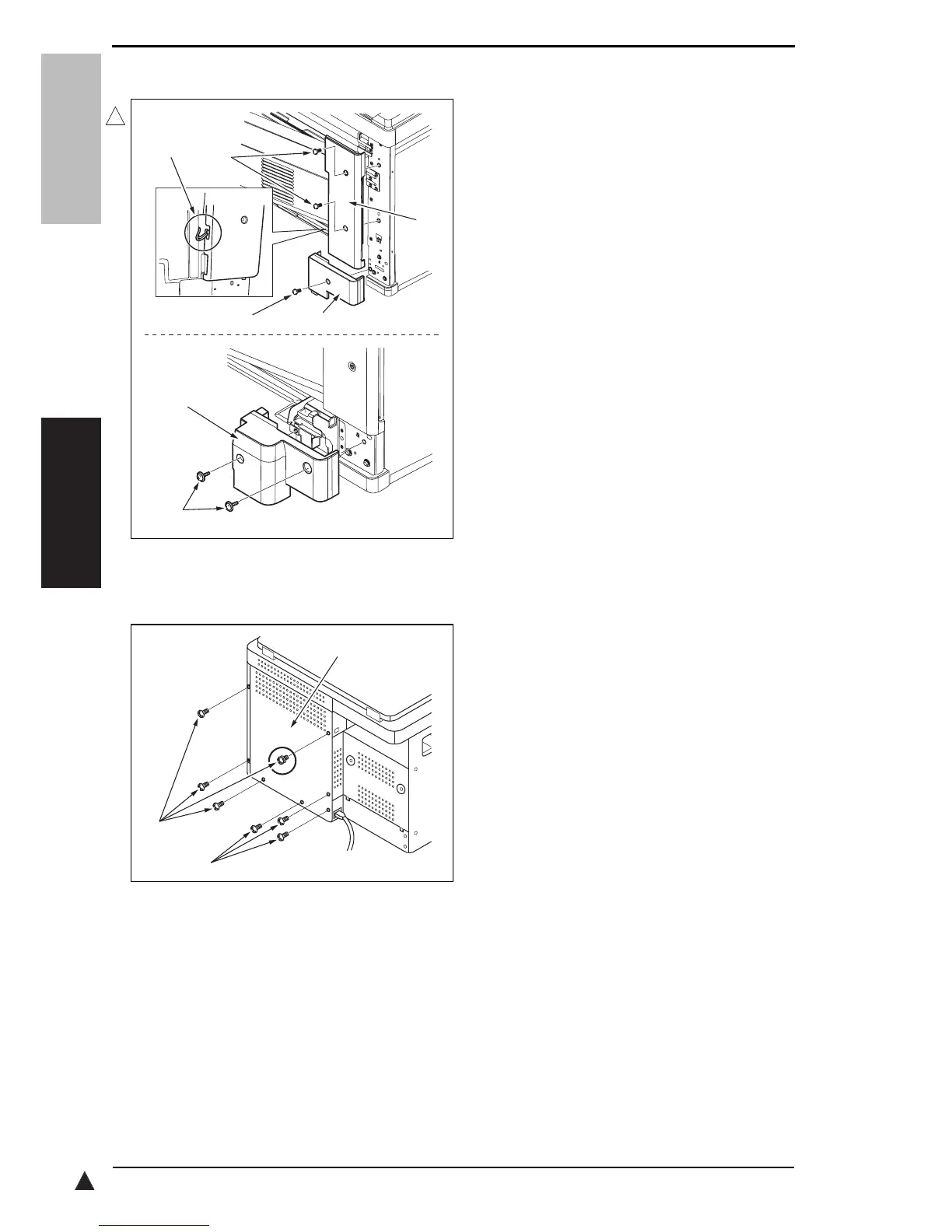

1. Remove the screw [1], and remove
the rear right cover/1 (lower) [2].
NOTE
•If the multi bypass tray is installed,
remove two screws [3].
•Remove the harness that is hung
on the guide [4].
2. Remove two screws [5], and remove
the rear right cover/2 (upper) [6].
3. To re in s t a l l, reve rs e th e o r de r of re mova l.
5.4.5 Rear cover
1. Remove seven screws [1], and
remove the rear cover [2].
NOTE
•When reinstalling the rear cover,
note that only the circled screw is
different from the other screws.
2. To re in s t a l l, reve rs e th e o r de r of re mova l.
A0XXF2E509DB
[1]
[5]
[4]
[3]
[2]
[2]
[6]
1
A0XXF2E508DA
[1]
[1]
[2]
