Konica Minolta BIZHUB 164 Service Manual

5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
46
bizhub 164
MAINTENANCE
5.4.17 Scanner unit
1. Remove the toner bottle.
See P.19
2. Remove the imaging unit.
See P.41
3. Remove the front cover.
See P.33
4. Remove the left cover.
See P.33
5. Remove the scanner right cover.
See P.35
6. Remove the rear cover.
See P.34
7. Remove the scanner rear cover.
See P.35

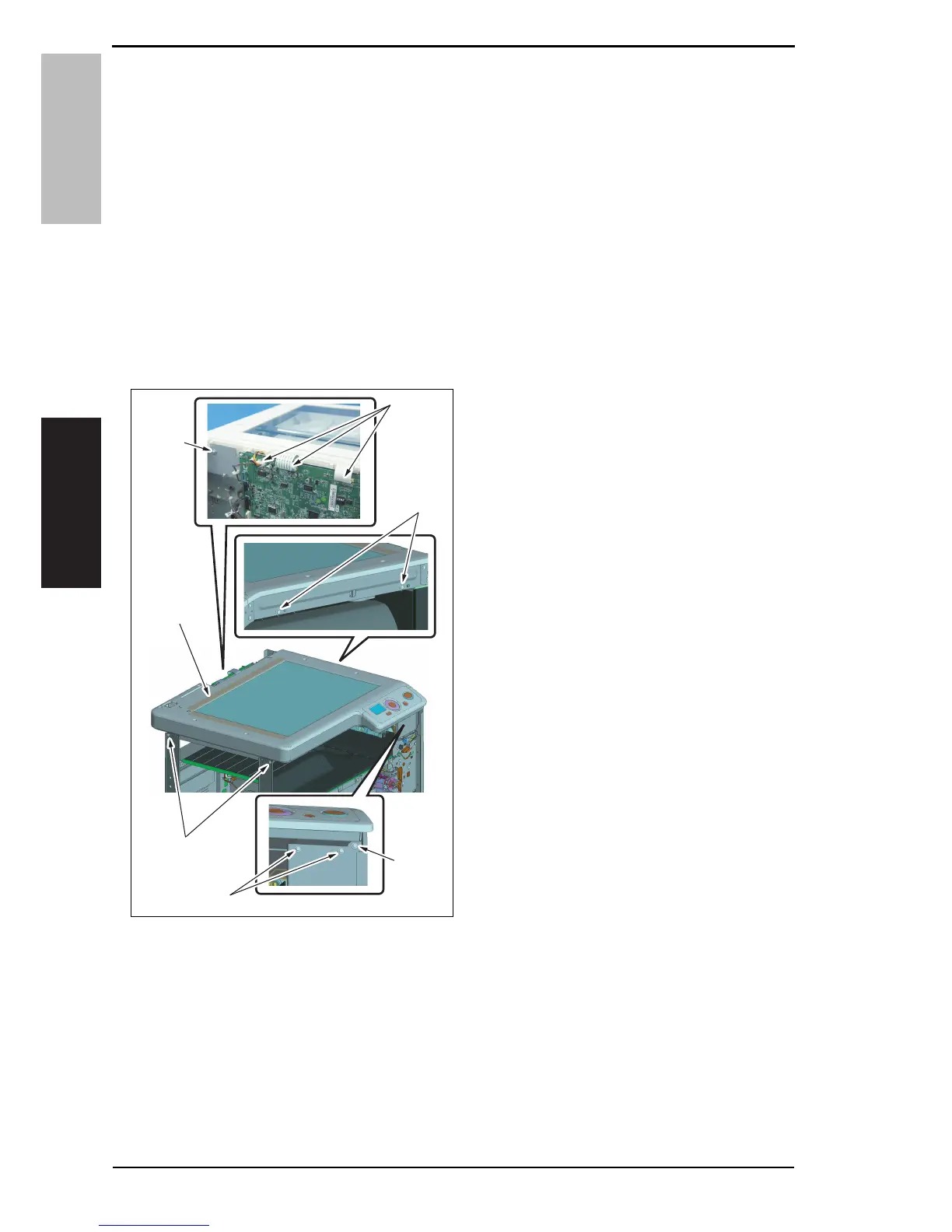

8. Disconnect three connectors [1].
9. Remove two shoulder screws [2] and
six screws [3], and remove the scan-
ner unit [4].
NOTE
•To reinstall the scanner unit, place
the machine on the top of a flat
table.
•Tighten the screws in the following
order: (a) → (b) → (c) → (d)
10. To r e i n s tal l, r eve rs e t h e or de r of r e m ova l.
NOTE
•When affixing the scale label (A0XXPP7B00) [1], align the left and rear edges of the
scale label with the left and rear protrusions on the main body.
See P.38
[3] (c)
[3] (c)
[2] (b)
[3] (d)
[4]
[1]
[3] (a)
A0XXF2E526DA
