Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 16. IMAGE QUALITY PROBLEM
159
bizhub 164
TROUBLESHOOTING

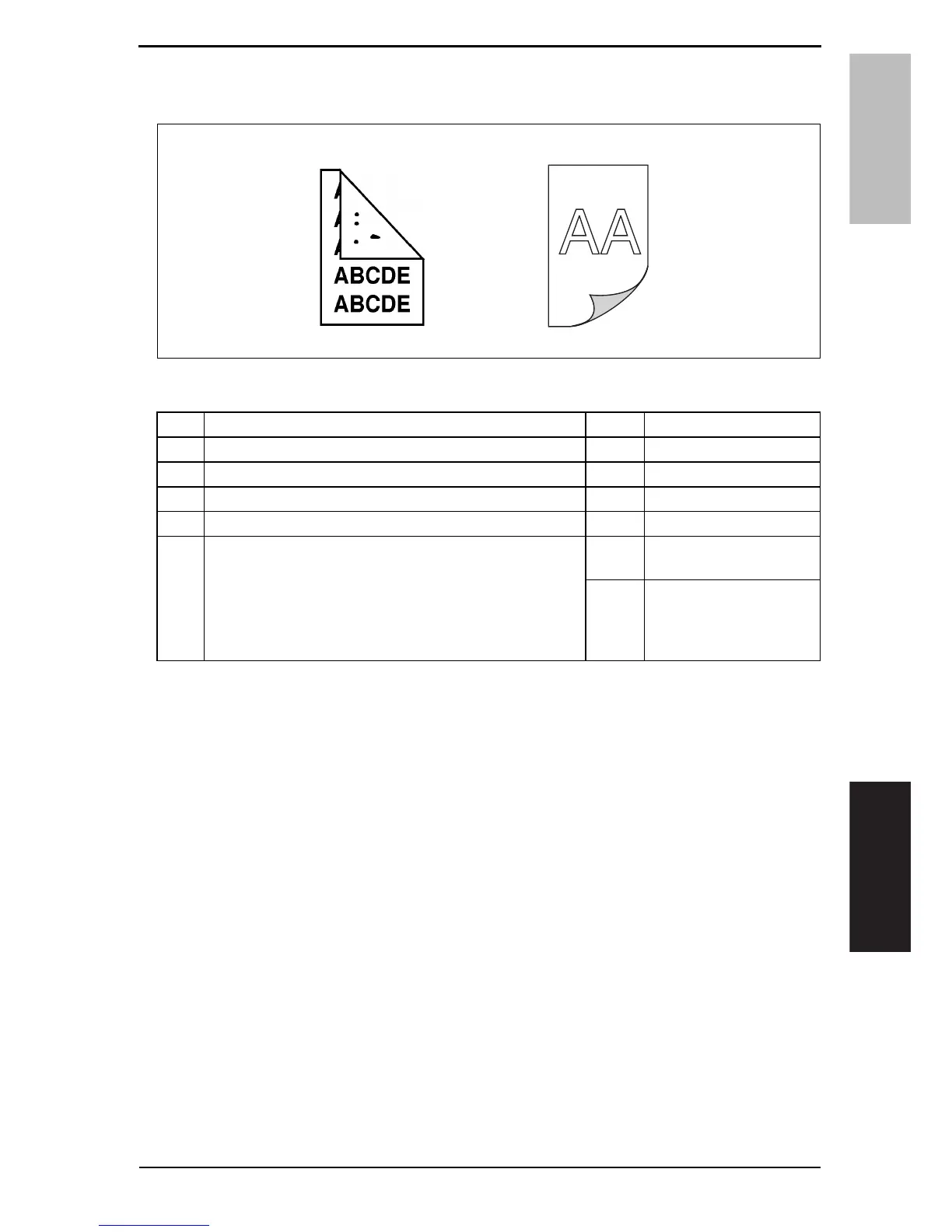

16.2.20 Printer section: Smear on back
A. Typical faulty images
B. Troubleshooting procedure
A09AF3C534DA
Step Check Result Action
1Toner is spilled over area inside copier. YES•Clean interior.
2Toner is present along the paper path. YES•Clean.
3Fusing pressure roller is dirty, scratchy, or damaged. YES•Clean or change.
4Transfer roller is dirty. YES•Clean or change.
5Grid bias contact is dirty, scratchy, deformed, worn, or
damaged.
YES • Clean, correct, or
change.
NO • Change high voltage
unit (HV1).
•Change printer control
board (PRCB).
