Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 5. OTHER MAINTENANCE ITEMS
53
bizhub 164MAINTENANCE

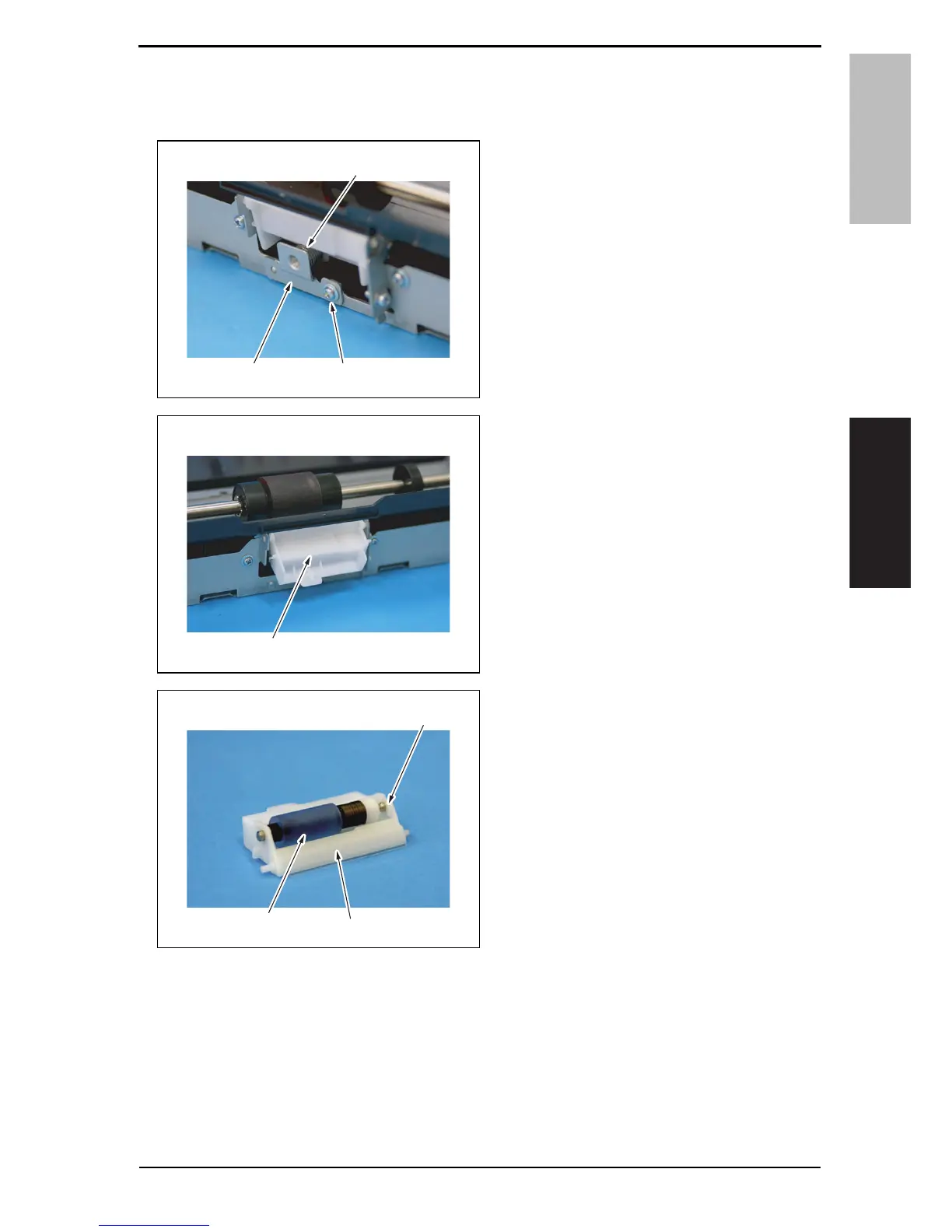

5.4.25 Multi bypass tray separation roller assy
1. Remove the multi bypass tray.
See P.40
2. Remove the screw [1].
3. Remove the fixed sheet metal [2]
and the spring [3].
4. Remove the multi bypass tray sepa-
ration roller assy [1].
5. Remove the C-clip [1], and remove
the multi bypass tray separation
roller assy [2].
NOTE
• Take care to avoid scratching or
creasing the film [3].
6. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
7. Select [SERVICE MODE] - [CLEAR DATA] - [PM COUNTER] and clear the counter
value of [BYPASS].
A0XXF2E047DA
[1][2]
[3]
A0XXF2E048DA
[1]
A0XXF2E049DA
[1]
[2]
[3]
