Konica Minolta BIZHUB 164 Service Manual

5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
56
bizhub 164
MAINTENANCE

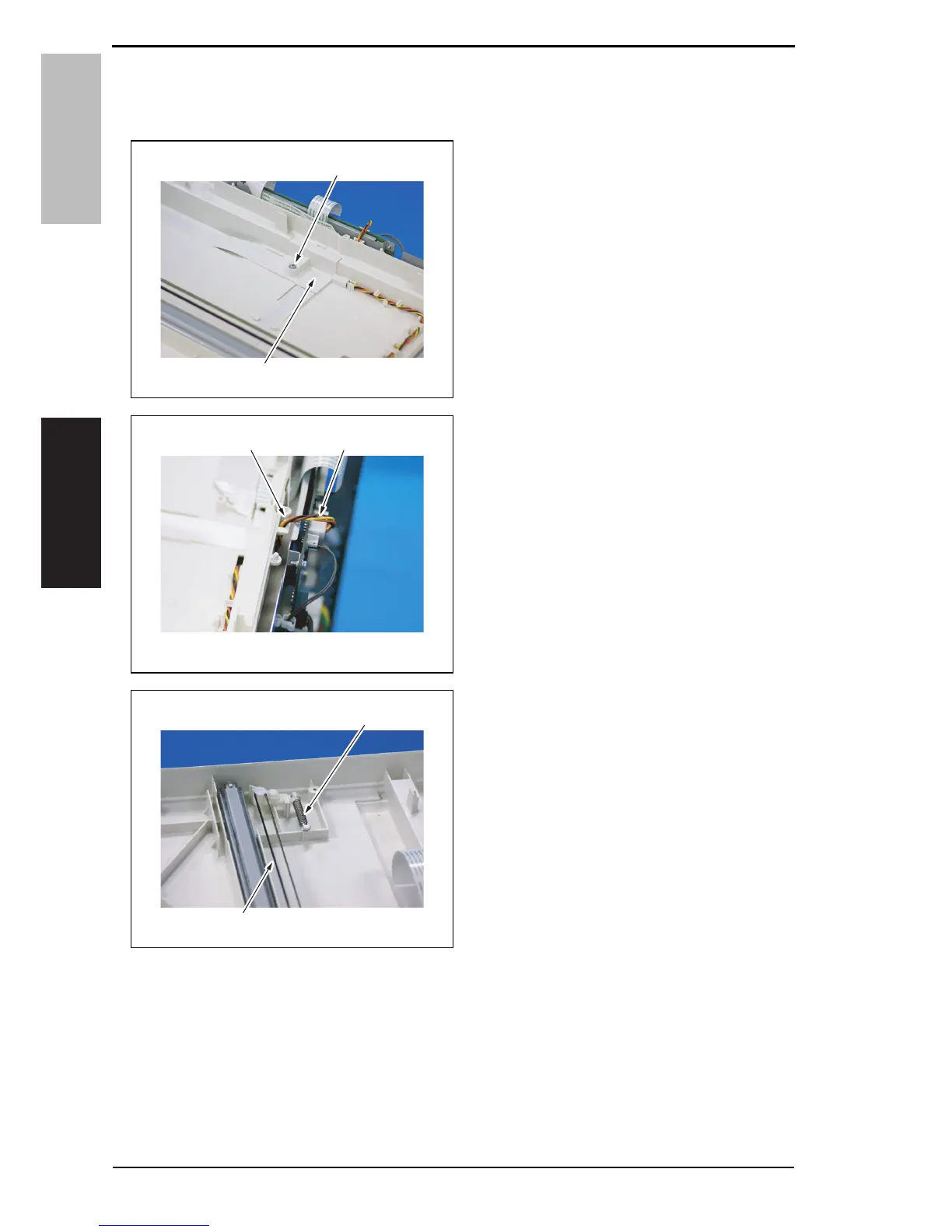

5.4.28 Scanner motor (M4)
1. Remove the original glass
See P.38
2. Remove the screw [1], and remove
the cover [2].
3. Disconnect the connector (P101) [1]
on the printer control board.
4. Pull out the harness [2].
5. Remove the spring [1] to reduce the
tension of the belt [2].
A0XXF2E031DA
[1]
[2]
A0XXF2E054DA
[2] [1]
A0XXF2E055DA
[2]
[1]
