5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
50
bizhub 164
MAINTENANCE

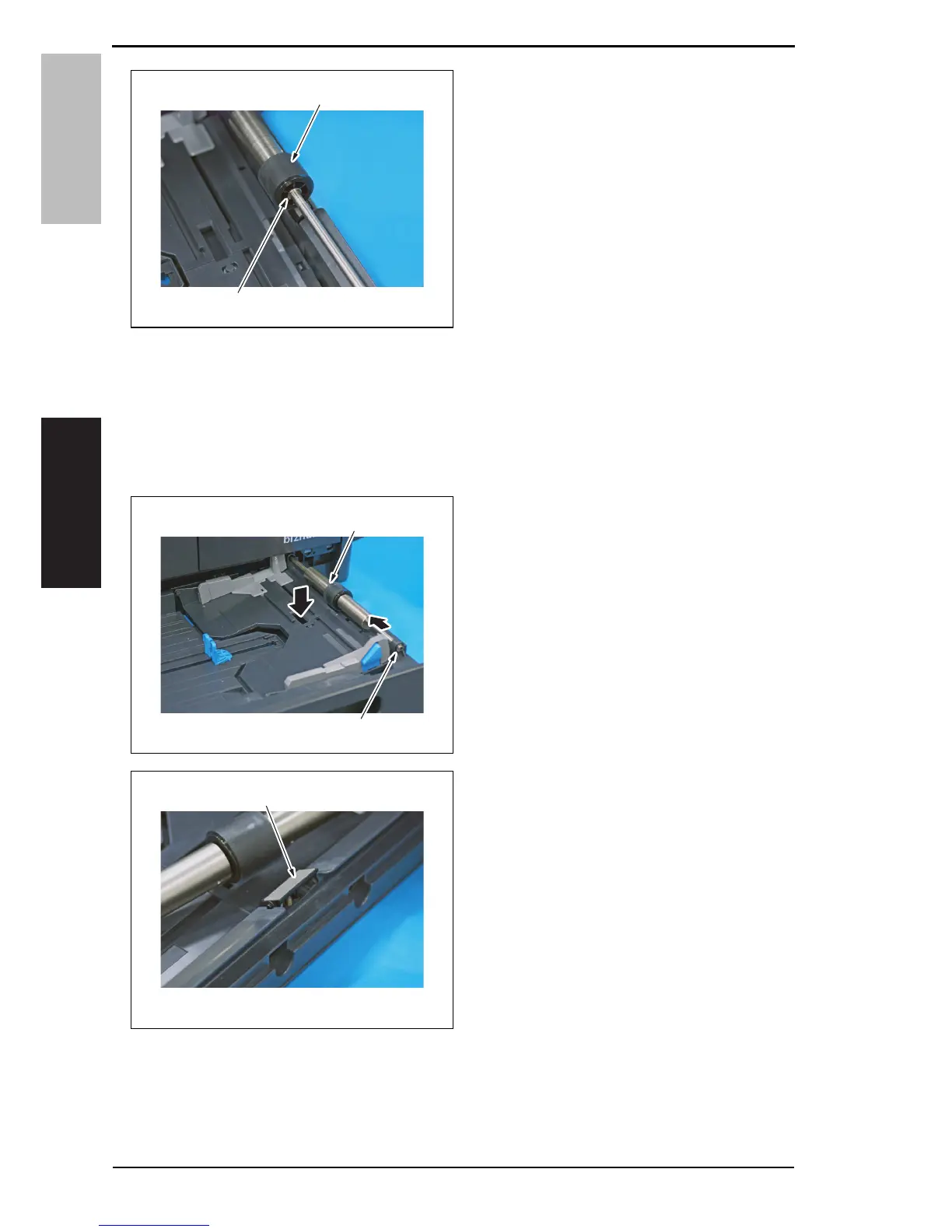

6. Snap off the E-ring [1], and remove
the tray1 feed roller [2].
7. To re in s t a l l, reve rs e th e o r de r of re mova l.
8. Tur n O N t h e p owe r sw it c h .
9. Select [SERVICE MODE] - [CLEAR DATA] - [PM COUNTER] and clear the counter
value of [TRAY1].
5.4.22 Tray 1 separation pad
1. Slide out the tray 1.
2. Press down the paper lifting plate.
3. Snap off the E-ring [2] from the feed
roller assy [1].
4. Slide the feed roller assy [1] to the
rear and pull it off the bushing at the
front.
5. Remove the tray 1 separation pad
[1].
NOTE
•Be careful not to lose spring at this
time.
6. To re in s t a l l, reve rs e th e o r de r of re mova l.
7. Tur n O N t h e p owe r sw it c h .
8. Select [SERVICE MODE] - [CLEAR DATA] - [PM COUNTER] and clear the counter
value of [TRAY1].
A0XXF2E042DA
[2]
[1]
A0XXF2E040DA
[1]
[2]
A0XXF2E043DA
[1]
