Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 5. OTHER MAINTENANCE ITEMS
47
bizhub 164MAINTENANCE

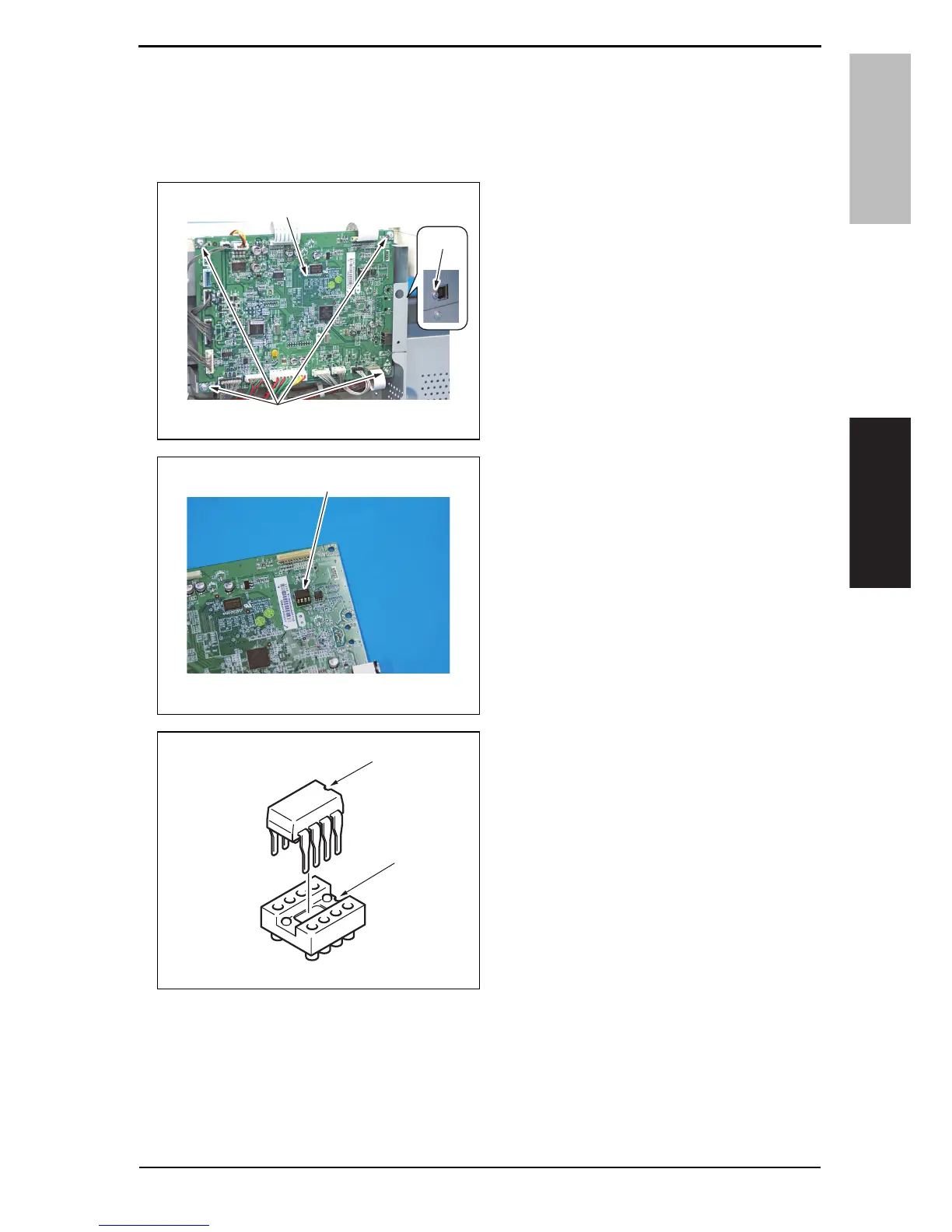

5.4.18 Printer control board (PRCB)
1. Remove the rear cover.
See P.34
2. Remove the scanner rear cover.
See P.35
3. Disconnect all connectors from the
printer control board.
4. Remove five screws [1], and remove
the printer control board [2].
NOTE
•When the printer control board
(PRCB) is replaced with a new one,
EEPROM (U8) [1] must be
demounted from the old PRCB and
remounted on the new PRCB.
Mount the EEPROM (U8) [1] of the
old PRCB on the new PRCB.
NOTE
• Note the alignment notch marked
with A on the EEPROM (U8) when
mounting the IC.
5. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
NOTE
•When the printer control board is to be replaced, rewriting both the controller and
engine firmware to the latest one.
See P.64
A0XXF2E035DA
[1]
[1]
[2]
A0XXF2E036DA
[1]
A
A
A0XXF2E518DA

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
