Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 4. PERIODICAL MAINTENANCE PROCEDURE
19
bizhub 164MAINTENANCE
4.1.6 Replacing the toner bottle
A. Periodically replacing parts/cycle
•Toner bottle (TN116): Every 11,000 prints
B. Procedure
NOTE
•Do not install or remove the toner bottle while the imaging unit is not installed.
Doing so can cause a toner spill.

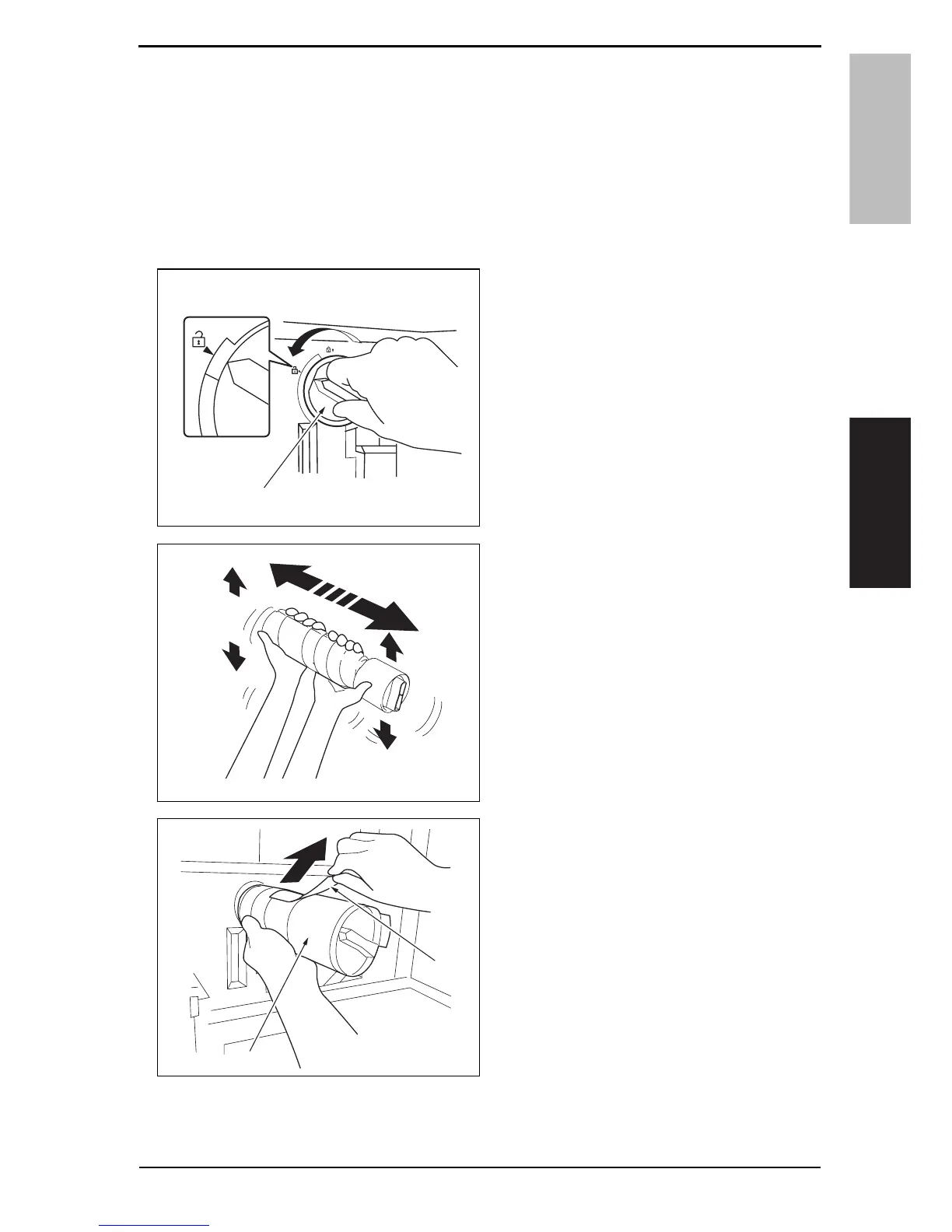

1. Open the front door.
2. Rotate the empty toner bottle [1]
counterclockwise to unlock it.
3. Pull out the toner bottle [1].
4. Remove the new toner bottle from its
packaging, and shake it side to side
5 to 10 times.
5. Insert the toner bottle [1] into the
machine a little.
6. While holding the seal of the toner
bottle up, slowly peel off the seal [2].
A0XXF2C500DA
[1]
A0XXF2C501DA
A0XXF2C502DA
[1]
[2]
