Field Service Ver. 2.0 Jun. 2010 5. OTHER MAINTENANCE ITEMS
35
1
bizhub 164MAINTENANCE

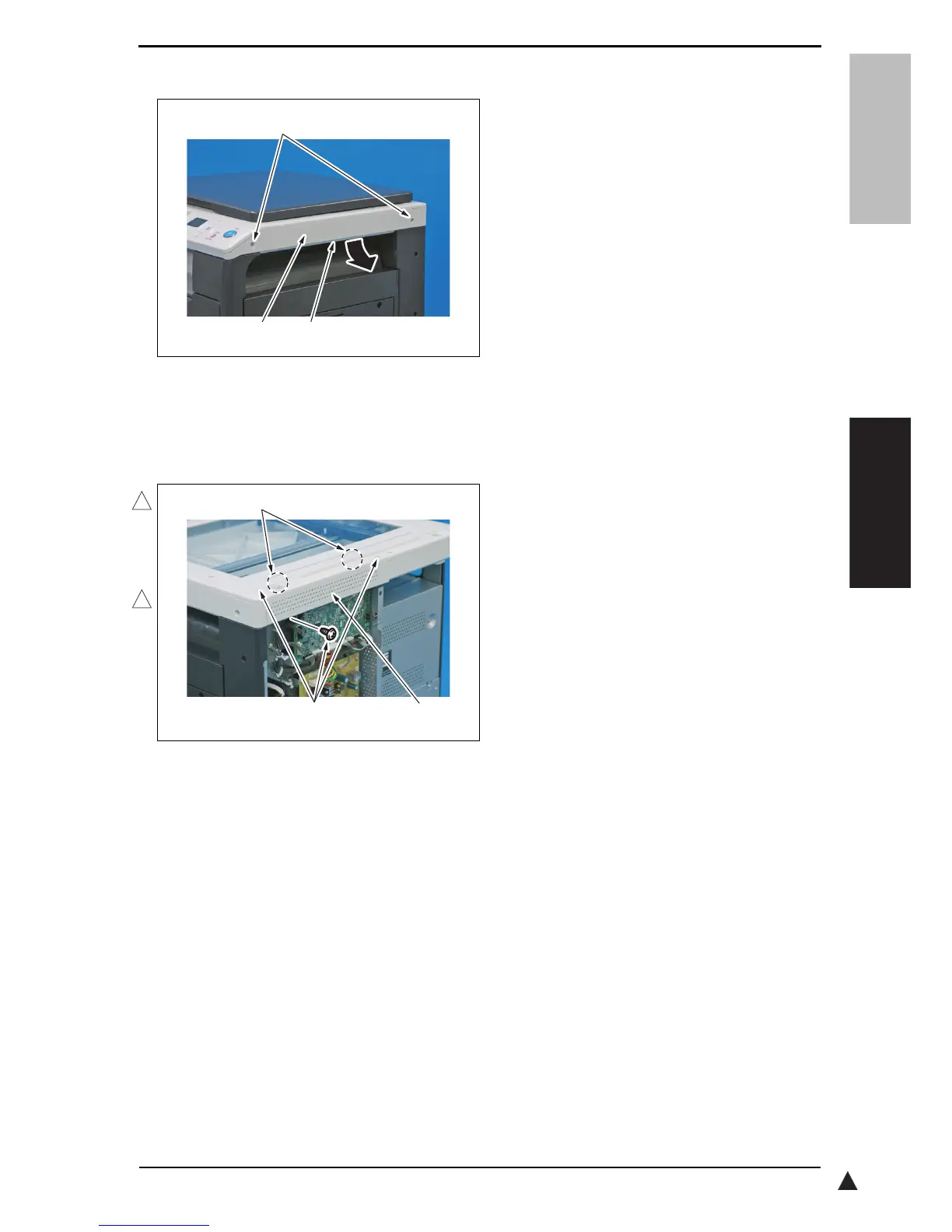

5.4.6 Scanner right cover
1. Remove two screws [1], and remove
the scanner right cover [2].
NOTE
•While releasing the tab [3], remove
the cover as shown in the illustra-
tion.
2. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
5.4.7 Scanner rear cover
1. Remove the rear cover.
See P.34
2. Remove three screws [1], and
remove the scanner rear cover [2].
NOTE
•When reinstalling the scanner rear
cover, completely insert its two tabs
[3] into the holes of the scanner.
3. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
A0XXF2E022DA
[1]
[2]
[3]
A0XXF2E023DB
[3]
[1] [2]
1
1
