Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 17. PARTS LAYOUT DRAWING
163
bizhub 164APPENDIX
APPENDIX

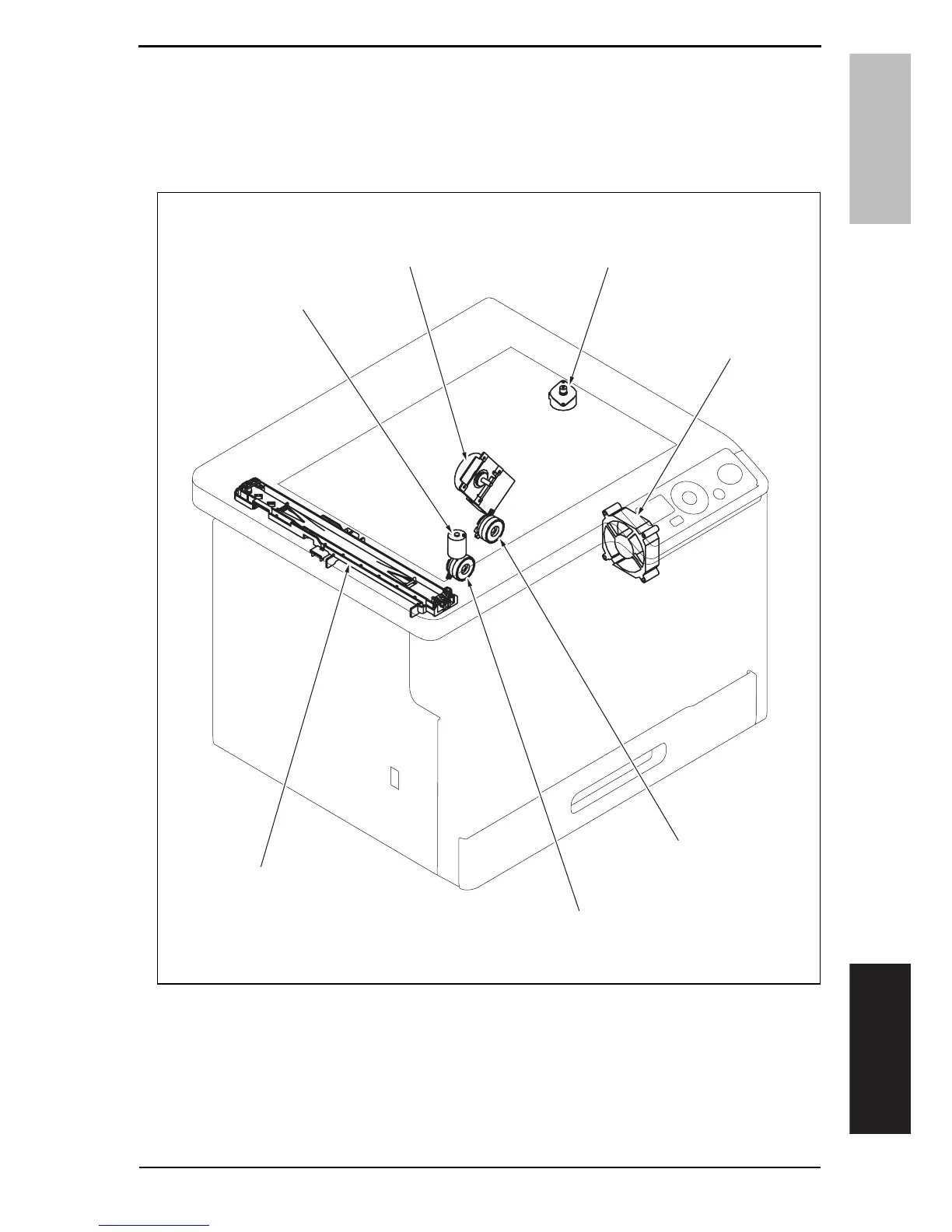

17. PARTS LAYOUT DRAWING
17.1 Main body
[1] Scanner motor (M4) [2] DC power supply fan motor (FM5)
[3] Registration clutch (CL1) [4] Tray1 paper feed clutch (CL2)
[5] CIS module (CIS) [6] Toner supply motor (M2)
[7] Main motor (M1)
A0XXF5C500DA
[1]
[2]
[3]
[4]
[5]
[6]
[7]

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
