Field Service Ver. 2.0 Jun. 2010 13. JAM DISPLAY
121
bizhub 164
TROUBLESHOOTING
TROUBLESHOOTING
13. JAM DISPLAY
13.1 Misfeed display

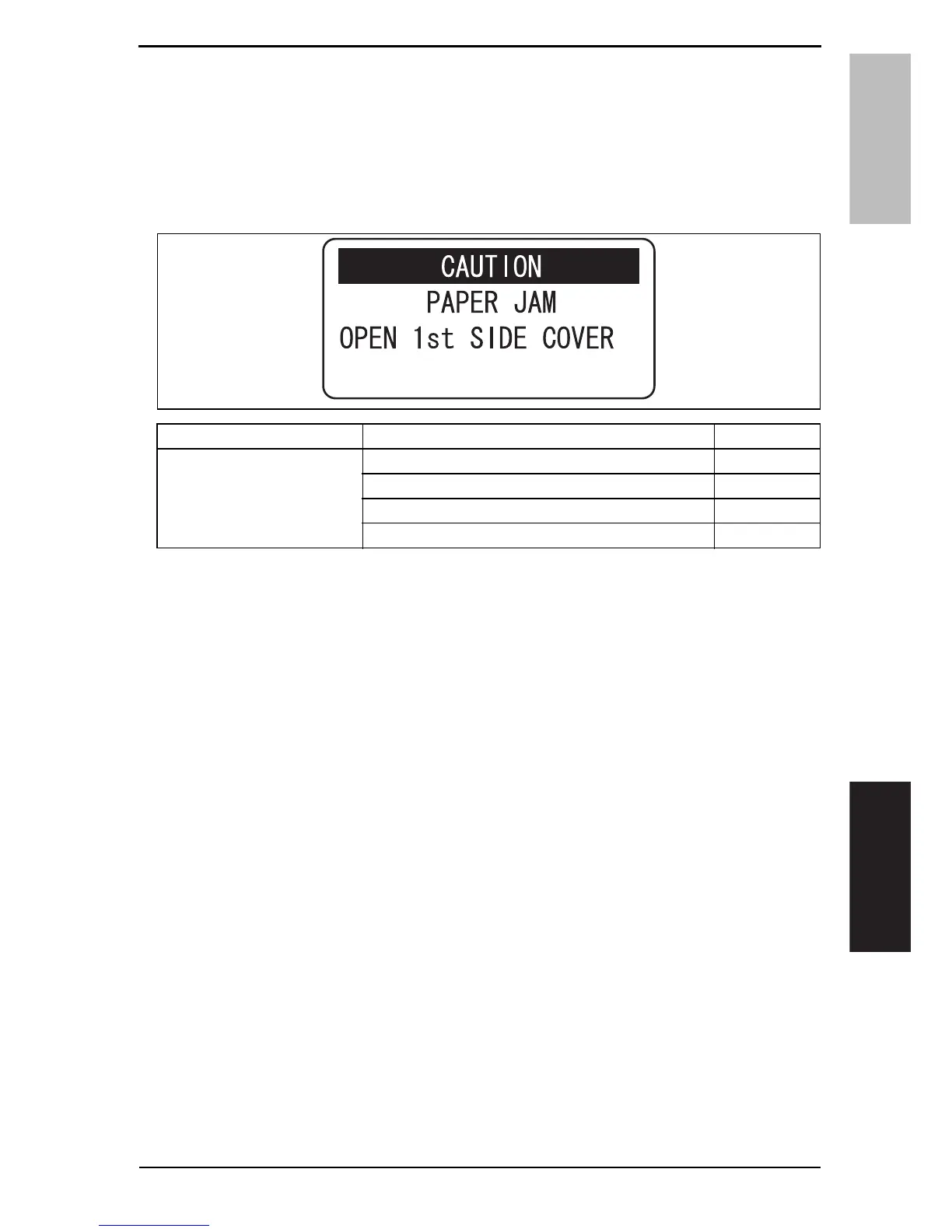

•When a paper misfeed occurs, the error indicator lights up steadily and the display gives
a corresponding message.
*1: Only when the multi bypass tray MB-503 is mounted.
13.1.1 Display resetting procedure
•Open the 1st side cover, clear the sheet of paper misfed, and close the cover.
Display message Misfeed/paper location Ref. page
OPEN 1st SIDE COVER
Tray 1 paper feed section P. 1 2 4
Bypass tray paper feed section *1 P. 1 2 5
Image transfer section P. 1 2 6
Fusing/paper exit section P. 1 2 7
A0XXF4E501DA
