Konica Minolta BIZHUB 164 Service Manual

16. IMAGE QUALITY PROBLEM Field Service Ver. 2.0 Jun. 2010
152
bizhub 164
TROUBLESHOOTING

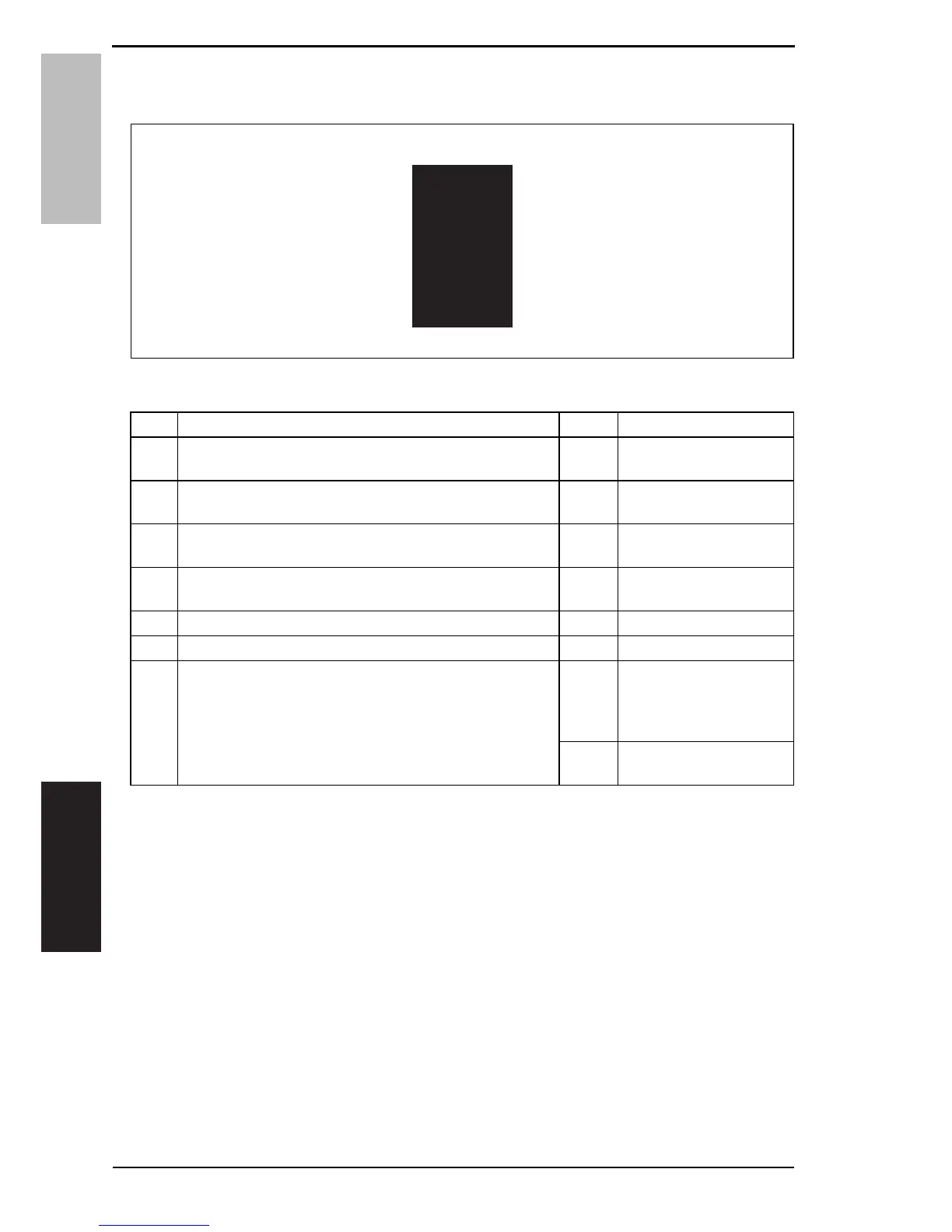

16.2.13 Printer section: Black copy
A. Typical faulty images
B. Troubleshooting Procedure
A09AF3C523DA
Step Check Result Action
1Drum charge corona grid mesh and comb electrode are
loose.
YES • Reinstall.
2Drum charge corona contact is dirty, scratchy, folded, bent,
or damaged.
YES • Correct or change.
3Grid bias contact is dirty, folded, or bent. YES•Clean, correct, or
change.
4Drum ground contact is dirty, scratchy, bent, or damaged. YES•Clean, correct, or
change.
5High voltage unit (HV1) connectors is loose. YES • Reconnect.
6The PH unit cable is loose. YES•Reconnect.
7The following voltage is supplied from the printer control
board (PRCB).
<Check procedure>
Check that there is 24 V developing across the printer con-
trol board pin and GND when the power switch is turned
ON (during a copy cycle or a standby state).
YES • Change IU.
•Change PH unit.
•Change high voltage
unit (HV1).
NO • Change printer control
board (PRCB).
