Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 5. OTHER MAINTENANCE ITEMS
39
bizhub 164MAINTENANCE

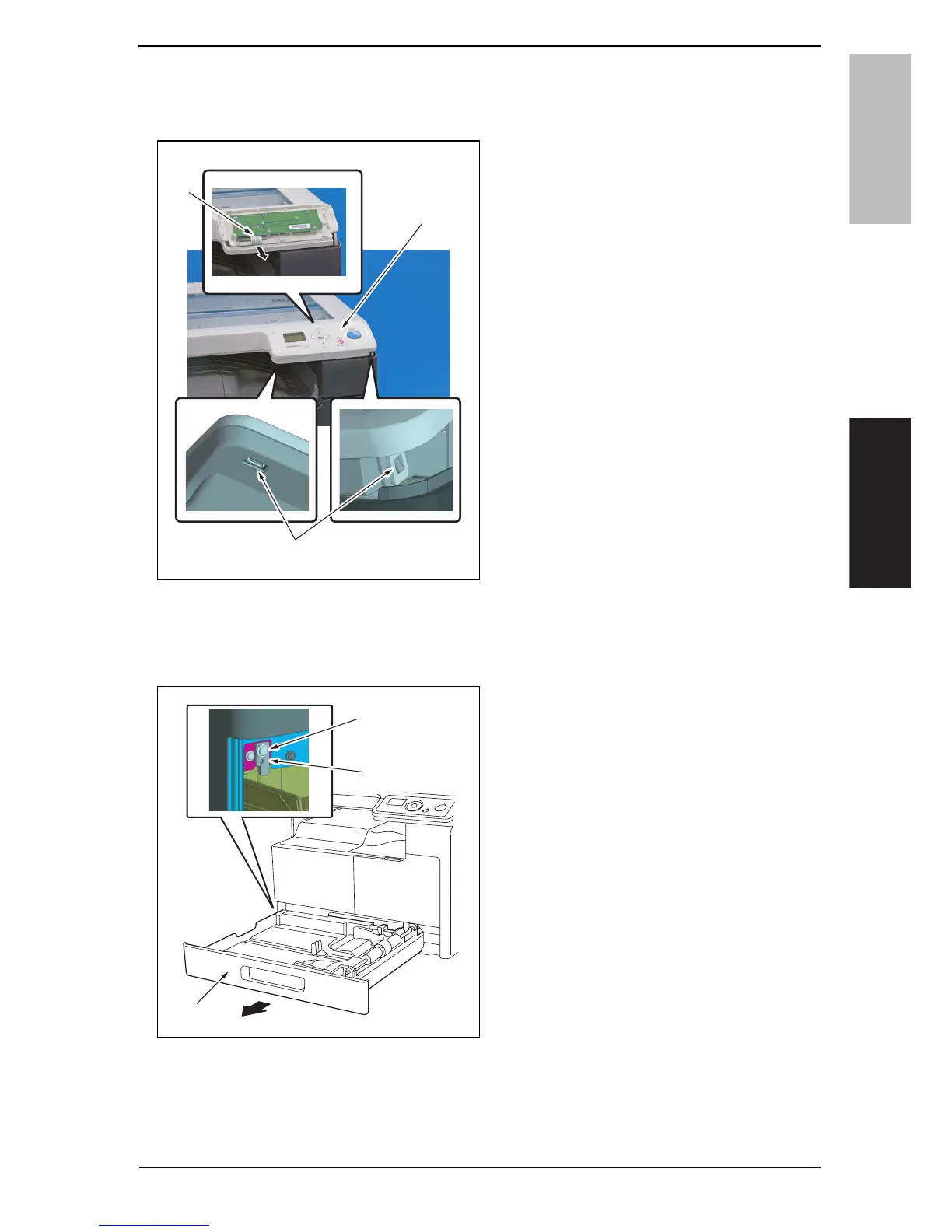

5.4.10 Operation panel
1. Remove the scanner right cover.
See P.35
2. Unlock two tabs [1].
3. Disconnect the flat cable [2], and
remove the operation panel [3].
4. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
5.4.11 Tray 1
1. Slide out the tray 1.
2. Remove the screw [1], and remove
the fixed sheet metal [2].
3. Remove the tray 1 [3].
4. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
[2]
[3]
A0XXF2E523DA
[1]
A0XXF2E512DA
[2]
[1]
[3]

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
