Konica Minolta BIZHUB 164 Service Manual

4. PERIODICAL MAINTENANCE PROCEDURE Field Service Ver. 2.0 Jun. 2010
14
bizhub 164
MAINTENANCE

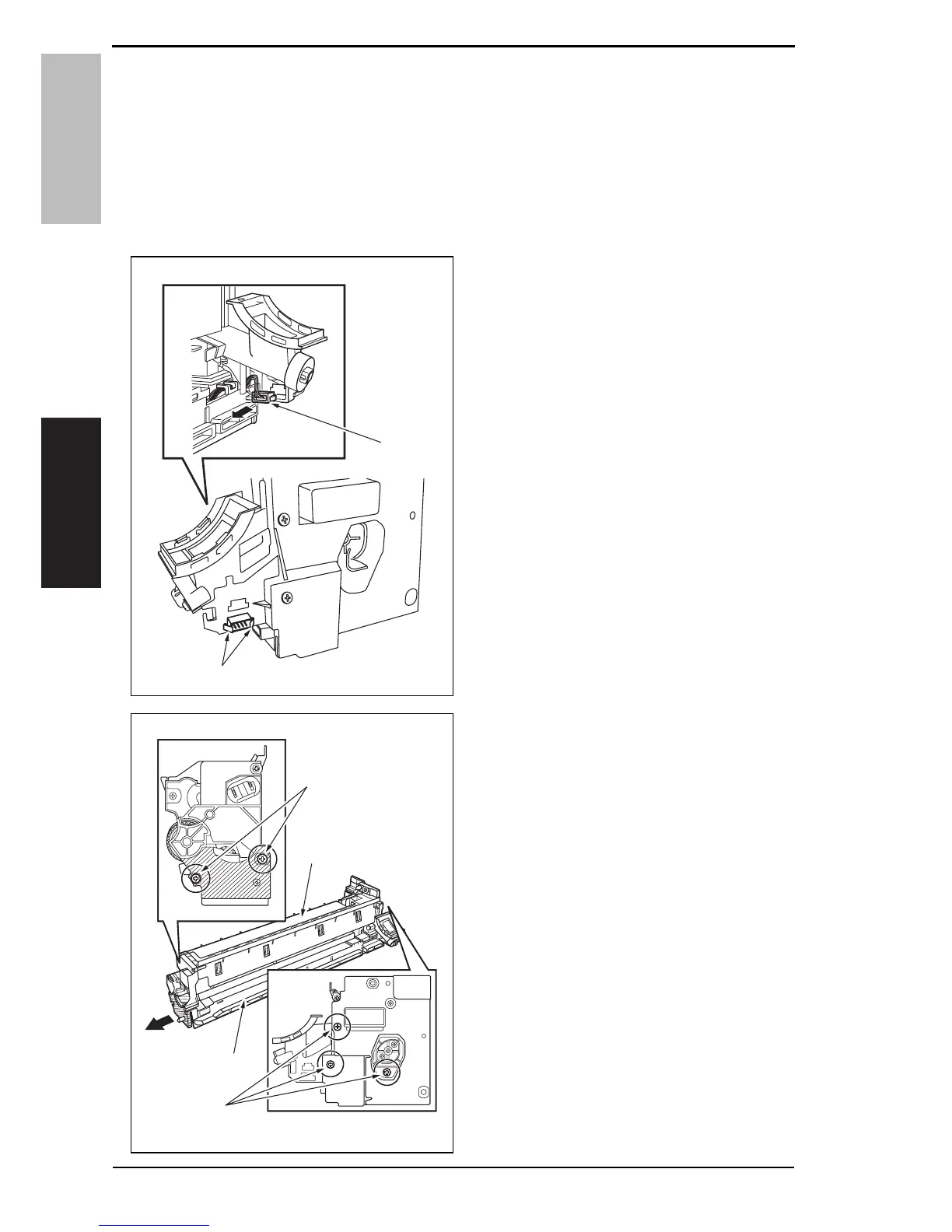

4.1.2 Replacing the drum
A. Periodically replacing parts/cycle
•Drum: Every 55,000 counts
B. Procedure
1. Remove the toner bottle.
See P.19
2. Remove the imaging unit.
See P.41
3. Release the tabs [1] and disconnect
the connector [2] from the imaging
unit.
4. Remove two screws [1] in the rear of
the imaging unit.
5. Remove three screws [2] at the front
of the imaging unit.
6. While slightly pulling the area below
the drum (diagonally shaded area) in
the direction of arrow, separate the
drum unit [3] from the developing unit
[4].
A0XXF2E513DA
[1]
[2]
A0XXF2E514DA
[2]
[1]
[3]
[4]

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
