Konica Minolta BIZHUB 164 Service Manual

5. OTHER MAINTENANCE ITEMS Field Service Ver. 2.0 Jun. 2010
38
bizhub 164
MAINTENANCE

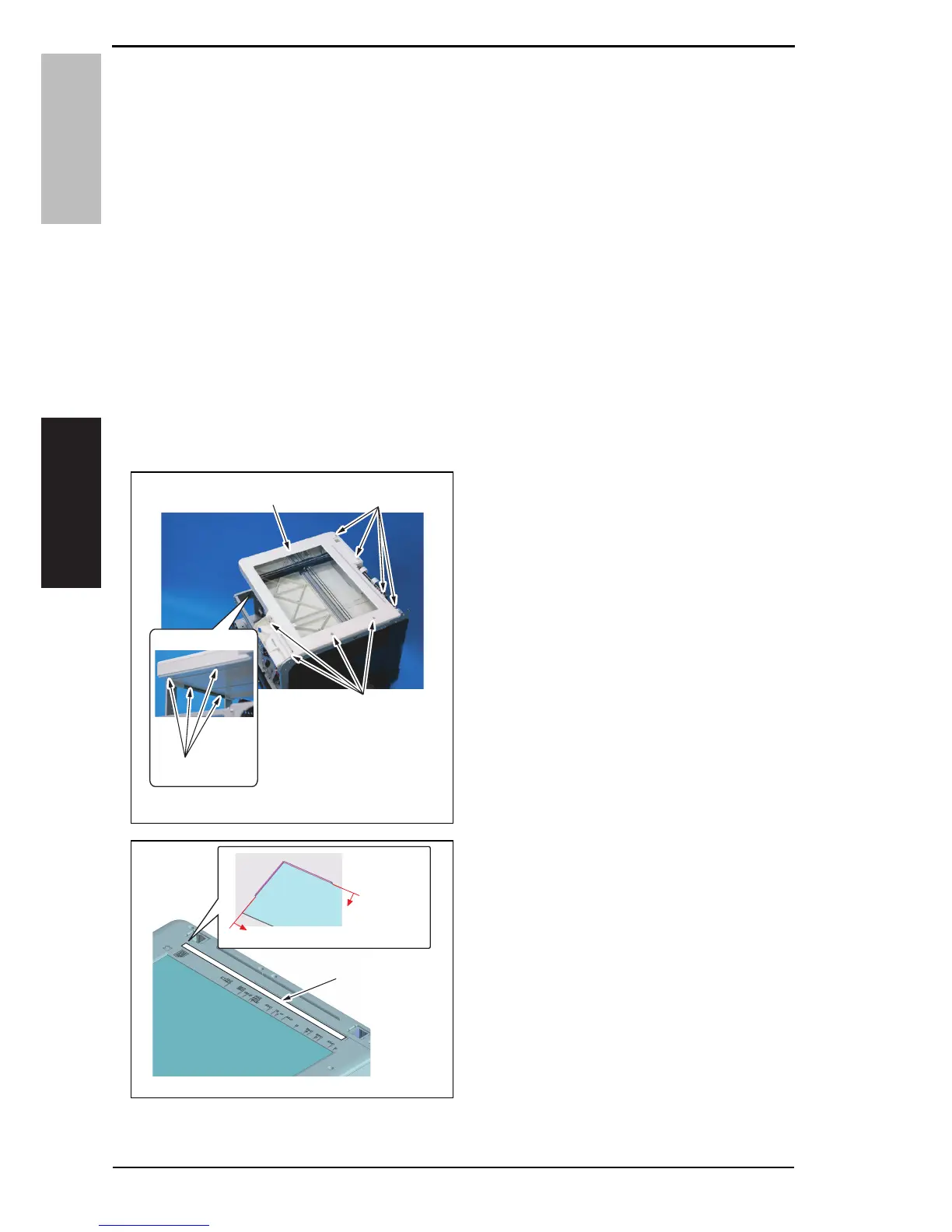

5.4.9 Original glass
1. Remove the left cover.
See P.33
2. Remove the scanner right cover.
See P.35
3. Remove the operation panel.
See P.39
4. Remove the rear cover.
See P.34
5. Remove the scanner rear cover.
See P.35
6. Remove the toner bottle.
See P.19
7. Remove the imaging unit.
See P.41
8. Remove the front cover.
See P.33
9. Remove the paper exit tray (left) and paper exit tray (right).
See P.36
10. Remove twelve screws [1], and
remove the original glass [2].
11. To r ei ns t a l l, reve rs e th e ord er o f
removal.
NOTE
•When affixing the scale label
(A0XXPP7B00) [1] during the
replacement of the original glass,
align the left and rear edges of the
scale label with the left and rear
protrusions on the main body.
A0XXF2E026DA
[2] [1]
[1]
[1]
0 to 0.5mm
0 to 0.5mm
A0XXF2C540DA
[1]

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
