Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 16. IMAGE QUALITY PROBLEM
155
bizhub 164
TROUBLESHOOTING

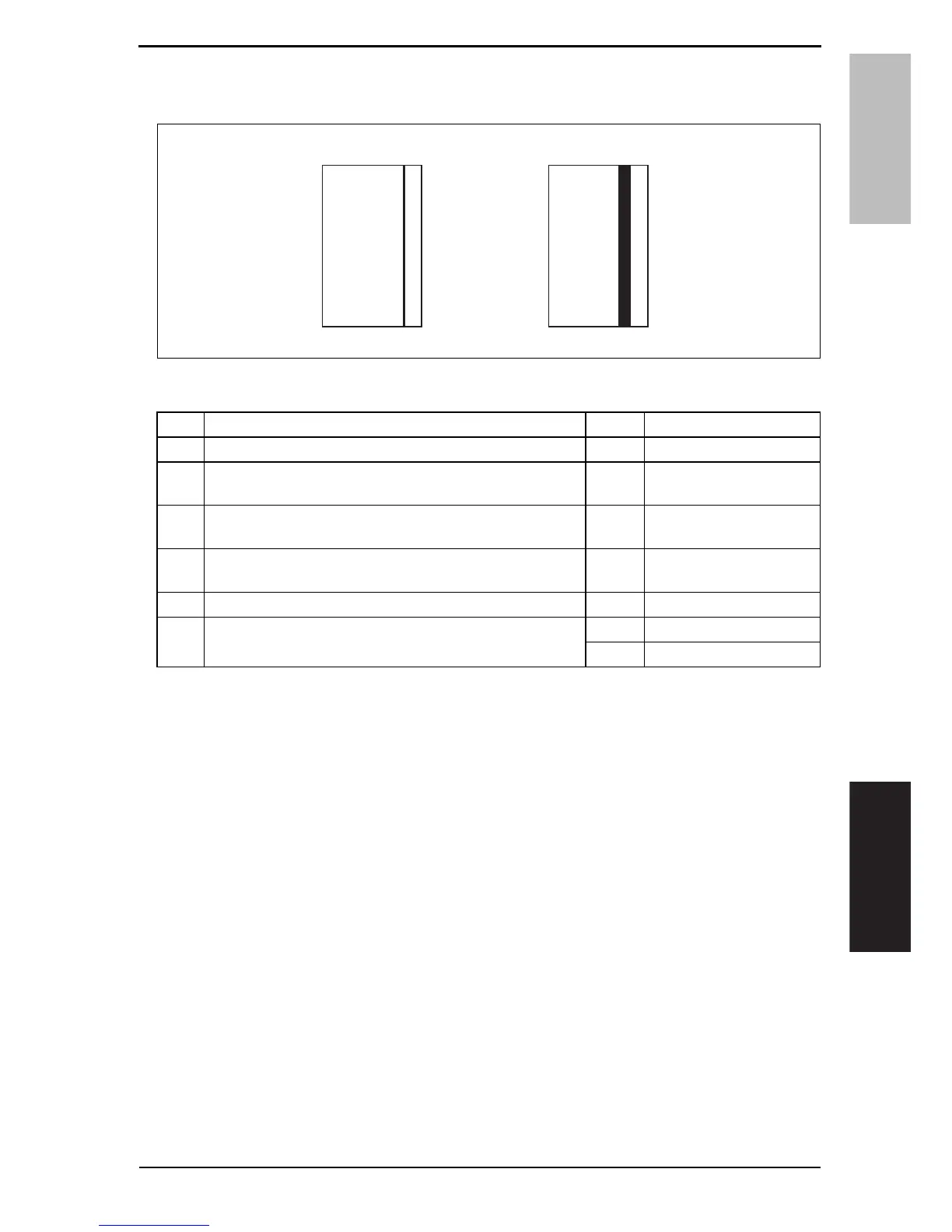

16.2.16 Printer section: black streaks or bands
A. Typical faulty images
B. Troubleshooting procedure
A09AF3C526DA
Black streaks Black bands
Step Check Result Action
1Drum is dirty or scratchy. YES•Clean or change.
2Foreign matter (such as paper dust) sticks to the cleaning
blade of IU or the blade curves upward.
YES • Remove foreign matter,
correct, or change.
3DB of IU is plugged with foreign matter
(such as paper dust).
YES • Remove foreign matter.
4Drum charge corona grid mesh and comb electrode are
dirty, scratchy, deformed, damaged, or out of position.
YES • Clean or change.
5Fusing roller is dirty or scratchy. YES•Clean or change.
6PH window of the PH unit is dirty or scratchy. YES•Clean or change.
NO • Change IU.
