Konica Minolta BIZHUB 164 Service Manual

Field Service Ver. 2.0 Jun. 2010 5. OTHER MAINTENANCE ITEMS
57
bizhub 164MAINTENANCE

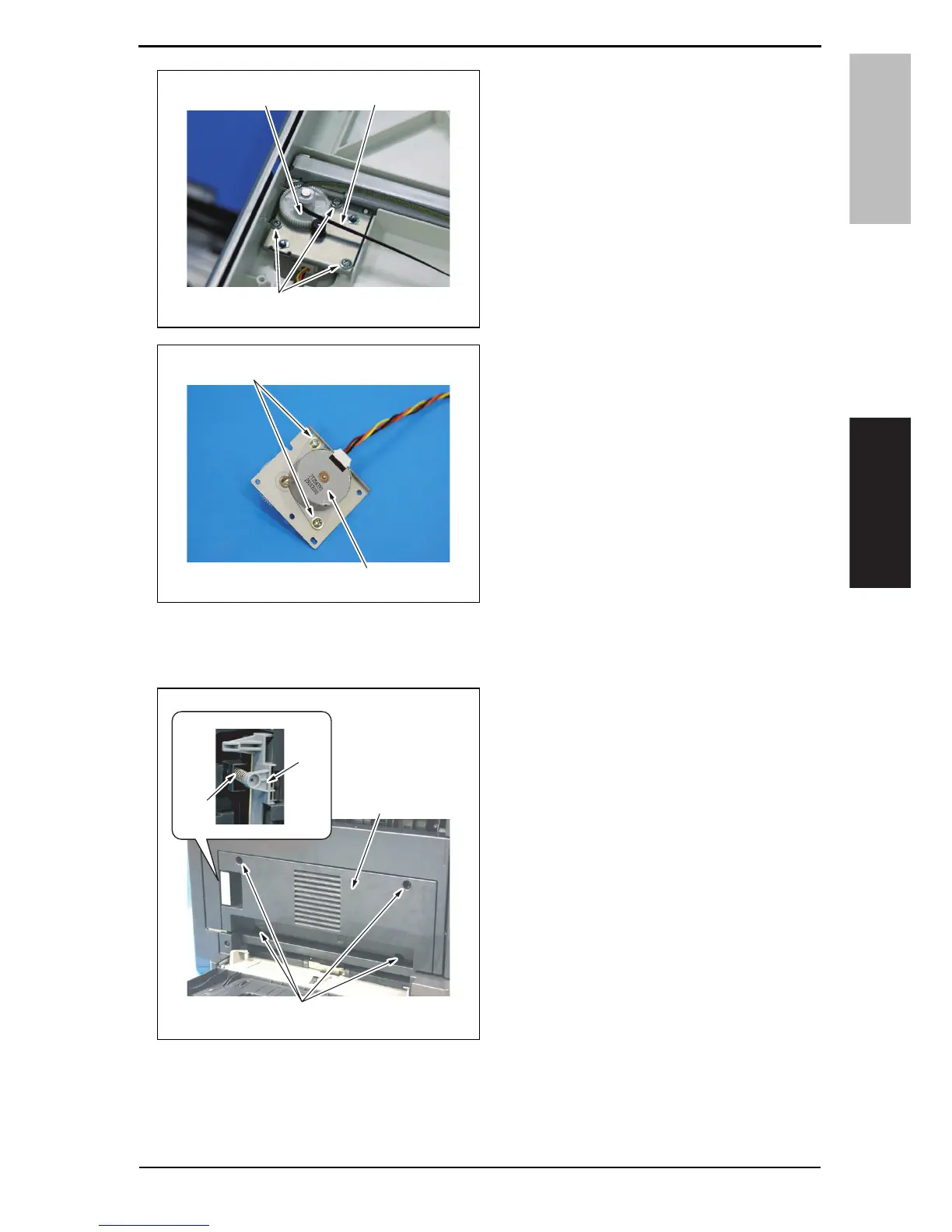

6. Remove the belt [1].
7. Remove three screws [2], and
remove the scanner motor assy [3].
8. Remove two screws [1], and remove
the scanner motor [2].
9. To r ei n st all , r eve rs e t h e o rde r of r em ova l.
5.4.29 DC power supply fan motor (FM5)
1. Remove four screws [1], and remove
the fan motor cover [2].
NOTE
•As the spring [4] attached to the
lock lever [3] comes off, take care
not to lose the spring.
A0XXF2E056DA
[2]
[1][3]
A0XXF2E057DA
[2]
[1]
A0XXF2E058DA
[1]
[2]
[3]
[4]

Konica Minolta BIZHUB 164 Specifications

General

Print Technology	Laser
Print Speed	16 ppm
Print Resolution	600 x 600 dpi
Copy Speed	16 cpm
Copy Resolution	600 x 600 dpi
Scan Resolution	600 x 600 dpi
Paper Capacity	250 sheets
Interface	USB 2.0
Warm-up Time	29 seconds
Paper Input Capacity	250 sheets
Memory	32 MB
Type	Monochrome
Maximum Paper Size	A3
Duplex Printing	Manual
Network Connectivity	No
USB Connectivity	Yes
Paper Size	A5
Fax Resolution	Not applicable
